Engine Wiring fit your 2011 Hyundai Santa Fe

Diagram (1 of 1): ENGINE WIRING

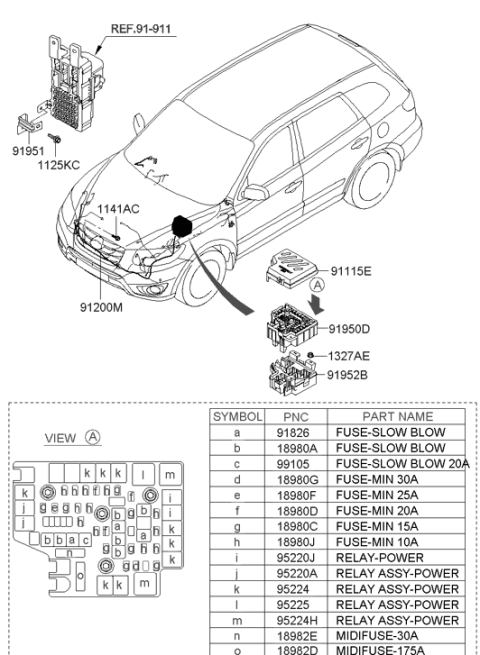

2011 Hyundai Santa Fe Engine Wiring Diagram
Enlarge Diagram
Sort by:
Part Description
Part Code
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • Bolt
    1141AC
    11413-06207-C
    Bolt
    • Fit Note: MODEL YEAR PACKAGE - 12MY
    • Production Date: 08/2010-07/2012
    • Require Quantity: 2
    • Package Quantity: 1
    $1.95 $1.47
    1
    Add To Cart
  • 1141AC Hyundai 11415-06167-B
    11415-06167-B
    Bolt
    • Fit Note: MODEL YEAR PACKAGE - 12MY
    • Production Date: 08/2010-07/2012
    • Require Quantity: 2
    • Package Quantity: 1
    $1.06 $0.80
    1
    Add To Cart
  • 1125KC
    11254-06203
    Bolt(W/Washer)
    • Fit Note: MODEL YEAR PACKAGE - 12MY
    • Require Quantity: 2
    • Package Quantity: 1
    $0.65 $0.49
    1
    Add To Cart
  • 1327AE Hyundai 13271-06007-B
    13271-06007-B
    Nut-Washer Assy
    • Fit Note: MODEL YEAR PACKAGE - 12MY
    • Require Quantity: 3
    • Package Quantity: 10
    • Replaced By: 65189-3M000
    $1.08 $0.82
    10
    Add To Cart
  • Wiring Assy-Fem
    91200M
    91845-0W010
    Wiring Assy-Fem
    • Fit Note: CONVENTIONAL - CLEAR LENS, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON, MODEL YEAR PACKAGE - 12MY
      CONVENTIONAL - CLEAR LENS, TYPE - SEPARATED TYPE, FR COOLER - MANUAL A/CON, MODEL YEAR PACKAGE - 12MY
      MODEL YEAR PACKAGE - 12MY, CONVENTIONAL - CLEAR LENS, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON
      MODEL YEAR PACKAGE - 12MY, CONVENTIONAL - CLEAR LENS, TYPE - SEPARATED TYPE, FR COOLER - MANUAL A/CON
    • Production Date: 08/2010-07/2012
    $985.16 $705.47
    1
    Add To Cart
  • 91200M
    91845-0W020
    Wiring Assy-Fem
    • Fit Note: CONVENTIONAL - CLEAR LENS, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON, MODEL YEAR PACKAGE - 12MY
      MODEL YEAR PACKAGE - 12MY, CONVENTIONAL - CLEAR LENS, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON
    • Production Date: 08/2010-06/2011
    • Replaced By: 91845-0W010
    $985.16 $705.47
    1
    Add To Cart
  • 91200M
    91845-0W050
    Wiring Assy-Fem
    • Fit Note: MODEL YEAR PACKAGE - 12MY, TYPE - SEPARATED TYPE, FR COOLER - MANUAL A/CON, CONVENTIONAL - CLEAR LENS
      TYPE - SEPARATED TYPE, FR COOLER - MANUAL A/CON, MODEL YEAR PACKAGE - 12MY, CONVENTIONAL - CLEAR LENS
    • Production Date: 08/2010-07/2012
    $949.37 $681.61
    1
    Add To Cart
Genuine Hyundai Parts, the Right Choice
HyundaiPartsDeal.com offers the wholesale prices for genuine 2011 Hyundai Santa Fe parts. Parts like Engine Wiring are shipped directly from authorized Hyundai dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: DOHC - MPI. Body: Wagon - 5Door 5P.
