Control Wiring fit your 2011 Hyundai Santa Fe

Diagram (1 of 1): CONTROL WIRING

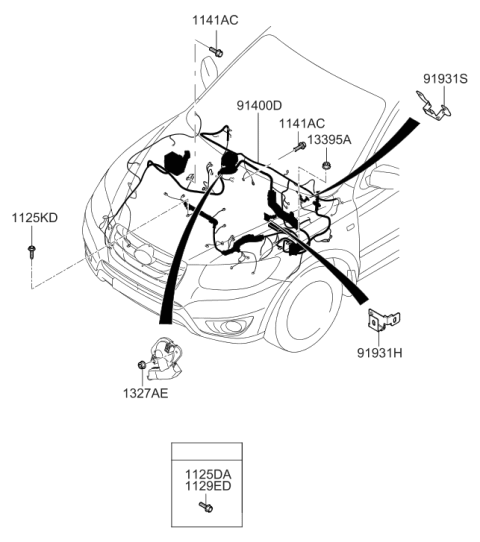

2011 Hyundai Santa Fe Control Wiring Diagram
Enlarge Diagram
Sort by:
Part Description
Part Code
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1125KD
    11254-06256-B
    Bolt
    • Fit Note: MODEL YEAR PACKAGE - 12MY
    • Replaced By: 11254-06256-K
    $0.68 $0.52
    10
    Add To Cart
  • Bolt
    1141AC
    11413-06207-C
    Bolt
    • Fit Note: MODEL YEAR PACKAGE - 12MY
    • Production Date: 08/2010-07/2012
    • Require Quantity: 6
    • Package Quantity: 1
    $1.95 $1.47
    1
    Add To Cart
  • 1141AC Hyundai 11415-06167-B
    11415-06167-B
    Bolt
    • Fit Note: MODEL YEAR PACKAGE - 12MY
    • Production Date: 08/2010-07/2012
    • Require Quantity: 6
    • Package Quantity: 1
    $1.06 $0.80
    1
    Add To Cart
  • 1141AC
    11415-06163
    Bolt
    • Fit Note: MODEL YEAR PACKAGE - 12MY
    • Fitting Vehicle Options: 2.4L Theta 2
    $0.79 $0.60
    1
    Add To Cart
  • 13395A Hyundai 13396-06007-B
    13396-06007-B
    Nut-Flange
    • Fit Note: MODEL YEAR PACKAGE - 12MY
    • Require Quantity: 2
    • Package Quantity: 1
    $0.85 $0.65
    1
    Add To Cart
  • 1327AE Hyundai 13271-06007-B
    13271-06007-B
    Nut-Washer Assy
    • Fit Note: MODEL YEAR PACKAGE - 12MY
    • Require Quantity: 3
    • Package Quantity: 10
    • Replaced By: 65189-3M000
    $1.08 $0.82
    10
    Add To Cart
  • Wiring Assy-Control
    91400D Hyundai 91405-0W030
    91405-0W030
    Wiring Assy-Control
    • Fit Note: NORTH AMERICA TYPE - FULL SYSTEM, W/ WIPER DEICER, AUTO CRUISE CONTROL - CONVENTIONAL, MODEL YEAR PACKAGE - 12MY
    • Production Date: 08/2010-07/2012
    • Fitting Vehicle Options: 3.5L Lambda 2.. 6AT 4WD
    $4603.87 $3219.76
    1
    Add To Cart
  • 91400D Hyundai 91405-0W040
    91405-0W040
    Wiring Assy-Control
    • Fit Note: NORTH AMERICA TYPE - FULL SYSTEM, W/ WIPER DEICER, AUTO CRUISE CONTROL - CONVENTIONAL, MODEL YEAR PACKAGE - 12MY
    • Production Date: 08/2010-07/2012
    • Fitting Vehicle Options: 3.5L Lambda 2.. 6AT 2WD
    $4816.29 $3368.32
    1
    Add To Cart
  • 91400D
    91405-0W070
    Wiring Assy-Control
    • Fit Note: NORTH AMERICA TYPE - WIRING ONLY, AUTO CRUISE CONTROL - CONVENTIONAL, MODEL YEAR PACKAGE - 12MY, W/ WIPER DEICER
    • Production Date: 08/2010-07/2012
    • Fitting Vehicle Options: 3.5L Lambda 2.. 6AT 4WD
    $4603.87 $3296.83
    1
    Add To Cart
  • 91400D
    91405-0W080
    Wiring Assy-Control
    • Fit Note: NORTH AMERICA TYPE - WIRING ONLY, AUTO CRUISE CONTROL - CONVENTIONAL, MODEL YEAR PACKAGE - 12MY, W/ WIPER DEICER
    • Production Date: 08/2010-07/2012
    • Fitting Vehicle Options: 3.5L Lambda 2.. 6AT 2WD
    $4084.73 $2925.07
    1
    Add To Cart
  • 91400D
    91406-0W030
    Wiring Assy-Control
    • Fit Note: MODEL YEAR PACKAGE - 12MY, NORTH AMERICA TYPE - FULL SYSTEM, W/ WIPER DEICER, AUTO CRUISE CONTROL - CONVENTIONAL
    • Production Date: 04/2011-07/2012
    • Fitting Vehicle Options: 3.5L Lambda 2.. 6AT 4WD
    $4467.26 $3199.00
    1
    Add To Cart
  • 91400D
    91406-0W040
    Wiring Assy-Control
    • Fit Note: MODEL YEAR PACKAGE - 12MY, NORTH AMERICA TYPE - FULL SYSTEM, W/ WIPER DEICER, AUTO CRUISE CONTROL - CONVENTIONAL
    • Production Date: 04/2011-07/2012
    • Fitting Vehicle Options: 3.5L Lambda 2.. 6AT 2WD
    $4687.42 $3356.66
    1
    Add To Cart
  • 91400D
    91406-0W070
    Wiring Assy-Control
    • Fit Note: MODEL YEAR PACKAGE - 12MY, NORTH AMERICA TYPE - WIRING ONLY, AUTO CRUISE CONTROL - CONVENTIONAL, W/ WIPER DEICER
    • Production Date: 04/2011-07/2012
    • Fitting Vehicle Options: 3.5L Lambda 2.. 6AT 4WD
    $4158.65 $2978.01
    1
    Add To Cart
  • 91400D
    91406-0W080
    Wiring Assy-Control
    • Fit Note: MODEL YEAR PACKAGE - 12MY, NORTH AMERICA TYPE - WIRING ONLY, AUTO CRUISE CONTROL - CONVENTIONAL, W/ WIPER DEICER
    • Production Date: 04/2011-07/2012
    • Fitting Vehicle Options: 3.5L Lambda 2.. 6AT 2WD
    $3975.76 $2847.04
    1
    Add To Cart
  • 91400D
    91415-0W020
    Wiring Assy-Control
    • Fit Note: NORTH AMERICA TYPE - WIRING ONLY, ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, MODEL YEAR PACKAGE - 12MY
    • Production Date: 08/2010-07/2012
    • Fitting Vehicle Options: 2.4L Theta 2.. 6AT 2WD
    $5058.60 $3622.46
    1
    Add To Cart
  • 91400D Hyundai 91415-0W040
    91415-0W040
    Wiring Assy-Control
    • Fit Note: NORTH AMERICA TYPE - WIRING ONLY, ESC (ELECTRONIC STABILITY CONTROL), MODEL YEAR PACKAGE - 12MY, W/ WIPER DEICER
    • Fitting Vehicle Options: 2.4L Theta 2.. 6MT 2WD
    $4290.23 $3000.41
    1
    Add To Cart
  • 91400D Hyundai 91415-0W050
    91415-0W050
    Wiring Assy-Control
    • Fit Note: NORTH AMERICA TYPE - WIRING ONLY, ESC (ELECTRONIC STABILITY CONTROL), MODEL YEAR PACKAGE - 12MY, W/ WIPER DEICER
    • Production Date: 08/2010-07/2012
    • Fitting Vehicle Options: 2.4L Theta 2.. 6AT 2WD
    $5058.60 $3537.78
    1
    Add To Cart
  • 91400D Hyundai 91415-0W060
    91415-0W060
    Wiring Assy-Control
    • Fit Note: NORTH AMERICA TYPE - WIRING ONLY, ESC (ELECTRONIC STABILITY CONTROL), MODEL YEAR PACKAGE - 12MY, W/ WIPER DEICER
    • Production Date: 08/2010-06/2012
    • Fitting Vehicle Options: 2.4L Theta 2.. 6AT 4WD
    $5058.60 $3537.78
    1
    Add To Cart
  • 91400D
    91416-0W020
    Wiring Assy-Control
    • Fit Note: MODEL YEAR PACKAGE - 12MY, NORTH AMERICA TYPE - FULL SYSTEM, ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER
      MODEL YEAR PACKAGE - 12MY, NORTH AMERICA TYPE - WIRING ONLY, ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER
    • Production Date: 04/2011-07/2012
    • Fitting Vehicle Options: 2.4L Theta 2.. 6AT 2WD
    $4084.73 $2925.07
    1
    Add To Cart
  • 91400D
    91416-0W050
    Wiring Assy-Control
    • Fit Note: MODEL YEAR PACKAGE - 12MY, NORTH AMERICA TYPE - WIRING ONLY, ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER
    • Production Date: 04/2011-07/2012
    • Fitting Vehicle Options: 2.4L Theta 2.. 6AT 2WD
    $4309.15 $3085.78
    1
    Add To Cart
  • 91400D
    91416-0W060
    Wiring Assy-Control
    • Fit Note: MODEL YEAR PACKAGE - 12MY, NORTH AMERICA TYPE - WIRING ONLY, ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER
    • Production Date: 04/2011-06/2012
    • Fitting Vehicle Options: 2.4L Theta 2.. 6AT 4WD
    $3823.58 $2738.07
    1
    Add To Cart
Genuine Hyundai Parts, the Right Choice
HyundaiPartsDeal.com offers the wholesale prices for genuine 2011 Hyundai Santa Fe parts. Parts like Control Wiring are shipped directly from authorized Hyundai dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: DOHC - MPI. Body: Wagon - 5Door 5P.
