Main Wiring fit your 2005 Hyundai Sonata New Body Style (US)

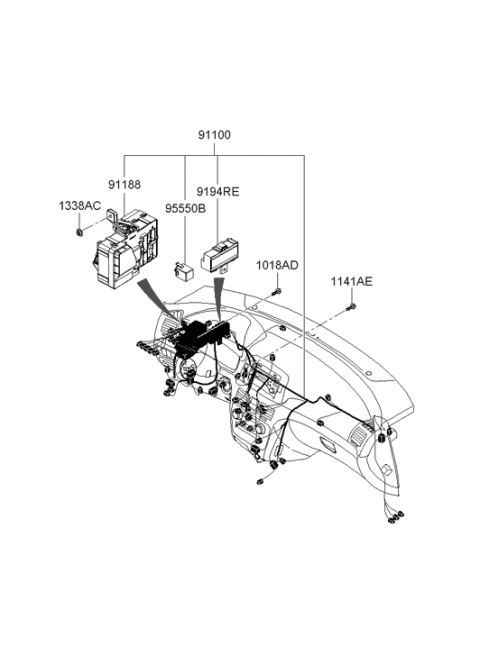

Diagram (1 of 1): MAIN WIRING
2005 Hyundai Sonata Main Wiring Diagram
Enlarge Diagram
Sort by:
Part Description
Part Code
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1141AE Hyundai 11415-06143
    11415-06143
    Bolt
    • Require Quantity: 004
    • Package Quantity: 1
    $1.06 $0.80
    1
    Add To Cart

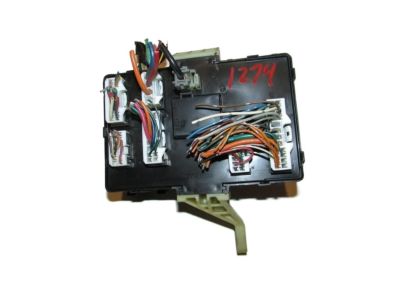

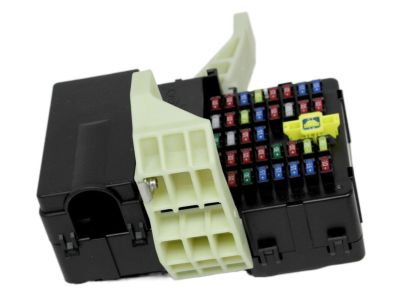

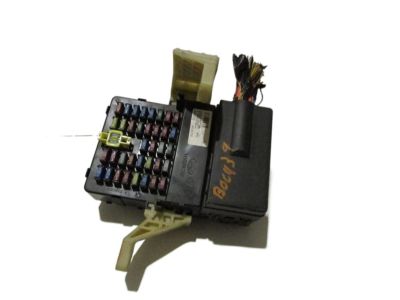

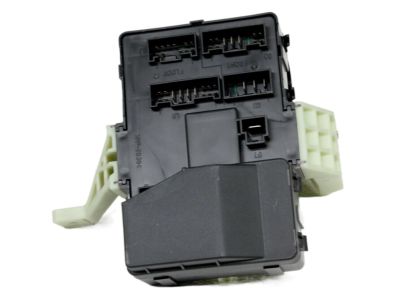

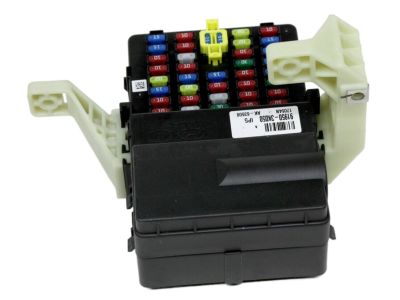

  • Junction Box Assy-I/Panel
    91188 Hyundai 91950-3K010
    91950-3K010
    Junction Box Assy-I/Panel
    • Fit Note: ESP(ELECTRONIC STABILITY PRM), AIR CON
    • Fitting Vehicle Options: Middle Grade.. 4AT 2WD
    $553.84 $390.77
    1
    Add To Cart
  • 91188
    91950-3K050
    Junction Box Assy-I/Panel
    • Fit Note: ESP(ELECTRONIC STABILITY PRM), AIR CON
    • Fitting Vehicle Options: High Grade.. 3.3L, Middle Grade.. 5MT 2WD, Middle Grade.. 2.4L.. .. 4AT 2WD
    $812.76 $573.45
    1
    Add To Cart
  • 1338AC
    13385-06001
    Nut-Flange
    • Require Quantity: 009
    • Package Quantity: 1
    • Replaced By: 13385-06003
    $0.35 $0.27
    1
    Add To Cart

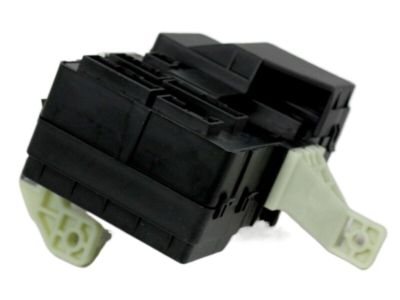

  • Relay Box-Main
    9194RE Hyundai 91940-3K040
    91940-3K040
    Relay Box-Main
    • Fit Note: ADJUSTABLE(ACCEL & BRAKE), AIR CON-FULL AUTO
      ADJUSTABLE(ACCEL & BRAKE), ESP(ELECTRONIC STABILITY PRM), AIR CON-FULL AUTO
    • Fitting Vehicle Options: High Grade.. 3.3L
    $89.35 $65.10
    1
    Add To Cart

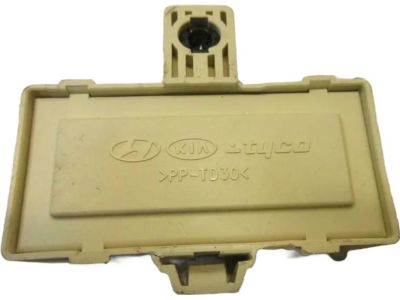

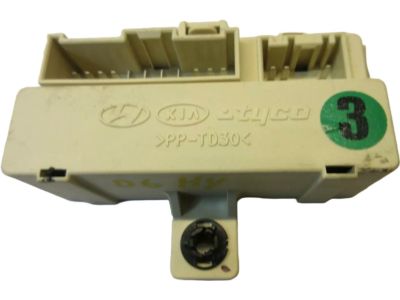

  • 9194RE Hyundai 91940-3K050
    91940-3K050
    Relay Box-Main
    • Fit Note: AIR CON
      AIR CON-FULL AUTO
      ESP(ELECTRONIC STABILITY PRM), AIR CON
      ESP(ELECTRONIC STABILITY PRM), AIR CON-FULL AUTO
    • Fitting Vehicle Options: High Grade.. 2.4L, High Grade.. 3.3L, Middle Grade, Middle Grade.. 4AT 2WD
    • Replaced By: 91940-3K040
    $89.35 $65.10
    1
    Add To Cart
  • Wiring Assy-Main
    91100
    91100-0A381
    Wiring Assy-Main
    • Fit Note: ADJUSTABLE(ACCEL & BRAKE), ESP(ELECTRONIC STABILITY PRM), AIR CON-FULL AUTO
    • Production Date: 04/2005-12/2006
    • Fitting Vehicle Options: High Grade.. 3.3L
  • 91100
    91100-0A441
    Wiring Assy-Main
    • Fit Note: ADJUSTABLE(ACCEL & BRAKE), AIR CON-FULL AUTO
    • Production Date: 04/2005-12/2006
    • Fitting Vehicle Options: High Grade.. 3.3L
  • 91100
    91100-0A451
    Wiring Assy-Main
    • Fit Note: ESP(ELECTRONIC STABILITY PRM), TIRE AIR PRESSURE WARN'G, ANTENNA-SDARS, AIR CON
    • Production Date: 05/2006-12/2006
    • Fitting Vehicle Options: High Grade.. 3.3L, Middle Grade.. 4AT 2WD
    $3261.45 $2335.53
    1
    Add To Cart
  • 91100
    91100-0A461
    Wiring Assy-Main
    • Fit Note: ESP(ELECTRONIC STABILITY PRM), TIRE AIR PRESSURE WARN'G, ANTENNA-SDARS, AIR CON-FULL AUTO
    • Production Date: 08/2006-12/2006
    • Fitting Vehicle Options: High Grade.. 3.3L
  • 91100
    91100-0A500
    Wiring Assy-Main
    • Fit Note: ESP(ELECTRONIC STABILITY PRM), AIR CON-FULL AUTO
    • Production Date: 04/2005-12/2006
    • Fitting Vehicle Options: High Grade.. 3.3L
    $3677.02 $2633.11
    1
    Add To Cart
  • 91100
    91100-0A560
    Wiring Assy-Main
    • Fit Note: AIR CON-FULL AUTO
    • Production Date: 04/2005-12/2006
    • Fitting Vehicle Options: High Grade.. 3.3L
    $424.48 $307.39
    1
    Add To Cart
  • 91100
    91100-0A620
    Wiring Assy-Main
    • Fit Note: ESP(ELECTRONIC STABILITY PRM), AIR CON
    • Fitting Vehicle Options: High Grade.. 2.4L, High Grade.. 3.3L, Middle Grade.. 4AT 2WD
    $3288.89 $2300.12
    1
    Add To Cart
  • 91100
    91100-0A641
    Wiring Assy-Main
    • Fit Note: AIR CON
    • Production Date: 04/2005-12/2006
    • Fitting Vehicle Options: High Grade.. 3.3L, Middle Grade.. 4AT 2WD
    $3132.29 $2243.03
    1
    Add To Cart
  • 91100
    91102-0A200
    Wiring Assy-Main
    • Fit Note: ESP(ELECTRONIC STABILITY PRM), AIR CON
    • Production Date: 10/2005-12/2006
    • Fitting Vehicle Options: Middle Grade.. 5MT 2WD
    $2900.81 $2028.71
    1
    Add To Cart
  • 91100
    91102-0A211
    Wiring Assy-Main
    • Fit Note: ESP(ELECTRONIC STABILITY PRM), TIRE AIR PRESSURE WARN'G, ANTENNA-SDARS, AIR CON
    • Production Date: 05/2006-12/2006
    • Fitting Vehicle Options: Middle Grade.. 5MT 2WD
    $2900.81 $2077.27
    1
    Add To Cart
Genuine Hyundai Parts, the Right Choice
HyundaiPartsDeal.com offers the wholesale prices for genuine 2005 Hyundai Sonata New Body Style (US) parts. Parts like Main Wiring are shipped directly from authorized Hyundai dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Body: 4 Door Sedan.
