Camshaft & Valve fit your 2004 Hyundai Sonata
Currently shopping for
2004 Hyundai Sonata
Change VehicleVehicle Options
4 Door Sedan; MPI-DOHCVehicle Options
4 Door Sedan; MPI-DOHCCategories Close X
Currently selected
Engine
- Accelerator Linkage
- Air Cleaner
- Balancer Belt Train
- Battery
- Belt Cover & Oil Pan
- Camshaft & Valve
- Clutch & Brake Pedal
- Coolant Hose & Pipe
- Coolant Pump
- Crankshaft & Piston
- Cylinder Block
- Cylinder Head
- Electronic Control
- Engine & Transaxle Mounting
- Engine Gasket Kit
- Exhaust Manifold
- Front Case
- Fuel Line
- Fuel Tank
- Generator
- Intake Manifold
- Mud Gaurd
- Muffler & Exhaust Pipe
- OVM Tool
- Oil Cooling
- Radiator Hose & Reservoir Tank
- Rocker Cover
- Short Engine Assy
- Spark Plug & Cable
- Starter Motor
- Sub Engine Assy
- Throttle Body & Injector
Other Categories
Body
Chassis
Electrical
Transmission
Trim
Parts Questions
3 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
- 1.CAMSHAFT & VALVE (01/03)

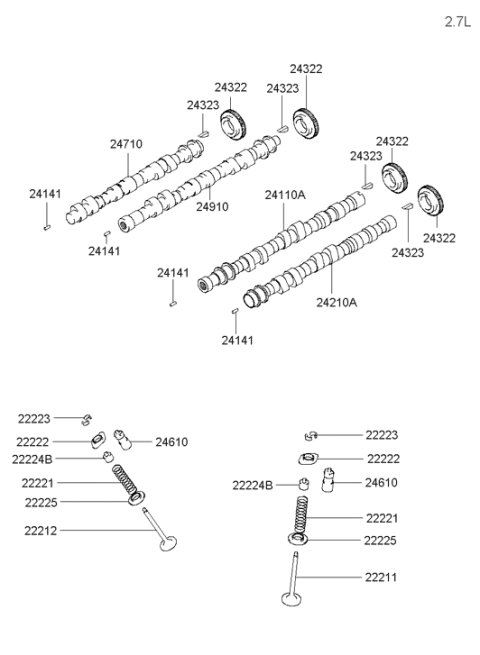

- 2.CAMSHAFT & VALVE (02/03)

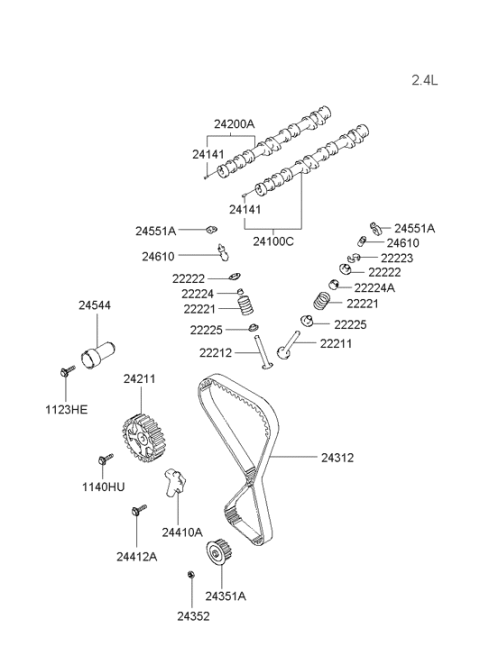

- 3.CAMSHAFT & VALVE (03/03)
Sort by:
Part Description
Part Code
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- Adjuster Assy-Rocker Arm Lash24610
22231-37110
Adjuster Assy-Rocker Arm Lash- Production Date: 06/2001-03/2005
- Fitting Vehicle Options: 2.7L
- Require Quantity: 024
- Package Quantity: 1
- Replaced By: 22231-37100
$27.37 $20.871 - 24610
22231-37100
Adjuster Assy-Rocker Arm Lash- Production Date: 06/2001-03/2005
- Fitting Vehicle Options: 2.7L
$27.37 $20.671 - 24610
24610-33020
Adjuster Assy-Rocker Arm Lash- Production Date: 06/2001-03/2003
- Fitting Vehicle Options: 2.4L
- Require Quantity: 016
- Package Quantity: 1
- Replaced By: 24610-33050
$28.24 $21.541 - 2461024610-33050
Adjuster Assy-Rocker Arm Lash- Production Date: 06/2001-03/2005
- Fitting Vehicle Options: 2.4L
$28.24 $21.331 - 2461024610-33050
Adjuster Assy-Rocker Arm Lash- Production Date: 03/2003-03/2005
- Fitting Vehicle Options: 2.4L
- Require Quantity: 016
- Package Quantity: 1
$28.24 $21.331
- Arm Assy-Tensioner24840
$138.74 $101.071 - 24840
$138.74 $98.751
- Belt-Valve Timing24312
$142.27 $101.271 - 24312
$142.27 $103.651 - 2431224312-38210
Belt-Valve Timing- Production Date: 06/2001-07/2002
- Fitting Vehicle Options: 2.4L
- Replaced By: 24312-38220
$129.37 $94.251 - 24312
$129.37 $92.081
- 1123HE
$1.79 $1.371
- Bolt1129GG
$2.10 $1.601 - 1129GG
$2.10 $1.601
- Bolt1140HM
$2.11 $1.611 - 1140HM
$2.11 $1.611
- Bolt1140HU
11404-12301
Bolt- Production Date: 06/2001-03/2002
- Require Quantity: 002
- Package Quantity: 1
- Replaced By: 11404-12303
$4.11 $3.141 - 1140HU
$4.11 $3.141
- Bolt24412A
$2.26 $1.721 - 24412A
$2.10 $1.601
- 24431A
$1.06 $0.811
- 1123GG
$0.68 $0.511
- 24100A24100-37201
Camshaft Assy
- 24200A
$396.65 $282.321
- 24100C
$621.08 $438.211
- Camshaft-Exhaust, LH24210A
$311.05 $221.391 - 24210A24210-37211
Camshaft-Exhaust, LH- Location: Driver Side
- Production Date: 06/2001-03/2005
- Replaced By: 24210-37201
$311.05 $225.251
- Camshaft-Exhaust, RH24710
$340.08 $242.061 - 24710
24710-37211
Camshaft-Exhaust, RH- Location: Passenger Side
- Production Date: 06/2001-03/2005
- Replaced By: 24710-37201
$340.08 $246.271
- Camshaft-Intake, LH24110A
$370.05 $263.391 - 24110A24110-37201
Camshaft-Intake, LH- Location: Driver Side
- Production Date: 06/2001-03/2005
- Replaced By: 24110-37211
$370.05 $267.971
- Camshaft-Intake, RH24910
24910-37201
Camshaft-Intake, RH- Location: Passenger Side
- Production Date: 06/2001-03/2005
- Replaced By: 24910-37211
$345.13 $249.931 - 24910$345.13 $245.651
- 24321
$46.10 $33.101
- 24544
$31.16 $23.761
- 24431B
$7.26 $5.481
- 24432A
$11.58 $8.751
- Key-Chain Sprocket24323
$2.95 $2.251 - 24323
$2.95 $2.251
- Lock-Valve Spring Retainer22223
22223-22001
Lock-Valve Spring Retainer- Fitting Vehicle Options: 2.7L
- Require Quantity: 048
- Package Quantity: 1
$2.21 $1.671 - 22223
$0.85 $0.651 - 22223
22223-21000
Lock-Valve Spring Retainer- Production Date: 06/2001-03/2005
- Fitting Vehicle Options: 2.4L
- Require Quantity: 032
- Package Quantity: 1
- Replaced By: 22223-21004
$0.85 $0.651
- 24352
$0.76 $0.581
- Pin-Dowel24141
$0.73 $0.551 - 24141$0.76 $0.581
- Pulley-Idler24810
$57.79 $41.491 - 24810
$57.79 $42.921
- Retainer-Valve Spring22222
22222-26000
Retainer-Valve Spring- Fitting Vehicle Options: 2.7L
- Require Quantity: 024
- Package Quantity: 1
$3.92 $2.961 - 22222
22222-38000
Retainer-Valve Spring- Fitting Vehicle Options: 2.4L
- Require Quantity: 016
- Package Quantity: 1
$5.77 $4.361
- 24551A
$19.50 $14.871
- Seal-Valve Stem22224B
22224-22000
Seal-Valve Stem- Production Date: 06/2001-02/2002
- Require Quantity: 024
- Package Quantity: 1
- Replaced By: 22224-23500
$4.85 $3.611 - 22224B
$4.85 $3.611
- 22224C
$6.15 $4.641
- 22224A
$5.11 $3.861
- 22224$6.15 $4.641
- Seat-Valve Spring22225
$0.71 $0.541 - 22225
$0.74 $0.561
- 24821
$14.76 $11.141
- Spring-Valve22221
$8.87 $6.701 - 22221$10.00 $7.551
- Sprocket-Camshaft24211
$80.63 $57.891 - 24211
$58.29 $41.851
- 24351A
$16.05 $12.121
- 24322
$33.16 $23.811
- Tensioner-Pulley24450
$78.03 $56.021 - 24450$78.03 $57.961
- Tensioner-Timing Belt Auto24410A
$200.34 $142.591 - 24410A
$200.34 $142.591
- Valve-Exhaust22212
$27.29 $20.611 - 22212$26.35 $19.901
- Valve-Intake22211
$22.77 $17.201 - 22211$20.40 $15.561
- 24831
$1.08 $0.821
Genuine Hyundai Parts, the Right Choice
HyundaiPartsDeal.com offers the wholesale prices for genuine 2004 Hyundai Sonata parts. Parts like Camshaft & Valve are shipped directly from authorized Hyundai dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Body: 4 Door Sedan.
