How to remove, inspect, and insatall the cylinder head on V6 Hyundai Santa Fe?

Before trying to remove the cylinder head, one has to release the fuel system pressure and hold the end of the cable from the negative terminal of the battery. Lower the car and remove the plastic skirt around the engine area and seiously disconnect the engine-cooling system radiator hose and turn off the water circulation pump. Then unbolt the upper and lower intake manifolds, and then exhaust manifold(s); the latter can be left temporarily bolted to the cylinder heads if wanted. Pull out spark plugs and spark plug wires and detach all other sensors and hoses producing a limitation to the spark plug removal process. On 2.7L and 2007 and earlier 3.5L engines, the timing belt must be removed; for 3.3L and 2010 and later 3.5L engines the timing chains should be removed. Continue with the camshafts' extraction, and then slacken the cylinder head bolts by 1/4 turn at a time until they can be fully unbolted, together with their accompanying metal liners, in the reverse of the installation pattern recommended earlier. Remove the cylinder head off the engine block by gently raising it, one side at a time with the aid of a wood block and a hammer but ensure the gasket surfaces are not marred in the process. Place the cylinder head on some woods to avoid scratching and if in doubt, do the same with another head. For measurement, place a scale on the head top and bottom to compare the thickness of both surfaces, making sure that no portion of the gasket is larger than the maximum allowance determined at the beginning of the inspection, combined with scrutinizing for cracks and coolant leakage at the valve seats. Before assembly of both the head and the block, make sure the areas where the two will be mating are clean and make use of gasket scraper and brake system cleaner to remove the carbon and old gasket. To prevent material from getting into the cylinders, the cylinders must be packed with clean shop rags besides using a vacuum cleaner to suck any material trapped in the cylinders. Inspect the block and head mating surfaces for nicks and scratches and remove the rough metal with an file but in a case where the damage is bad you may need to machine it. Thread the boltholes in the cylinder head with a tap, and blow the debris out with compressed air. In case of 2.7L and 3.5 L (2007 and earlier) engines, fit each bolt in a vise and running die on threads to remove corrosion or to restore them, whereas all the head bolts on 3.3L V6 engines are best replaced with the new one. Place the new gaskets over the dowel pins in the block with the identification mark going upward but it is worthy to place a drop of RTV sealant to each end of each of the gasket legs. For 3.3L and 3.5L (2010 and later) V6 engines, the last step is to 'paint' the head gasket end with 3 mm RTV sealant on the engine block before the gaskets are inserted. Place the head gently on the block but do not touch the gasket, and put clean engine oil on the thread and upside of the bolt head Delete and insert the bolts and turn them by hand tightly according to the torque sequence. The rest of the installation is performed in the reverse of the removal process, to which should be added the refilling of the cooling system, changing of the oil and filter, running of the engine and inspection for any signs of leakage.

Genuine Hyundai Santa Fe Cylinder Head

Head

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

34 Cylinder Heads found

View related parts

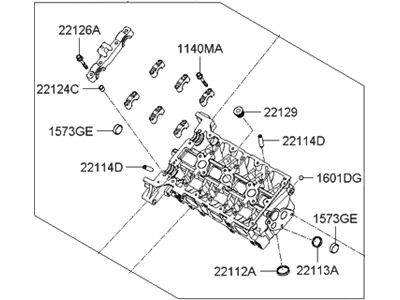

Hyundai Santa Fe Head Assembly-Cylinder
Part Number: 22100-38105
$1137.10 MSRP: $1625.92
You Save: $488.82 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Head
- Replaces: 22100-38103, 22100-38104
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2000-2006 Hyundai Santa Fe | High Grade, Middle Grade | 5 Door Wagon
View related parts
Hyundai Santa Fe Head Assembly-Cylinder
Part Number: 22100-2GGB5
$650.40 MSRP: $921.82
You Save: $271.42 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Head
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2019-2020 Hyundai Santa Fe | DOHC - GDI | Wagon - 5Door 5P
View related parts
Hyundai Santa Fe Head Assembly-Cylinder
Part Number: 22100-2GTA5
$658.53 MSRP: $933.34
You Save: $274.81 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Head
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2019-2020 Hyundai Santa Fe | DOHC - TCI/GDI | Wagon - 5Door 5P
View related parts

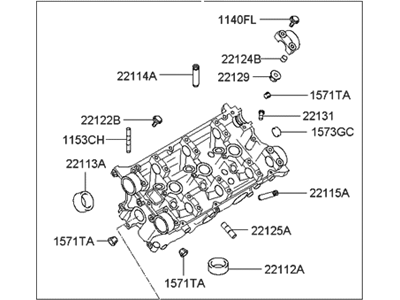

Hyundai Santa Fe Head Sub Assembly-Cylinder, RH
Part Number: 517R5-3CA00
$1266.95 MSRP: $1811.58
You Save: $544.63 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Head
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2013-2018 Hyundai Santa Fe | DOHC - GDI | Wagon - Long 5Door 6P, Wagon - Long 5Door 7P
View related parts

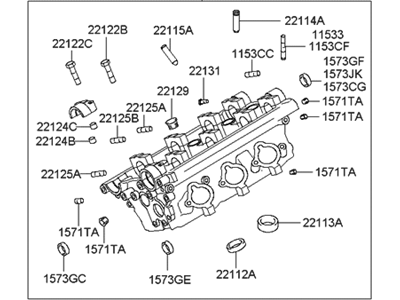

Hyundai Santa Fe Head Sub Assembly-Cylinder, LH
Part Number: 516R5-3CA00
$1599.05 MSRP: $2286.45
You Save: $687.40 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Head
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2013-2018 Hyundai Santa Fe | DOHC - GDI | Wagon - Long 5Door 6P, Wagon - Long 5Door 7P
View related parts
Hyundai Santa Fe Head Sub Assembly-Cylinder, RH
Part Number: 22110-3CGB1
$1462.91 MSRP: $2042.89
You Save: $579.98 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2013-2018 Hyundai Santa Fe | DOHC - GDI | Wagon - Long 5Door 6P, Wagon - Long 5Door 7P
View related parts

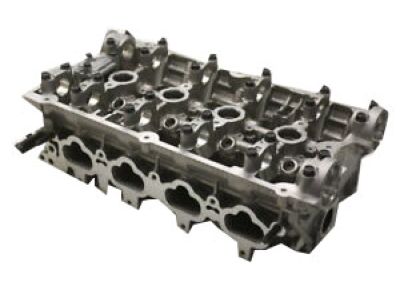

Hyundai Santa Fe Head Assembly-Cylinder
Part Number: 22100-2G020
$1005.98 MSRP: $1438.44
You Save: $432.46 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Head
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2009-2012 Hyundai Santa Fe | DOHC - MPI | Wagon - 5Door 5P
View related parts

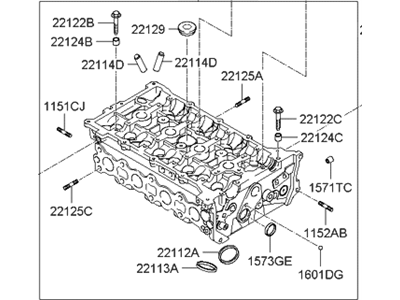

Hyundai Santa Fe Head Assembly-Cylinder,RH
Part Number: 22100-3E052
$842.27 MSRP: $1204.34
You Save: $362.07 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Head
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2007-2009 Hyundai Santa Fe | DOHC - MPI | Wagon - 5Door 5P
View related parts
Hyundai Santa Fe Head Sub Assembly-Cylinder, LH
Part Number: 521R5-3CA00
$1007.98 MSRP: $1441.29
You Save: $433.31 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Head
- Position: Driver Side
- Replaces: 510G5-3CU00
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2007-2009 Hyundai Santa Fe | DOHC - MPI | Wagon - 5Door 5P, Wagon - 5Door 7P
View related parts

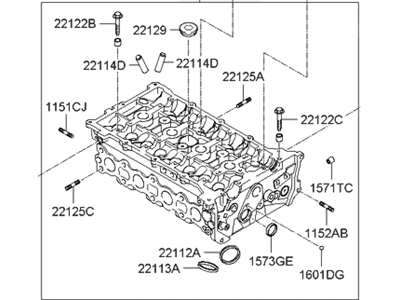

Hyundai Santa Fe Head Sub Assembly-Cylinder, RH
Part Number: 531R5-3CA00
$1007.98 MSRP: $1441.29
You Save: $433.31 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Head
- Position: Passenger Side
- Replaces: 22110-3C200, 22100-3C200, 511G5-3CU00, 22110-3C210
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2006-2009 Hyundai Santa Fe | High Grade, Middle Grade | DOHC - MPI | 5 Door Wagon, 5 Door Wagon 7, Wagon - 5Door 5P, Wagon - 5Door 7P
View related parts
Hyundai Santa Fe Head Sub Assembly-Cylinder, LH
Part Number: 503R5-3CA00
$1303.47 MSRP: $1863.81
You Save: $560.34 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Head
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2009-2012 Hyundai Santa Fe | DOHC - MPI | Wagon - 5Door 5P
View related parts
Hyundai Santa Fe Head Sub Assembly-Cylinder, LH
Part Number: 22110-3CGC1
$1462.91 MSRP: $2042.89
You Save: $579.98 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2013-2018 Hyundai Santa Fe | DOHC - GDI | Wagon - Long 5Door 6P, Wagon - Long 5Door 7P
View related parts
Hyundai Santa Fe Head Assembly-Cylinder
Part Number: 22100-2G120
$916.43 MSRP: $1279.76
You Save: $363.33 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2011-2012 Hyundai Santa Fe | DOHC - MPI | Wagon - 5Door 5P
View related parts

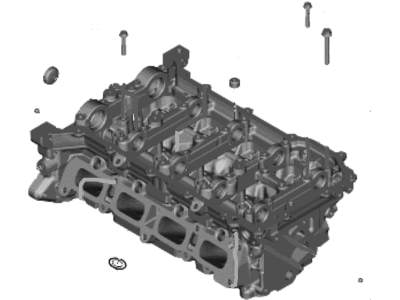

Hyundai Santa Fe Head Sub Assembly-Cylinder
Part Number: 342L5-2SK00
$689.70 MSRP: $986.19
You Save: $296.49 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Head
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2021-2023 Hyundai Santa Fe | DOHC - GDI | Wagon - 5Door 5P
View related parts
Hyundai Santa Fe HEAD SUB ASSY-CYLINDER
Part Number: 442L5-2SK00
$667.97 MSRP: $946.72
You Save: $278.75 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Head
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2021-2023 Hyundai Santa Fe | DOHC - TCI/GDI | Wagon - 5Door 5P
View related parts
Hyundai Santa Fe Head Assembly-Cylinder,LH
Part Number: 22100-3E002
$842.27 MSRP: $1204.34
You Save: $362.07 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Head
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2007-2009 Hyundai Santa Fe | DOHC - MPI | Wagon - 5Door 5P
View related parts
Hyundai Santa Fe Head Assembly-Cylinder,LH
Part Number: 22100-372A0
$845.45 MSRP: $1208.89
You Save: $363.44 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Head
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2000-2006 Hyundai Santa Fe | High Grade, Middle Grade | 5 Door Wagon
View related parts
Hyundai Santa Fe Head Assembly-Cylinder,RH
Part Number: 22100-372B0
$845.45 MSRP: $1208.89
You Save: $363.44 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Head
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2000-2006 Hyundai Santa Fe | High Grade, Middle Grade | 5 Door Wagon
View related parts
Hyundai Santa Fe Head Sub Assembly-Cylinder, RH
Part Number: 22110-3C200
$1032.11 MSRP: $1441.29
You Save: $409.18 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Position: Passenger Side
- Replaced by: 531R5-3CA00
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2006-2009 Hyundai Santa Fe | High Grade, Middle Grade | DOHC - MPI | 5 Door Wagon, 5 Door Wagon 7, Wagon - 5Door 5P, Wagon - 5Door 7P
View related parts
Hyundai Santa Fe Head Assembly-Cylinder
Part Number: 22100-39000
$1139.48 MSRP: $1629.32
You Save: $489.84 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Head
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2000-2006 Hyundai Santa Fe | High Grade, Middle Grade | 5 Door Wagon

| Page 1 of 2 |Next >

1-20 of 34 Results

Hyundai Santa Fe Cylinder Head

If you are looking for affordable high-quality OEM Hyundai Santa Fe Cylinder Head, then you have come to the prime place. Our website provides a large amount of genuine Hyundai Santa Fe Cylinder Head at unbeatable prices. All our parts come backed with the manufacturer's warranty.

Hyundai Santa Fe Cylinder Head Parts Questions & Experts Answers

Head Assembly-Cylinder
22100-38105
Q: How to remove, inspect, and insatall the cylinder head on V6 Hyundai Santa Fe?
A: Before trying to remove the cylinder head, one has to release the fuel system pressure and hold the end of the cable from the negative terminal of the battery. Lower the car and remove the plastic skirt around the engine area and seiously disconnect the engine-cooling system radiator hose and turn off the water circulation pump. Then unbolt the upper and lower intake manifolds, and then exhaust manifold(s); the latter can be left temporarily bolted to the cylinder heads if wanted. Pull out spark plugs and spark plug wires and detach all other sensors and hoses producing a limitation to the spark plug removal process. On 2.7L and 2007 and earlier 3.5L engines, the Timing Belt must be removed; for 3.3L and 2010 and later 3.5L engines the timing chains should be removed. Continue with the camshafts' extraction, and then slacken the cylinder head bolts by 1/4 turn at a time until they can be fully unbolted, together with their accompanying metal liners, in the reverse of the installation pattern recommended earlier. Remove the cylinder head off the engine block by gently raising it, one side at a time with the aid of a wood block and a hammer but ensure the gasket surfaces are not marred in the process. Place the cylinder head on some woods to avoid scratching and if in doubt, do the same with another head. For measurement, place a scale on the head top and bottom to compare the thickness of both surfaces, making sure that no portion of the gasket is larger than the maximum allowance determined at the beginning of the inspection, combined with scrutinizing for cracks and coolant leakage at the valve seats. Before assembly of both the head and the block, make sure the areas where the two will be mating are clean and make use of gasket scraper and brake system cleaner to remove the carbon and old gasket. To prevent material from getting into the cylinders, the cylinders must be packed with clean shop rags besides using a vacuum cleaner to suck any material trapped in the cylinders. Inspect the block and head mating surfaces for nicks and scratches and remove the rough metal with an file but in a case where the damage is bad you may need to machine it. Thread the boltholes in the cylinder head with a tap, and blow the debris out with compressed air. In case of 2.7L and 3.5 L (2007 and earlier) engines, fit each bolt in a vise and running die on threads to remove corrosion or to restore them, whereas all the head bolts on 3.3L V6 engines are best replaced with the new one. Place the new gaskets over the dowel pins in the block with the identification mark going upward but it is worthy to place a drop of RTV sealant to each end of each of the gasket legs. For 3.3L and 3.5L (2010 and later) V6 engines, the last step is to 'paint' the head gasket end with 3 mm RTV sealant on the engine block before the gaskets are inserted. Place the head gently on the block but do not touch the gasket, and put clean engine oil on the thread and upside of the bolt head Delete and insert the bolts and turn them by hand tightly according to the torque sequence. The rest of the installation is performed in the reverse of the removal process, to which should be added the refilling of the cooling system, changing of the oil and filter, running of the engine and inspection for any signs of leakage.
