Air conditioning System-Cooler Line fit your 2023 Hyundai Kona Electric
Currently shopping for
2023 Hyundai Kona Electric
Change VehicleVehicle Options
Wagon - 5Door 5P; Motor - 150KW; Electric; Electric; DeceleratorVehicle Options
Wagon - 5Door 5P; Motor - 150KW; Electric; Electric; DeceleratorCategories Close X
Currently selected
Electrical
- Air conditioning System-Cooler Line
- Antenna
- Audio
- Control Wiring
- Door Wiring
- Floor Wiring
- Front Wiring
- Head Lamp
- Heater System-Duct & Hose
- Heater System-Heater & Blower
- Heater System-Heater Control
- Horn
- Information System
- Instrument Cluster
- Main Wiring
- Miscellaneous Wiring
- Multifunction Switch
- Rear Combination Lamp
- Rear Wiper & Washer
- Relay & Module
- Room Lamp
- Speaker
- Switch
- Windshield Washer
- Windshield Wiper
Other Categories
Body
Chassis
Motor
Trim
Accessories
Parts Questions
2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

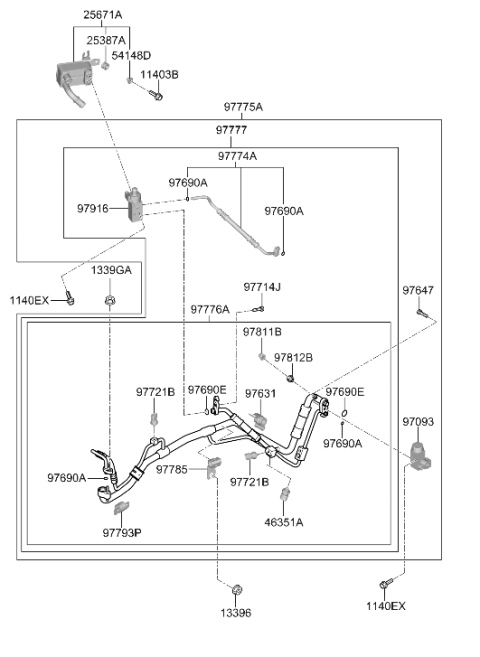

- 1.AIRCON SYSTEM-COOLER LINE (01/02)

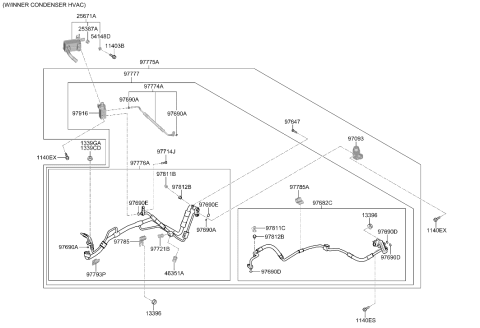

- 2.AIRCON SYSTEM-COOLER LINE (02/02)
Sort by:
Part Description
Part Code
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 1140ES
11403-06286-B
Bolt- Fit Note: FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR)
- Require Quantity: 2
- Package Quantity: 1
$1.37 $1.051
- 1140EX
11403-06456-K
Bolt- Fit Note: FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR)
FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR), HEAT PUMP, INNER CONDENSER HVAC - Require Quantity: 4
- Package Quantity: 10
$1.00 $0.7610
- 9764797647-2D010
Bolt- Fit Note: FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR)
FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR), HEAT PUMP, INNER CONDENSER HVAC
$1.44 $1.091
- 97714J97909-4H100
Bolt-Expansion Valve MTG- Fit Note: FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR)
FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR), HEAT PUMP, INNER CONDENSER HVAC
$6.23 $4.751
- 11403B11403-08286-B
Bolt-Flange- Fit Note: FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR)
FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR), HEAT PUMP, INNER CONDENSER HVAC
$2.35 $1.801
- 97793P
97793-K4010
Bracket-Suction Pipe- Fit Note: FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR)
FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR), HEAT PUMP, INNER CONDENSER HVAC
$16.76 $12.781
- 25387A
25342-A5000
Bush- Fit Note: FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR)
FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR), HEAT PUMP, INNER CONDENSER HVAC - Require Quantity: 2
- Package Quantity: 1
$1.79 $1.351
- 54148D
25341-A5000
Bush-Steel & Rubber- Fit Note: FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR)
FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR), HEAT PUMP, INNER CONDENSER HVAC - Require Quantity: 2
- Package Quantity: 1
$1.79 $1.351
- 97811B
97811-B1100
Cap-Charge Valve- Fit Note: FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR)
FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR), HEAT PUMP, INNER CONDENSER HVAC
$4.10 $3.091
- 97811C
97811-H9150
Cap-Charge Valve- Fit Note: FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR)
$6.50 $4.911
- 25671A25670-K4000
Chiller- Fit Note: FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR)
FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR), HEAT PUMP, INNER CONDENSER HVAC
$589.95 $423.561
- 9763197785-K4000
Clip- Fit Note: FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR), HEAT PUMP, INNER CONDENSER HVAC
$18.31 $13.961
- 97785
97785-K4010
Clip-Aircon Cooler Line- Fit Note: FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR)
FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR), HEAT PUMP, INNER CONDENSER HVAC
$19.60 $14.941
- 97785A97785-K4510
Clip-Aircon Cooler Line- Fit Note: FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR)
$19.60 $14.941
- Core-Charge Valve97812B
97812-22301
Core-Charge Valve- Fit Note: FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR)
- Production Date: from 03/2021
$14.44 $10.901 - 97812B
97812-2L000
Core-Charge Valve- Fit Note: FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR)
FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR), HEAT PUMP, INNER CONDENSER HVAC - Production Date: from 03/2021
$8.26 $6.241
- 97916
97626-K4200
Expansion Valve- Fit Note: FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR)
FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR), HEAT PUMP, INNER CONDENSER HVAC
$483.85 $344.391
- Liquid & Suction Assy97776A97776-K4300
Liquid & Suction Assy- Fit Note: FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR)
- Production Date: from 03/2021
$474.31 $343.471 - 97776A
97776-K4400
Liquid & Suction Assy- Fit Note: FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR), HEAT PUMP, INNER CONDENSER HVAC
- Production Date: from 03/2021
$683.37 $490.631
- 1339GA
13396-08007-K
Nut- Fit Note: FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR)
FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR), HEAT PUMP, INNER CONDENSER HVAC - Require Quantity: 3
- Package Quantity: 10
$0.73 $0.5510
- 13396
13396-06007-K
Nut-Flange- Fit Note: FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR)
FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR), HEAT PUMP, INNER CONDENSER HVAC - Require Quantity: 4
- Package Quantity: 1
$0.85 $0.651
- O-Ring97690A
97690-34310
O-Ring- 5/16 INCH
- Fit Note: FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR)
- Require Quantity: 2
- Package Quantity: 5
$1.79 $1.355 - 97690A97690-34310
O-Ring- 5/16 INCH
- Fit Note: FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR), HEAT PUMP, INNER CONDENSER HVAC
- Require Quantity: 4
- Package Quantity: 5
$1.79 $1.355
- 97690D
97690-34350
O-Ring- 1/2 INCH
- Fit Note: FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR)
- Require Quantity: 3
- Package Quantity: 1
$1.79 $1.351
- 97690E
97690-34340
O-Ring- 5/8 INCH
- Fit Note: FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR)
FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR), HEAT PUMP, INNER CONDENSER HVAC - Require Quantity: 2
- Package Quantity: 1
$1.90 $1.441
- 97682C97772-K4300
Pipe Assy-Discharge- Fit Note: FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR)
$293.19 $212.321
- 97774A
97774-K4000
Pipe-Liquid- Fit Note: FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR)
FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR), HEAT PUMP, INNER CONDENSER HVAC
$146.42 $106.671
- 46351A
97615-E4000
Sensor Assy-Temperature- Fit Note: FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR)
FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR), HEAT PUMP, INNER CONDENSER HVAC
$88.79 $64.681
- 97721B
97721-D2000
Sensor-Pressure- Fit Note: FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR)
FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR), HEAT PUMP, INNER CONDENSER HVAC
$108.92 $77.521
- Tube Assy-Suction & Liquid97775A97775-K4010
Tube Assy-Suction & Liquid- Fit Note: FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR), HEAT PUMP, INNER CONDENSER HVAC
- Production Date: from 03/2021
$2096.27 $1466.051 - 97775A97775-K4300
Tube Assy-Suction & Liquid- Fit Note: FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR)
- Production Date: from 03/2021
$2059.21 $1440.131
- Tube-Suction And Liquid9777797777-K4010
Tube-Suction And Liquid- Fit Note: FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR), HEAT PUMP, INNER CONDENSER HVAC
- Production Date: from 03/2021
$1024.87 $733.911 - 9777797777-K4300
Tube-Suction And Liquid- Fit Note: FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR)
- Production Date: from 03/2021
$1024.87 $733.911
- 9709397626-K4010
Valve-Expansion- Fit Note: FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR)
FR COOLER - FULL AUTO A/CON, DOUBLE PIPE IHX, REFRIGERATOR - ALTERNATIVE, COMPRESSOR - ELECTRIC COMPRESSOR (W/ OIL-SEPARATOR), HEAT PUMP, INNER CONDENSER HVAC
$500.79 $353.341
