Diagram (1 of 1): MAIN WIRING

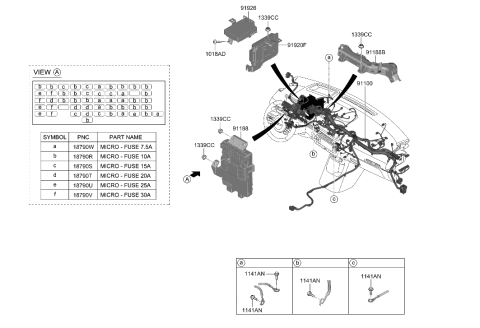

2023 Hyundai Genesis GV60 Main Wiring Diagram

Enlarge Diagram

Sort by:

Part Description

Part Code

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1141AN
11425-06167-P
Bolt-Flange
- Require Quantity: 4
- Package Quantity: 1
$0.68 $0.51
1
Add To Cart

18790R

18790-05261
Fuse-Micro 10A
$1.02 $0.77
5
Add To Cart

18790S

18790-05262
Fuse-Micro 15A
$1.02 $0.77
5
Add To Cart

18790T

18790-05263
Fuse-Micro 20A
$1.02 $0.77
5
Add To Cart

18790U

18790-05264
Fuse-Micro 25A
$1.02 $0.77
5
Add To Cart

18790V

18790-05265
Fuse-Micro 30A
$1.02 $0.77
5
Add To Cart

18790W

18790-05260
Fuse-Micro 7.5A
$0.98 $0.74
1
Add To Cart

91188
91950-CU020
Junction Box Assy-I/Panel
- Fit Note: AMS - W/ MICOM, W/ HEATED, STEER'G COLUMN-ELEC TILT & TELES(IMS), TWO TURN UNLOCK'G - DRIVER ONLY, POWER CHILD LOCK, SEA (SAFE EXIT ASSIST) - SEA
  AMS - W/ MICOM, W/ HEATED, STEER'G COLUMN-ELEC TILT & TELES(IMS), TWO TURN UNLOCK'G - DRIVER ONLY, POWER CHILD LOCK, SEA (SAFE EXIT ASSIST) - SEA, MODEL YEAR PACKAGE - 24MY
  AMS - W/ MICOM, W/ HEATED, STEER'G COLUMN-ELEC TILT & TELES(IMS), TWO TURN UNLOCK'G - DRIVER ONLY, POWER CHILD LOCK, SEA (SAFE EXIT ASSIST) - SEA, MODEL YEAR PACKAGE - 24MY, MODEL YEAR PACKAGE - 25MY

Nut-Flange
1339CC
13395-06001
Nut-Flange
Require Quantity: 6
Package Quantity: 1
$0.63 $0.48
1
Add To Cart
1339CC
13395-06001
Nut-Flange
- Fit Note: AVN HIGH (RADIO+MEDIA+NAVI) - 12.3 EXT LCD+SDARS+HD+TMS
  MODEL YEAR PACKAGE - 23MY
  MODEL YEAR PACKAGE - 23MY, MODEL YEAR PACKAGE - 24MY
  MODEL YEAR PACKAGE - 23MY, MODEL YEAR PACKAGE - 24MY, MODEL YEAR PACKAGE - 25MY
- Require Quantity: 3
- Package Quantity: 1
$0.63 $0.48
1
Add To Cart

91188B
91961-CU080
Protector-Wiring

1018AD
10188-05163
Screw-Tapping
- Fit Note: AVN HIGH (RADIO+MEDIA+NAVI) - 12.3 EXT LCD+SDARS+HD+TMS
$0.50 $0.38
1
Add To Cart

91920F
91920-CU000
Unit Assembly-Central Communication
- Fit Note: MODEL YEAR PACKAGE - 23MY
  MODEL YEAR PACKAGE - 23MY, MODEL YEAR PACKAGE - 24MY
  MODEL YEAR PACKAGE - 23MY, MODEL YEAR PACKAGE - 24MY, MODEL YEAR PACKAGE - 25MY

91926
91926-CU040
Unit Assembly-Data Connectivity
- Fit Note: AVN HIGH (RADIO+MEDIA+NAVI) - 12.3 EXT LCD+SDARS+HD+TMS

Wiring Assy-Main
91100
91102-CU810
Wiring Assy-Main
Fit Note: W/ HEATED, STEER'G COLUMN-ELEC TILT & TELES(IMS), DRIVER SIDE - ADVANCED, PASSENGER SIDE - ADVANCED, DRIVER'S KNEE AIR BAG, FR IMPACT SENSOR, VISION ROOF - FIXED ROOF GLASS, HEIGHT ADJUSTABLE POWER T/GATE SYSTEM, DR MOOD LAMP - MOOD LAMP, ECM+HOME LINK SYSTEM TYPE, W/ PUDDLE & LOGO LAMP, MOTORIZED, DIGITAL KEY 2.0 - FULL (NFC+BLE+UWB), FINGERPRINT RECOGNITION, FACE RECOGNITION, FRONT RADAR, REAR CORNER RADAR, FRONT VIEW CAMERA, HEAD UP DISPLAY - TFT-LCD TYPE, SVM, RSPA (REMOTE SMART PARKING ASSIST) - RSPA, AVN HIGH (RADIO+MEDIA+NAVI) - 12.3 EXT LCD+SDARS+HD+TMS, EXTERNAL AMP - PREMIUM AMP (HIGH), MTS (MOBILE TELEMATICS SYSTEM) - TMU, AUTO DEFOG SYSTEM, B-PILLAR VENT, RAIN SENSOR, FRONT CORNER RADAR
Production Date: 02/2022-03/2022
91100
91102-CU920
Wiring Assy-Main
- Fit Note: W/ HEATED, STEER'G COLUMN-ELEC TILT & TELES(IMS), DRIVER SIDE - ADVANCED, PASSENGER SIDE - ADVANCED, DRIVER'S KNEE AIR BAG, FR IMPACT SENSOR, VISION ROOF - FIXED ROOF GLASS, HEIGHT ADJUSTABLE POWER T/GATE SYSTEM, DR MOOD LAMP - MOOD LAMP, ECM+HOME LINK SYSTEM TYPE, W/ PUDDLE & LOGO LAMP, MOTORIZED, FINGERPRINT RECOGNITION, FACE RECOGNITION, FRONT RADAR, REAR CORNER RADAR, FRONT VIEW CAMERA, HEAD UP DISPLAY - TFT-LCD TYPE, SVM, RSPA (REMOTE SMART PARKING ASSIST) - RSPA, AVN HIGH (RADIO+MEDIA+NAVI) - 12.3 EXT LCD+SDARS+HD+TMS, EXTERNAL AMP - PREMIUM AMP (HIGH), MTS (MOBILE TELEMATICS SYSTEM) - TMU, AUTO DEFOG SYSTEM, B-PILLAR VENT, RAIN SENSOR, DIGITAL KEY 2.0 - FULL (NFC+BLE+UWB), FRONT CORNER RADAR
- Production Date: 02/2022-03/2022
91100
91102-CU980
Wiring Assy-Main
- Fit Note: W/ HEATED, STEER'G COLUMN-ELEC TILT & TELES(IMS), DRIVER SIDE - ADVANCED, PASSENGER SIDE - ADVANCED, DRIVER'S KNEE AIR BAG, FR IMPACT SENSOR, VISION ROOF - FIXED ROOF GLASS, HEIGHT ADJUSTABLE POWER T/GATE SYSTEM, DR MOOD LAMP - MOOD LAMP, ECM+HOME LINK SYSTEM TYPE, W/ PUDDLE & LOGO LAMP, MOTORIZED, FINGERPRINT RECOGNITION, FACE RECOGNITION, FRONT RADAR, REAR CORNER RADAR, FRONT VIEW CAMERA, HEAD UP DISPLAY - TFT-LCD TYPE, SVM, RSPA (REMOTE SMART PARKING ASSIST) - RSPA, AVN HIGH (RADIO+MEDIA+NAVI) - 12.3 EXT LCD+SDARS+HD+TMS, EXTERNAL AMP - PREMIUM AMP (HIGH), MTS (MOBILE TELEMATICS SYSTEM) - TMU, AUTO DEFOG SYSTEM, B-PILLAR VENT, RAIN SENSOR, MODEL YEAR PACKAGE - 24MY, DIGITAL KEY 2.0 - FULL (NFC+BLE+UWB), FRONT CORNER RADAR
- Production Date: from 03/2022
91100
91102-CU990
Wiring Assy-Main
- Fit Note: W/ HEATED, STEER'G COLUMN-ELEC TILT & TELES(IMS), DRIVER SIDE - ADVANCED, PASSENGER SIDE - ADVANCED, DRIVER'S KNEE AIR BAG, FR IMPACT SENSOR, VISION ROOF - FIXED ROOF GLASS, HEIGHT ADJUSTABLE POWER T/GATE SYSTEM, DR MOOD LAMP - MOOD LAMP, ECM+HOME LINK SYSTEM TYPE, W/ PUDDLE & LOGO LAMP, MOTORIZED, DIGITAL KEY 2.0 - FULL (NFC+BLE+UWB), FINGERPRINT RECOGNITION, FACE RECOGNITION, FRONT RADAR, REAR CORNER RADAR, FRONT VIEW CAMERA, HEAD UP DISPLAY - TFT-LCD TYPE, SVM, RSPA (REMOTE SMART PARKING ASSIST) - RSPA, AVN HIGH (RADIO+MEDIA+NAVI) - 12.3 EXT LCD+SDARS+HD+TMS, EXTERNAL AMP - PREMIUM AMP (HIGH), MTS (MOBILE TELEMATICS SYSTEM) - TMU, AUTO DEFOG SYSTEM, B-PILLAR VENT, RAIN SENSOR, MODEL YEAR PACKAGE - 24MY, FRONT CORNER RADAR
- Production Date: from 03/2022
