Diagram (1 of 1): MAIN WIRING

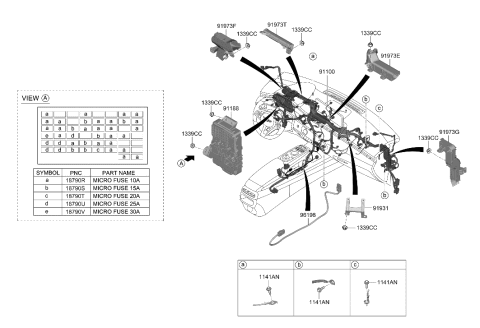

2023 Hyundai Genesis Electrified GV70 Main Wiring Diagram

Enlarge Diagram

Sort by:

Part Description

Part Code

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1141AN
11425-06167-P
Bolt-Flange
- Require Quantity: 5
- Package Quantity: 1
$0.68 $0.51
1
Add To Cart

91931
91931-AR010
Bracket-Wiring MTG

96198
96595-AR000
Cable Assy-USB

18790R

18790-05261
Fuse-Micro 10A
$1.02 $0.77
5
Add To Cart

18790S

18790-05262
Fuse-Micro 15A
$1.02 $0.77
5
Add To Cart

18790T

18790-05263
Fuse-Micro 20A
$1.02 $0.77
5
Add To Cart

18790U

18790-05264
Fuse-Micro 25A
$1.02 $0.77
5
Add To Cart

18790V

18790-05265
Fuse-Micro 30A
$1.02 $0.77
5
Add To Cart

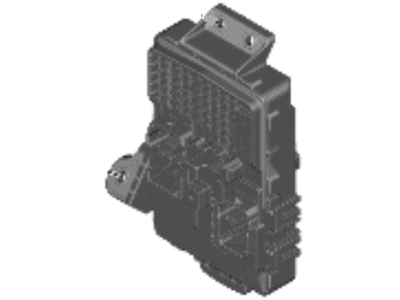

Junction Box Assy-I/Panel
91188
91950-IT010
Junction Box Assy-I/Panel
Fit Note: W/ HEATED, TWO TURN UNLOCK'G - DRIVER ONLY, POWER CHILD LOCK, SVM, STEER'G COLUMN-MANUAL TILT & TELESCOPIC
Production Date: from 12/2022
91188
91950-IT030
Junction Box Assy-I/Panel
- Fit Note: TWO TURN UNLOCK'G - DRIVER ONLY, POWER CHILD LOCK, SVM, W/ HEATED, STEER'G COLUMN-MANUAL TILT & TELESCOPIC
- Production Date: from 12/2022

1339CC
13395-06001
Nut-Flange
- Require Quantity: 15
- Package Quantity: 1
$0.63 $0.48
1
Add To Cart

91973E
91961-AR010
Protector-Wiring

91973F
91961-AR020
Protector-Wiring

91973G
91961-AR040
Protector-Wiring

91973T
91961-AR030
Protector-Wiring

Wiring Assy-Main
91100
91100-IT030
Wiring Assy-Main
Fit Note: STEER'G COLUMN-ELEC TILT & TELES(IMS), DRIVER SIDE - ADVANCED, PASSENGER SIDE - ADVANCED, DRIVER'S KNEE AIR BAG, A/BAG TELLTALE LAMP, PARKG BRK CONTROL-EPB, POWER-ONE TOUCH SAFETY, HEIGHT ADJUSTABLE POWER T/GATE SYSTEM, MOOD LAMP, ECM MIRROR, WIRELESS CHARGING (FR), DIGITAL KEY 1.0 W/ RSPA, FINGERPRINT RECOGNITION, REAR OCCUPANT ALERT (W/ SENSOR), TURNING/CROSSING, L/R (LINE/ROAD-EDGE), R, SVM, RSPA (REMOTE SMART PARKING ASSIST) - RSPA, EXTERNAL AMP - AMP, HEATER CONTROL-REAR - FATC TYPE, W/ HEATED, SEAT WARMER (HEATER) - 3-STEPS (BUTTON), HEAD UP DISPLAY - TFT-LCD TYPE
Production Date: from 12/2022
91100
91100-IT040
Wiring Assy-Main
- Fit Note: W/ HEATED, STEER'G COLUMN-ELEC TILT & TELES(IMS), DRIVER SIDE - ADVANCED, PASSENGER SIDE - ADVANCED, DRIVER'S KNEE AIR BAG, A/BAG TELLTALE LAMP, PARKG BRK CONTROL-EPB, POWER-ONE TOUCH SAFETY, HEIGHT ADJUSTABLE POWER T/GATE SYSTEM, MOOD LAMP, ECM MIRROR, SEAT WARMER (HEATER) - 3-STEPS (BUTTON), WIRELESS CHARGING (FR), DIGITAL KEY 1.0 W/ RSPA, FINGERPRINT RECOGNITION, HEAD UP DISPLAY - TFT-LCD TYPE, REAR OCCUPANT ALERT (W/ SENSOR), TURNING/CROSSING, L/R (LINE/ROAD-EDGE), R, SVM, RSPA (REMOTE SMART PARKING ASSIST) - RSPA, EXTERNAL AMP - PREMIUM AMP, HEATER CONTROL-REAR - FATC TYPE
- Production Date: from 12/2022
