Cooling System fit your 2022 Hyundai Kona Electric
Currently shopping for
2022 Hyundai Kona Electric
Change VehicleVehicle Options
Wagon - 5Door 5P; Motor - 150KW; Electric; Electric; DeceleratorVehicle Options
Wagon - 5Door 5P; Motor - 150KW; Electric; Electric; DeceleratorCategories Close X
Currently selected
Motor
Other Categories
Body
Chassis
Electrical
Trim
Accessories
Parts Questions
3 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
- 1.COOLING SYSTEM (01/03)

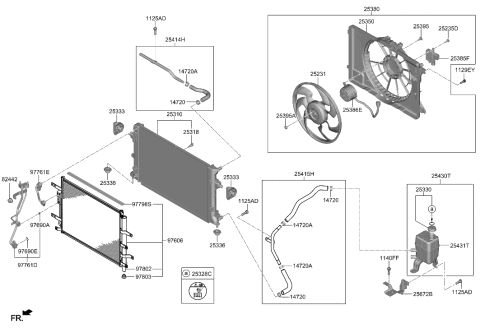

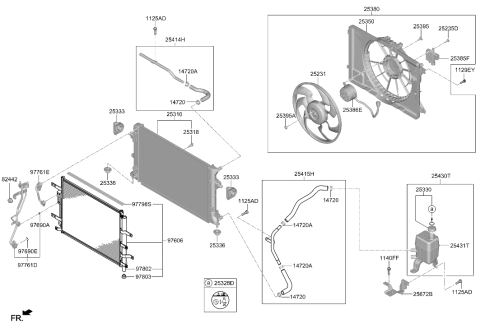

- 2.COOLING SYSTEM (02/03)

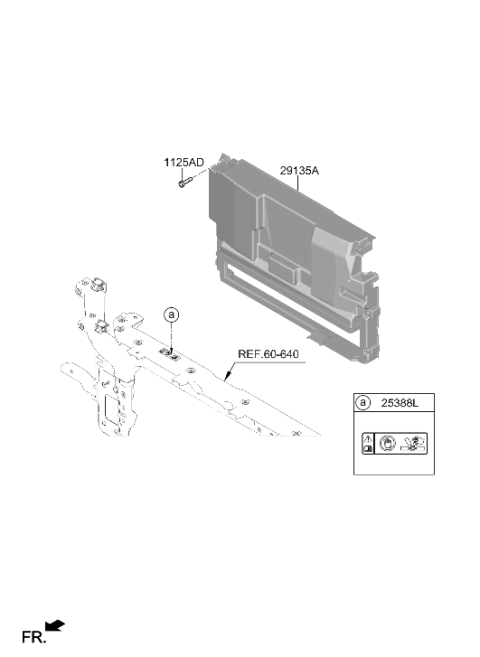

- 3.COOLING SYSTEM (03/03)
Sort by:
Part Description
Part Code
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 25380
25380-G7000
Blower Assy- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC
$560.13 $395.201
- 9772997729-K4000
Body Kit-Compressor- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC
$791.68 $558.581
- Bolt1125AD
$1.08 $0.8010 - 1125AD
11254-06206-B
Bolt- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC - Production Date: from 03/2021
- Require Quantity: 3
- Package Quantity: 10
$1.08 $0.8010 - 1125AD
11250-06206-B
Bolt- Fit Note: HEAT PUMP, INNER CONDENSER HVAC
INNER CONDENSER HVAC - Production Date: from 03/2021
- Require Quantity: 6
- Package Quantity: 1
$0.82 $0.611
- 1129EY
11293-06206-B
Bolt- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC - Require Quantity: 12
- Package Quantity: 1
$0.89 $0.671
- 1140EN
$0.71 $0.541
- Bolt1140FF
11403-08226-K
Bolt- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
- Require Quantity: 2
- Package Quantity: 1
- Replaced By: 11290-08306-K
$2.08 $1.591 - 1140FF11403-08226-K
Bolt- Fit Note: REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC
- Require Quantity: 3
- Package Quantity: 1
- Replaced By: 11290-08306-K
$2.08 $1.591
- 25395
25395-3F000
Bolt- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC - Require Quantity: 3
- Package Quantity: 1
$4.05 $3.061
- 97743A97647-E6000
Bolt- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC - Require Quantity: 6
- Package Quantity: 1
$3.47 $2.621
- 97714Y
11630-08096-PA
Bolt-Compressor MTG- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC - Require Quantity: 3
- Package Quantity: 1
$8.02 $6.111
- 11403B11403-08286-B
Bolt-Flange- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC
$2.35 $1.801
- 25333
$26.37 $18.311
- 25672B
25672-K4500
Bracket-Chiller- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC
$20.89 $15.771
- 97793Q97793-G7500
Bracket-Suction Pipe- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC
$9.58 $7.311
- 97803
97803-0U000
Cap Assy-Bottom- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC
$36.00 $25.851
- 25330
25330-J2100
Cap Assy-Radiator- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC
$21.16 $15.981
- 97811C
$6.50 $4.911
- 14720
$1.97 $1.4910
- Clip-Hose14720A
$1.90 $1.441 - 14720A14720-22006-S
Clip-Hose- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC - Require Quantity: 4
- Package Quantity: 1
$1.90 $1.441
- 25481H25481-K4000
Clip-Hose- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC
$10.31 $7.861
- 97794B$9.63 $7.341
- 97701
97701-K4000
Compressor Assy- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC
$1220.61 $853.651
- 97606
97606-K4010
Condenser Assy-Cooler- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC
$529.51 $343.471
- 25485B25485-K4400
Connector- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC
$23.21 $17.701
- 97812B
$14.44 $10.901
- 97802
97802-17000
Desiccant-Receiver Drier- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC
$34.61 $24.851
- 25385F
25385-G2000
Fan Controller- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC
$288.92 $209.221
- 25231
25231-F2000
Fan-Cooling- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC
$73.32 $52.641
- 97681D
97681-E6000
Gasket-Compressor Cylinder- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC
$15.73 $11.881
- 97715F
97715-E6000
Grease-Compressor Inverter- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC
$8.56 $6.531
- 29135A
$71.54 $47.221
- 25415H
$35.21 $25.281
- 25414H
$41.98 $30.141
- 25450H
25450-K4010
Hose Assy-Water- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC
$31.76 $23.981
- Hose-Discharge97762
97762-K4010
Hose-Discharge- Fit Note: REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC
- Production Date: from 03/2021
$160.97 $114.571 - 9776297762-K4500
Hose-Discharge- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
- Production Date: from 03/2021
$264.24 $188.081
- 25411G25411-K4400
Hose-Radiator Inlet- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC
$54.69 $40.621
- 97763
97763-K4010
Hose-Suction- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC
$198.90 $141.571
- 25336
$8.89 $6.181
- 97728B
97728-K4000
Inverter Kit-Compressor- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC
$601.63 $424.491
- 25388L
$4.77 $3.611
- 25328C
25328-J2000
Label-Radiator Cap- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC
$1.81 $1.361
- 25386E
25386-G2000
Motor Assy- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC
$264.03 $187.931
- 8244282442-C1500
Nut-Spring- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC
$3.13 $2.391
- 97690A
97690-34310
O-Ring- 5/16 INCH
- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC
$1.79 $1.355
- O-Ring97690D
97690-34350
O-Ring- 1/2 INCH
- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC
$1.79 $1.351 - 97690D
97690-34350
O-Ring- 1/2 INCH
- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC - Require Quantity: 2
- Package Quantity: 1
$1.79 $1.351
- 97690E97690-K4000
O-Ring- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC - Require Quantity: 2
- Package Quantity: 1
$4.13 $3.151
- 97690F
97690-34330
O-Ring- 3/4 INCH
- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC - Require Quantity: 2
- Package Quantity: 1
$1.90 $1.441
- 97761D
97761-K4100
Pipe-Suction & Liquid- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC
$120.34 $85.651
- 97761E
97761-K4000
Pipe-Suction & Liquid- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC
$118.24 $84.161
- 25318
25318-3K100
Plug-Radiator Drain- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC
$5.56 $4.201
- 25310
25310-K4010
Radiator Assy- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC
$386.81 $253.111
- 25431T
25431-J2000
Reservoir Tank- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC
$49.32 $35.411
- 25235D
25235-3K020
Screw-Tapping- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC - Require Quantity: 2
- Package Quantity: 1
$0.79 $0.601
- 97798S
97798-G7000
Seal-Condenser- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC
$10.10 $7.701
- 97721B
$108.92 $77.521
- 25350
25350-G7000
Shroud-Radiator- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC
$236.42 $168.271
- 25430T25430-J2000
Tank Assy-Reservoir- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC
$68.77 $49.381
- 25395A
25395-3K047
Tap Bolt- Fit Note: INNER CONDENSER HVAC, REFRIGERATOR - ALTERNATIVE
REFRIGERATOR - ALTERNATIVE, HEAT PUMP, INNER CONDENSER HVAC - Require Quantity: 3
- Package Quantity: 1
$0.92 $0.691
Genuine Hyundai Parts, the Right Choice
HyundaiPartsDeal.com offers the wholesale prices for genuine 2022 Hyundai Kona Electric parts. Parts like Cooling System are shipped directly from authorized Hyundai dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: Electric. Body: Wagon - 5Door 5P.
