Control Wiring fit your 2022 Hyundai Kona

2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

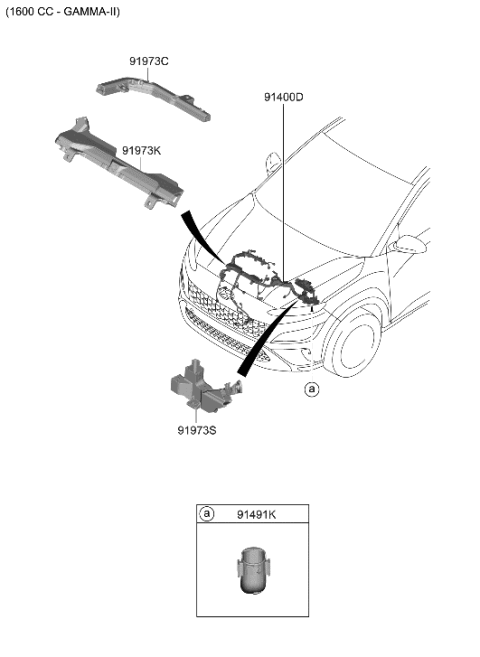

  • 1.CONTROL WIRING (01/02)

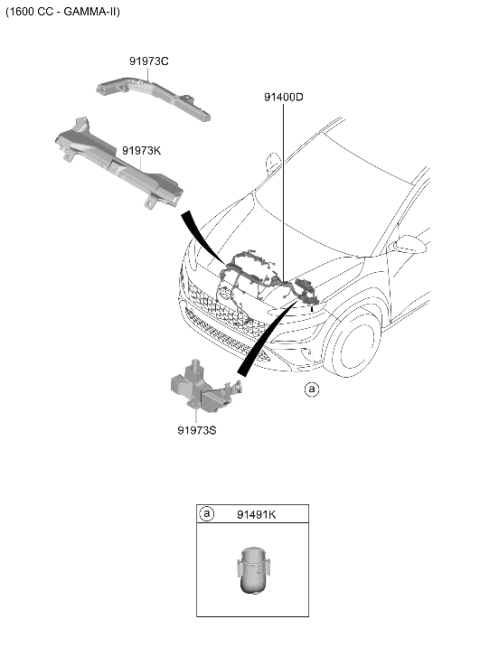

    2022 Hyundai Kona Control Wiring Diagram 1

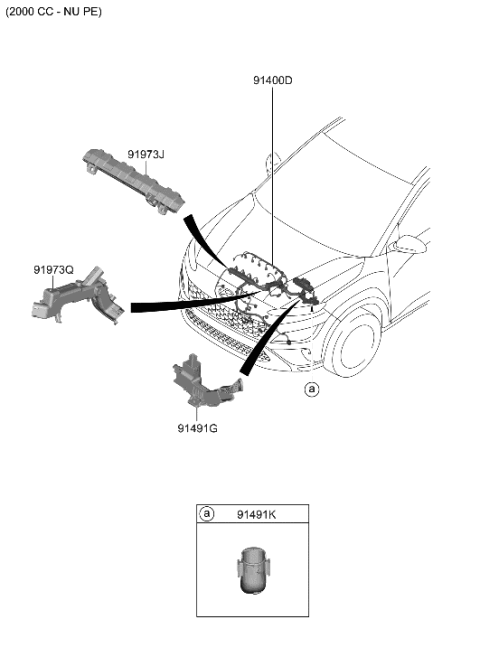

  • 2.CONTROL WIRING (02/02)

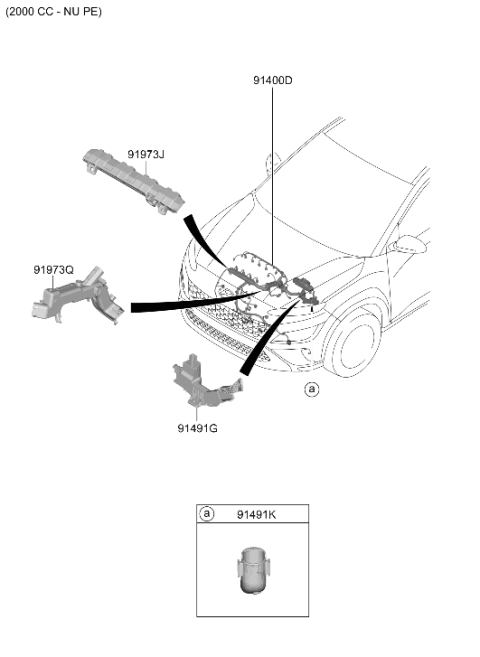

    2022 Hyundai Kona Control Wiring Diagram 2
Sort by:
Part Description
Part Code
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 91973Q
    91961-J9240
    Protector-Wiring
  • 91973S
    91961-J9280
    Protector-Wiring

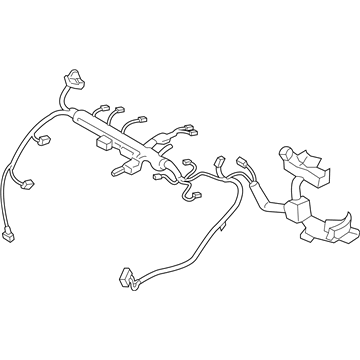

  • Wiring Assy-Control
    91400D Hyundai 914B0-J9070
    914B0-J9070
    Wiring Assy-Control
    • Fit Note: ISG + AMS 2, SMART KEY-FR DR, IMMOBILIZER
      ISG + AMS 2, SMART KEY-FR DR, IMMOBILIZER, MODEL YEAR PACKAGE - 23MY
    • Production Date: from 03/2021
    • Fitting Vehicle Options: 1.6L GAMMA II.. DCT - 7 Speed 2WD, 1.6L GAMMA II.. DCT - 7 Speed 4WD
    $1470.19 $1028.19
    1
    Add To Cart
  • 91400D
    914B0-J9170
    Wiring Assy-Control
    • Fit Note: MODEL YEAR PACKAGE - 23MY, ISG + AMS 2, SMART KEY-FR DR, IMMOBILIZER
    • Production Date: from 06/2022
    • Fitting Vehicle Options: 1.6L GAMMA II.. DCT - 7 Speed 2WD, 1.6L GAMMA II.. DCT - 7 Speed 4WD
    $1470.19 $1052.81
    1
    Add To Cart
  • 91400D Hyundai 914C0-J9040
    914C0-J9040
    Wiring Assy-Control
    • Fit Note: ISG + AMS 2, SMART KEY-FR DR, IMMOBILIZER, PADDLE SHIFTER - PUSH BUTTON TYPE
    • Production Date: 03/2021-06/2022
    • Fitting Vehicle Options: 2.0L - NU PE.. CVT 2WD, 2.0L - NU PE.. CVT 4WD
    $1506.35 $1053.48
    1
    Add To Cart
  • 91400D
    914C0-J9080
    Wiring Assy-Control
    • Fit Note: ISG + AMS 2, IMMOBILIZER, SMART KEY-FR DR, PADDLE SHIFTER - PUSH BUTTON TYPE
    • Production Date: 03/2021-06/2022
    • Fitting Vehicle Options: 2.0L - NU PE.. CVT 2WD, 2.0L - NU PE.. CVT 4WD
    $1196.81 $857.03
    1
    Add To Cart
  • 91400D Hyundai 914C0-J9100
    914C0-J9100
    Wiring Assy-Control
    • Fit Note: ISG + AMS 2, SMART KEY-FR DR, IMMOBILIZER, PADDLE SHIFTER - PUSH BUTTON TYPE
    • Production Date: 03/2021-07/2021
    • Fitting Vehicle Options: 2.0L - NU PE.. CVT 2WD, 2.0L - NU PE.. CVT 4WD
    $1506.35 $1053.48
    1
    Add To Cart
  • 91400D
    914C0-J9130
    Wiring Assy-Control
    • Fit Note: ISG + AMS 2, SMART KEY-FR DR, IMMOBILIZER, MODEL YEAR PACKAGE - 23MY
    • Production Date: from 06/2022
    • Fitting Vehicle Options: 2.0L - NU PE.. CVT 2WD, 2.0L - NU PE.. CVT 4WD
  • 91400D
    914C0-J9140
    Wiring Assy-Control
    • Fit Note: ISG + AMS 2, IMMOBILIZER, MODEL YEAR PACKAGE - 23MY, SMART KEY-FR DR
    • Production Date: from 06/2022
    • Fitting Vehicle Options: 2.0L - NU PE.. CVT 2WD, 2.0L - NU PE.. CVT 4WD
  • 91400D
    914C0-J9150
    Wiring Assy-Control
    • Fit Note: MODEL YEAR PACKAGE - 23MY, ISG + AMS 2, SMART KEY-FR DR, IMMOBILIZER
    • Production Date: from 06/2022
    • Fitting Vehicle Options: 2.0L - NU PE.. CVT 2WD, 2.0L - NU PE.. CVT 4WD
    $1461.94 $1046.89
    1
    Add To Cart
  • 91400D
    914C0-J9160
    Wiring Assy-Control
    • Fit Note: MODEL YEAR PACKAGE - 23MY, ISG + AMS 2, IMMOBILIZER, SMART KEY-FR DR
    • Production Date: from 06/2022
    • Fitting Vehicle Options: 2.0L - NU PE.. CVT 2WD, 2.0L - NU PE.. CVT 4WD
    $1506.35 $1078.70
    1
    Add To Cart
