Diagram (1 of 1): CONTROL WIRING

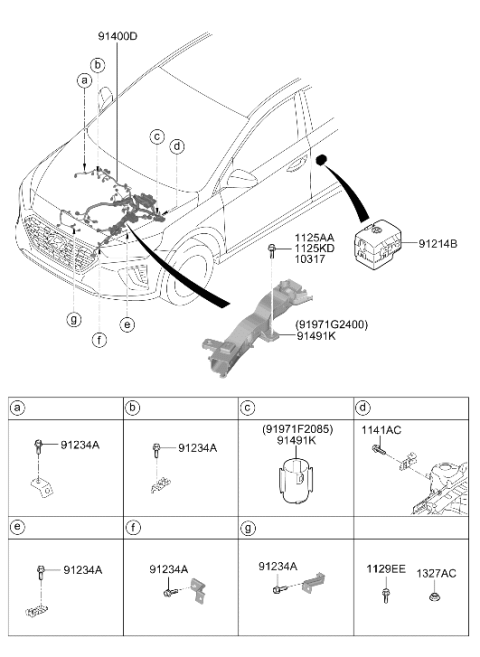

2022 Hyundai Ioniq Control Wiring Diagram

Enlarge Diagram

Sort by:

Part Description

Part Code

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

10317
11273-06206-B
Bolt
- Require Quantity: 2
- Package Quantity: 1
$1.21 $0.92
1
Add To Cart

1125AA
11274-06256-B
Bolt
- Fit Note: PARKG BRK CONTROL-EPB, PTC HEATER_INT TYPE
  PTC HEATER_INT TYPE, PARKG BRK CONTROL-EPB
- Require Quantity: 2
- Package Quantity: 1
$1.50 $1.13
1
Add To Cart

1125KD
11254-06256-B
Bolt
- Require Quantity: 2
- Package Quantity: 10
- Replaced By: 11254-06256-K
$0.68 $0.52
10
Add To Cart

1129EE
11293-06166-B
Bolt
- Fit Note: PARKG BRK CONTROL-EPB, PTC HEATER_INT TYPE
  PTC HEATER_INT TYPE, PARKG BRK CONTROL-EPB
$0.89 $0.67
1
Add To Cart

Bolt
1141AC
11413-06207-C
Bolt
Fit Note: PARKG BRK CONTROL-EPB, PTC HEATER_INT TYPE
Production Date: 12/2021-01/2022
Require Quantity: 9
Package Quantity: 1
$1.95 $1.47
1
Add To Cart
1141AC
11413-06207-C
Bolt
- Fit Note: PTC HEATER_INT TYPE, PARKG BRK CONTROL-EPB
- Production Date: 09/2019-01/2022
- Require Quantity: 8
- Package Quantity: 1
$1.95 $1.47
1
Add To Cart
1141AC
11415-06167-B
Bolt
- Fit Note: PARKG BRK CONTROL-EPB, PTC HEATER_INT TYPE
  PTC HEATER_INT TYPE, PARKG BRK CONTROL-EPB
- Production Date: 09/2019-01/2022
- Require Quantity: 2
- Package Quantity: 1
$1.06 $0.80
1
Add To Cart
1141AC
11415-06167-B
Bolt
- Production Date: 09/2019-12/2021
- Fitting Vehicle Options: (EV2)
- Require Quantity: 3
- Package Quantity: 1
$1.06 $0.80
1
Add To Cart
1141AC
11413-06167-C
Bolt
- Fit Note: PARKG BRK CONTROL-EPB, PTC HEATER_INT TYPE
- Production Date: 12/2021-01/2022
- Require Quantity: 9
- Package Quantity: 1
$1.08 $0.82
1
Add To Cart
1141AC
11413-06167-C
Bolt
- Fit Note: PTC HEATER_INT TYPE, PARKG BRK CONTROL-EPB
- Production Date: 09/2019-01/2022
- Require Quantity: 8
- Package Quantity: 1
$1.08 $0.82
1
Add To Cart

91234A
11273-06167-K
Bolt
- Fit Note: PARKG BRK CONTROL-EPB, PTC HEATER_INT TYPE
  PTC HEATER_INT TYPE, PARKG BRK CONTROL-EPB
- Require Quantity: 5
- Package Quantity: 1
$1.21 $0.91
1
Add To Cart

91214B
91971-G2700
Cap Assy
$18.48 $14.10
1
Add To Cart

Nut-Washer Assy
1327AC
13271-06007-K
Nut-Washer Assy
Fit Note: PARKG BRK CONTROL-EPB, PTC HEATER_INT TYPE
PTC HEATER_INT TYPE, PARKG BRK CONTROL-EPB
Require Quantity: 6
Package Quantity: 10
$1.08 $0.82
10
Add To Cart
1327AC
13271-06007-K
Nut-Washer Assy
- Fitting Vehicle Options: (EV2)
- Require Quantity: 5
- Package Quantity: 10
$1.08 $0.82
10
Add To Cart

Protector-Wiring
91491K
91971-F2085
Protector-Wiring
Production Date: 09/2019-01/2022
$36.11 $26.82
1
Add To Cart
91491K
91971-G2400
Protector-Wiring
- Production Date: 09/2019-01/2022
$24.00 $18.30
1
Add To Cart

Wiring Assy-Control
91400D
91410-G2050
Wiring Assy-Control
Fit Note: EXHAUST HEAT RECOVERY SYSTEM, SMART KEY-FR DR, IMMOBILIZER, EMISSION REGULATION - EURO 6C
EXHAUST HEAT RECOVERY SYSTEM, SMART KEY-FR DR, IMMOBILIZER, EMISSION REGULATION - EURO 6D, EMISSION REGULATION - EURO 6C
EXHAUST HEAT RECOVERY SYSTEM, SMART KEY-FR DR, IMMOBILIZER, MODEL YEAR PACKAGE - 22MY
Production Date: 09/2019-01/2022
Fitting Vehicle Options: (EV1)
$1667.29 $1166.04
1
Add To Cart
91400D
91410-G2190
Wiring Assy-Control
- Fit Note: MODEL YEAR PACKAGE - 22MY, EXHAUST HEAT RECOVERY SYSTEM, SMART KEY-FR DR, IMMOBILIZER
- Production Date: 04/2021-01/2022
- Fitting Vehicle Options: (EV1)
$1801.02 $1289.71
1
Add To Cart
91400D
91415-G2050
Wiring Assy-Control
- Fit Note: EXHAUST HEAT RECOVERY SYSTEM, SMART KEY-FR DR, IMMOBILIZER, EMISSION REGULATION - EURO 6C
  EXHAUST HEAT RECOVERY SYSTEM, SMART KEY-FR DR, IMMOBILIZER, EMISSION REGULATION - EURO 6D, EMISSION REGULATION - EURO 6C
  EXHAUST HEAT RECOVERY SYSTEM, SMART KEY-FR DR, IMMOBILIZER, MODEL YEAR PACKAGE - 22MY
- Production Date: 09/2019-12/2021
- Fitting Vehicle Options: (EV2)
$1686.68 $1179.59
1
Add To Cart
91400D
91415-G2190
Wiring Assy-Control
- Fit Note: MODEL YEAR PACKAGE - 22MY, EXHAUST HEAT RECOVERY SYSTEM, SMART KEY-FR DR, IMMOBILIZER
- Production Date: 04/2021-12/2021
- Fitting Vehicle Options: (EV2)
$1686.68 $1207.83
1
Add To Cart
