Fuel System fit your 2020 Hyundai Sonata Hybrid

2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

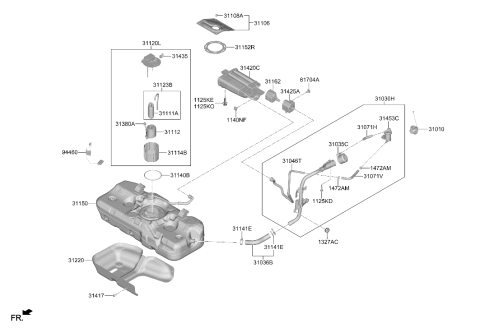

  • 1.FUEL SYSTEM (01/02)
    2020 Hyundai Sonata Hybrid Fuel System Diagram 1

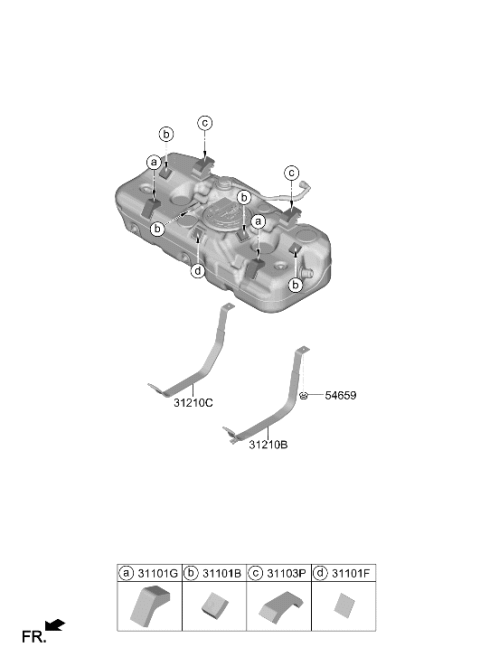

  • 2.FUEL SYSTEM (02/02)
    2020 Hyundai Sonata Hybrid Fuel System Diagram 2
Sort by:
Part Description
Part Code
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1125KD
    11254-06256-B
    Bolt
    • Fit Note: EVAP. GAS CONTROL - LEV-3
    • Require Quantity: 2
    • Package Quantity: 10
    • Replaced By: 11254-06256-K
    $0.68 $0.52
    10
    Add To Cart
  • 1125KE Hyundai 11254-08206-K
    11254-08206-K
    Bolt
    • Fit Note: EVAP. GAS CONTROL - LEV-3
    • Require Quantity: 2
    • Package Quantity: 1
    $1.08 $0.82
    1
    Add To Cart
  • 1125KO
    11254-08256-B
    Bolt
    • Fit Note: EVAP. GAS CONTROL - LEV-3
    • Require Quantity: 2
    • Package Quantity: 10
    $1.08 $0.82
    10
    Add To Cart
  • 1140NF
    11253-06146-B
    Bolt
    • Fit Note: EVAP. GAS CONTROL - LEV-3
    • Require Quantity: 2
    • Package Quantity: 1
    $1.97 $1.49
    1
    Add To Cart
  • 31417
    31129-C0500
    Bolt
    • Fit Note: EVAP. GAS CONTROL - LEV-3
    • Require Quantity: 4
    • Package Quantity: 1
    $1.76 $1.33
    1
    Add To Cart
  • 1472AM Hyundai 14720-18006-B
    14720-18006-B
    Clip-Hose
    • Fit Note: EVAP. GAS CONTROL - LEV-3
    • Require Quantity: 2
    • Package Quantity: 10
    $0.92 $0.69
    10
    Add To Cart
  • 81704A Hyundai 81704-3J000
    81704-3J000
    Clip-Trim
    • Fit Note: EVAP. GAS CONTROL - LEV-3
    • Replaced By: 81704-3X000
    $0.95 $0.72
    1
    Add To Cart
  • 31101G Hyundai 31101-L5000
    31101-L5000
    Cover-Fuel Pump
    • Fit Note: EVAP. GAS CONTROL - LEV-3
    • Require Quantity: 2
    • Package Quantity: 1
    $24.18 $18.26
    1
    Add To Cart
  • 54659 Hyundai 31109-3S000
    31109-3S000
    Nut
    • Fit Note: EVAP. GAS CONTROL - LEV-3
    • Require Quantity: 2
    • Package Quantity: 1
    $2.44 $1.84
    1
    Add To Cart
  • 31101B Hyundai 31101-F3500
    31101-F3500
    Pad-Fuel Tank
    • Fit Note: EVAP. GAS CONTROL - LEV-3
    • Require Quantity: 4
    • Package Quantity: 1
    $5.48 $4.14
    1
    Add To Cart
  • 31103P Hyundai 31103-L5000
    31103-L5000
    Pad-Fuel Tank
    • Fit Note: EVAP. GAS CONTROL - LEV-3
    • Require Quantity: 2
    • Package Quantity: 1
    $3.29 $2.48
    1
    Add To Cart
Genuine Hyundai Parts, the Right Choice
HyundaiPartsDeal.com offers the wholesale prices for genuine 2020 Hyundai Sonata Hybrid parts. Parts like Fuel System are shipped directly from authorized Hyundai dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: DOHC - GDI. Body: Sedan - 4Door 5P.
