Miscellaneous Wiring fit your 2020 Hyundai Santa Fe

3 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
  • 1.MISCELLANEOUS WIRING (01/03)

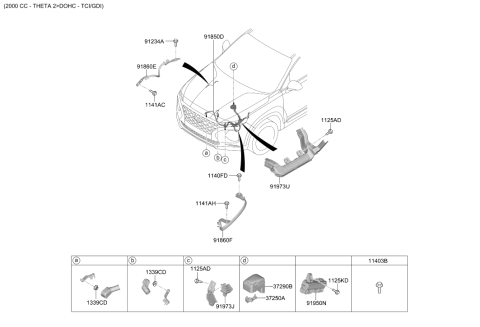

    2020 Hyundai Santa Fe Miscellaneous Wiring Diagram 1
  • 2.MISCELLANEOUS WIRING (02/03)
    2020 Hyundai Santa Fe Miscellaneous Wiring Diagram 2
  • 3.MISCELLANEOUS WIRING (03/03)

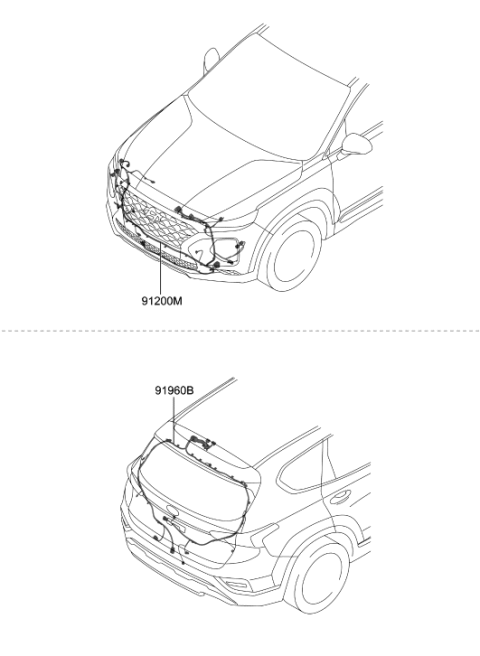

    2020 Hyundai Santa Fe Miscellaneous Wiring Diagram 3
Sort by:
Part Description
Part Code
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1125AD
    11254-06206-B
    Bolt
    • Fit Note: ISG + AMS 1.5
    • Require Quantity: 2
    • Package Quantity: 10
    $1.08 $0.80
    10
    Add To Cart
  • 1125KD Hyundai 11254-06253
    11254-06253
    Bolt
    • Fit Note: POWER CHILD LOCK
    • Require Quantity: 2
    • Package Quantity: 1
  • Bolt
    1141AC
    11413-06207-C
    Bolt
    • Production Date: 05/2018-11/2021
    • Require Quantity: 2
    • Package Quantity: 1
    $1.95 $1.47
    1
    Add To Cart
  • 1141AC Hyundai 11413-06167-C
    11413-06167-C
    Bolt
    • Production Date: 05/2018-11/2021
    • Require Quantity: 2
    • Package Quantity: 1
    $1.08 $0.82
    1
    Add To Cart
  • 1141AN Hyundai 11425-06167-P
    11425-06167-P
    Bolt-Flange
    • Fit Note: POWER CHILD LOCK
    • Require Quantity: 6
    • Package Quantity: 1
    $0.68 $0.51
    1
    Add To Cart
  • 1339CC
    13395-06001
    Nut-Flange
    • Fit Note: POWER CHILD LOCK
    • Require Quantity: 5
    • Package Quantity: 1
    $0.63 $0.48
    1
    Add To Cart
  • Nut-Flange
    1339CD
    13395-08007-K
    Nut-Flange
    • Fit Note: ISG + AMS 1.5
    • Production Date: 05/2018-11/2021
    • Require Quantity: 2
    • Package Quantity: 1
    $0.76 $0.57
    1
    Add To Cart
  • 1339CD
    13396-08007-C
    Nut-Flange
    • Fit Note: ISG + AMS 1.5
    • Production Date: 05/2020-11/2021
    $1.39 $1.06
    1
    Add To Cart
  • Wiring Assy-Battery
    91850D Hyundai 91850-S2110
    91850-S2110
    Wiring Assy-Battery
    • Fit Note: ISG + AMS 1.5
    • Fitting Vehicle Options: 2.4L Theta 2.. DOHC - GDI
    $831.69 $586.81
    1
    Add To Cart
  • 91850D Hyundai 91850-S2210
    91850-S2210
    Wiring Assy-Battery
    • Fit Note: ISG + AMS 1.5
    • Fitting Vehicle Options: 2.0L Theta 2.. DOHC - TCI/GDI
    $924.53 $652.31
    1
    Add To Cart
  • Wiring Assy-Fem
    91200M
    91840-S2080
    Wiring Assy-Fem
    • Fit Note: DRIVER SIDE - ADVANCED, DRL - DEDICATED LED TYPE, FRONT RADAR, NORTH AMERICA TYPE - FULL SYSTEM, LOW BEAM - LED
    • Production Date: 05/2018-06/2021
    • Fitting Vehicle Options: 2.4L Theta 2.. DOHC - GDI
    $994.00 $711.80
    1
    Add To Cart

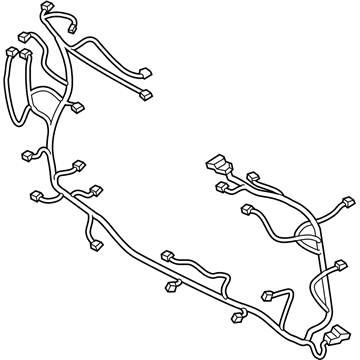

  • 91200M Hyundai 91840-S2120
    91840-S2120
    Wiring Assy-Fem
    • Fit Note: DRIVER SIDE - ADVANCED, LOW BEAM - LED, DRL - DEDICATED LED TYPE, FRONT RADAR, NORTH AMERICA TYPE - FULL SYSTEM
    • Production Date: 05/2018-06/2021
    • Fitting Vehicle Options: 2.4L Theta 2.. DOHC - GDI
    $1031.50 $721.39
    1
    Add To Cart
  • 91200M Hyundai 91840-S2180
    91840-S2180
    Wiring Assy-Fem
    • Fit Note: NORTH AMERICA TYPE - FULL SYSTEM, DRIVER SIDE - ADVANCED, LOW BEAM - LED, DRL - DEDICATED LED TYPE, FRONT RADAR
    • Fitting Vehicle Options: 2.0L Theta 2.. DOHC - TCI/GDI
    $1031.50 $721.39
    1
    Add To Cart
  • Wiring Assy-Tail Gate
    91960B
    91650-S2010
    Wiring Assy-Tail Gate
    • Fit Note: HEIGHT ADJUSTABLE POWER T/GATE SYSTEM, LIGHTING SOURCE - LED(LIGHT EMITTING DIODE), REAR VIEW CAMERA
    • Production Date: 05/2018-11/2021
    $410.11 $296.99
    1
    Add To Cart
  • 91960B
    91650-S2020
    Wiring Assy-Tail Gate
    • Fit Note: HEIGHT ADJUSTABLE POWER T/GATE SYSTEM, LIGHTING SOURCE - LED(LIGHT EMITTING DIODE), SURROUND VIEW CAMERA
    • Production Date: 05/2018-11/2021
    $396.08 $286.83
    1
    Add To Cart
  • 91960B
    91650-S2030
    Wiring Assy-Tail Gate
    • Fit Note: HEIGHT ADJUSTABLE POWER T/GATE SYSTEM, REAR VIEW CAMERA, LIGHTING SOURCE - LED(LIGHT EMITTING DIODE)
    • Production Date: 05/2018-11/2021
    $410.11 $296.99
    1
    Add To Cart
  • 91960B
    91650-S2070
    Wiring Assy-Tail Gate
    • Fit Note: REAR VIEW CAMERA, HEIGHT ADJUSTABLE POWER T/GATE SYSTEM, LIGHTING SOURCE - LED(LIGHT EMITTING DIODE)
    • Production Date: 05/2018-11/2021
    $410.11 $296.99
    1
    Add To Cart
Genuine Hyundai Parts, the Right Choice
HyundaiPartsDeal.com offers the wholesale prices for genuine 2020 Hyundai Santa Fe parts. Parts like Miscellaneous Wiring are shipped directly from authorized Hyundai dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: DOHC - GDI, DOHC - TCI/GDI. Body: Wagon - 5Door 5P.
