3 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

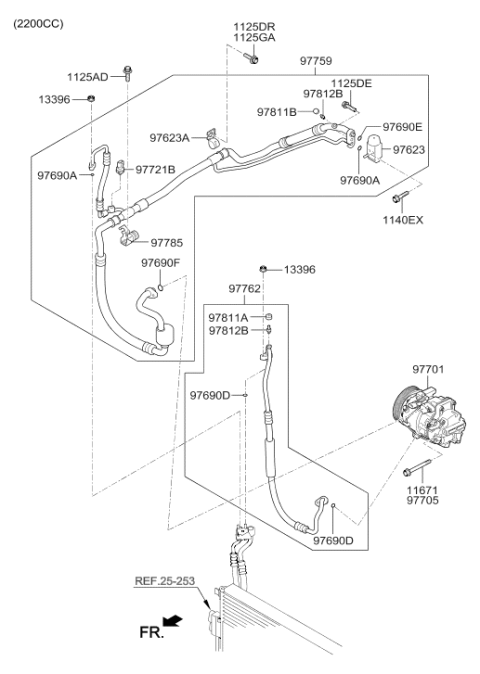

- 1.AIRCON SYSTEM-COOLER LINE (01/03)
- 2.AIRCON SYSTEM-COOLER LINE (02/03)
- 3.AIRCON SYSTEM-COOLER LINE (03/03)
Sort by:
Part Description
Part Code
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 1125AD
11254-06206-B
Bolt- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, DOUBLE PIPE IHX
FR COOLER - MANUAL A/CON, DOUBLE PIPE IHX
$1.08 $0.8010
- 1125DR
11251-06306-B
Bolt- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, DOUBLE PIPE IHX
FR COOLER - MANUAL A/CON, DOUBLE PIPE IHX
$1.16 $0.881
- 1140EX
11403-06457-K
Bolt- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, DOUBLE PIPE IHX
FR COOLER - MANUAL A/CON, DOUBLE PIPE IHX - Require Quantity: 2
- Package Quantity: 1
$1.08 $0.821
- 11671
11630-08006-A
Bolt- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR)
FR COOLER - MANUAL A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR) - Require Quantity: 4
- Package Quantity: 1
$9.34 $7.051
- 97714A
97714-3R000
Bolt- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR)
FR COOLER - MANUAL A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR) - Require Quantity: 3
- Package Quantity: 1
$8.69 $6.631
- 97743A
97647-33300
Bolt- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR)
FR COOLER - MANUAL A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR)
$3.73 $2.811
- 1125GA
11254-06306-B
Bolt(W/Washer)- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, DOUBLE PIPE IHX
FR COOLER - MANUAL A/CON, DOUBLE PIPE IHX
$1.11 $0.841
- 97705
11630-08006-PA
Bolt-Compressor MTG- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR)
FR COOLER - MANUAL A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR) - Require Quantity: 4
- Package Quantity: 1
$11.10 $8.381
- 1125DE
11293-08206-B
Bolt-Washer Assy- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, DOUBLE PIPE IHX
FR COOLER - MANUAL A/CON, DOUBLE PIPE IHX
$1.11 $0.841
- 97652B
97652-3M000
Bracket-Connector- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR)
FR COOLER - MANUAL A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR)
$10.95 $8.271
- 97623A
97793-2W000
Bracket-Suction Pipe- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, DOUBLE PIPE IHX
FR COOLER - MANUAL A/CON, DOUBLE PIPE IHX
$9.58 $7.311
- 97811A
97811-22301
Cap-Charge Valve- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR)
FR COOLER - MANUAL A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR)
$7.69 $5.811
- 97811B
97811-22351
Cap-Charge Valve- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, DOUBLE PIPE IHX
FR COOLER - MANUAL A/CON, DOUBLE PIPE IHX
$7.69 $5.811
- 97785
97785-2W000
Clip-Aircon Cooler Line- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, DOUBLE PIPE IHX
FR COOLER - MANUAL A/CON, DOUBLE PIPE IHX
$13.95 $10.641
- 97701
97701-1U500
Compressor Assy- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR)
FR COOLER - MANUAL A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR)
$952.85 $672.301
- Core-Charge Valve97812B
97812-22301
Core-Charge Valve- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR)
FR COOLER - MANUAL A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR) - Production Date: 11/2015-05/2018
$14.44 $10.901 - 97812B
97812-2L000
Core-Charge Valve- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, DOUBLE PIPE IHX
FR COOLER - MANUAL A/CON, DOUBLE PIPE IHX - Production Date: 11/2015-05/2018
$8.26 $6.241
- 97644C
97644-1U500
Disc & Hub Assy-A/C Compressor- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR)
FR COOLER - MANUAL A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR)
$166.61 $118.591
- 97722C
97722-2Y000
External Control Valve-Comp- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR)
FR COOLER - MANUAL A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR)
- 97788A
97788-2H000
Heat Cover-Expansion Valve- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, DOUBLE PIPE IHX
FR COOLER - MANUAL A/CON, DOUBLE PIPE IHX
$14.71 $11.111
- Hose & Tube Assy97759
97759-2W501
Hose & Tube Assy- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, DOUBLE PIPE IHX
FR COOLER - MANUAL A/CON, DOUBLE PIPE IHX - Fitting Vehicle Options: 2.4L Theta 2
$487.47 $343.941 - 97759
97759-4Z501
Hose & Tube Assy- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, DOUBLE PIPE IHX
- Fitting Vehicle Options: 2.0L Theta 2
$550.27 $388.251
- Hose-Discharge97762
97762-4Z500
Hose-Discharge- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR)
- Production Date: 11/2015-09/2016
- Fitting Vehicle Options: 2.0L Theta 2
$222.08 $158.071 - 97762
97762-2W501
Hose-Discharge- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR)
FR COOLER - MANUAL A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR) - Production Date: 08/2016-05/2018
- Fitting Vehicle Options: 2.4L Theta 2
$125.37 $89.231 - 97762
97762-2W500
Hose-Discharge- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR)
FR COOLER - MANUAL A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR) - Production Date: 11/2015-08/2016
- Fitting Vehicle Options: 2.4L Theta 2
- Replaced By: 97762-2W501
$125.37 $91.331 - 9776297762-4Z501
Hose-Discharge- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR)
- Production Date: 09/2016-05/2018
- Fitting Vehicle Options: 2.0L Theta 2
$116.77 $83.121
- Nut-Flange13396
13396-06007-K
Nut-Flange- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, DOUBLE PIPE IHX
FR COOLER - MANUAL A/CON, DOUBLE PIPE IHX - Require Quantity: 2
- Package Quantity: 1
$0.85 $0.651 - 1339613396-06007-K
Nut-Flange- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR)
FR COOLER - MANUAL A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR)
$0.85 $0.651
- 97690A
97690-34310
O-Ring- 5/16 INCH
- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, DOUBLE PIPE IHX
FR COOLER - MANUAL A/CON, DOUBLE PIPE IHX - Require Quantity: 2
- Package Quantity: 5
$1.79 $1.355
- 97690D
97690-34350
O-Ring- 1/2 INCH
- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR)
FR COOLER - MANUAL A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR) - Require Quantity: 2
- Package Quantity: 1
$1.79 $1.351
- 97690E
97690-34340
O-Ring- 5/8 INCH
- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, DOUBLE PIPE IHX
FR COOLER - MANUAL A/CON, DOUBLE PIPE IHX
$1.90 $1.441
- 97690F
97690-34330
O-Ring- 3/4 INCH
- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, DOUBLE PIPE IHX
FR COOLER - MANUAL A/CON, DOUBLE PIPE IHX
$1.90 $1.441
- 97643E
97643-1U500
Pulley Assy-A/Con Compressor- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR)
FR COOLER - MANUAL A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR)
$232.19 $165.271
- 97643A
97645-3K120
Ring-Snap- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR)
FR COOLER - MANUAL A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR)
$4.77 $3.611
- 97749B
97683-G6500
Ring-Snap- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR)
FR COOLER - MANUAL A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR)
$18.18 $13.861
- 97680C
97680-33300
Screw- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR)
FR COOLER - MANUAL A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR)
$0.85 $0.651
- 97707C
97707-3K120
Seal-A/C Compressor Shaft- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR)
FR COOLER - MANUAL A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR)
$44.19 $31.731
- 97721B
97721-3K000
Sensor-Pressure- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, DOUBLE PIPE IHX
FR COOLER - MANUAL A/CON, DOUBLE PIPE IHX
$261.18 $185.901
- 97623
97626-A6000
Valve-Expansion- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, DOUBLE PIPE IHX
FR COOLER - MANUAL A/CON, DOUBLE PIPE IHX
$133.21 $94.811
- 91633
97723-1U500
Wiring Assy-Compressor- Fit Note: FR COOLER - DUAL FULL AUTO A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR)
FR COOLER - MANUAL A/CON, EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR)
$20.95 $15.821
