Oil Pump & TQ/Conv-Auto fit your 2015 Hyundai Sonata Hybrid

Currently shopping for
2015 Hyundai Sonata Hybrid
Change Vehicle
Vehicle Options
Sedan - 4Door 5P; 2.4L Theta 2; DOHC - MPI; Gasoline - Unleaded; 6AT 2WD
Vehicle Options
Sedan - 4Door 5P; 2.4L Theta 2; DOHC - MPI; Gasoline - Unleaded; 6AT 2WD
2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

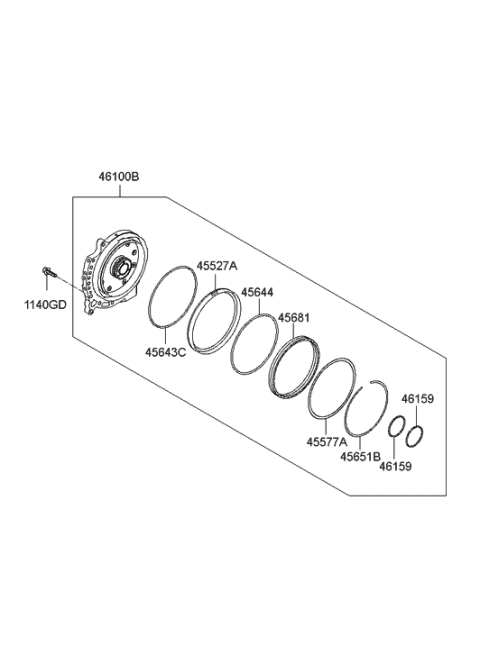

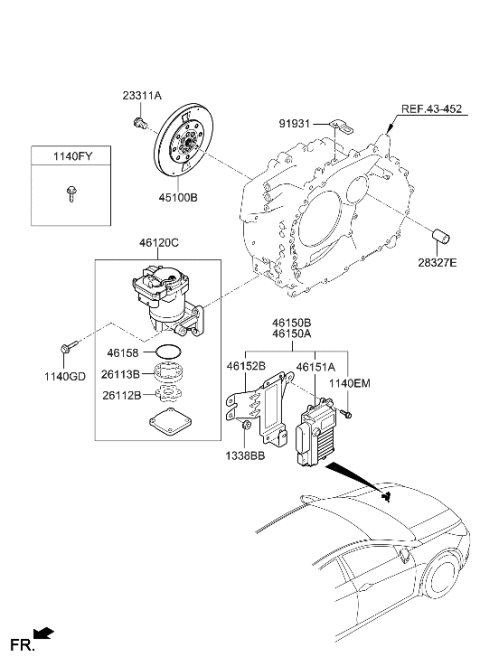

  • 1.OIL PUMP & TQ/CONV-AUTO (01/02)

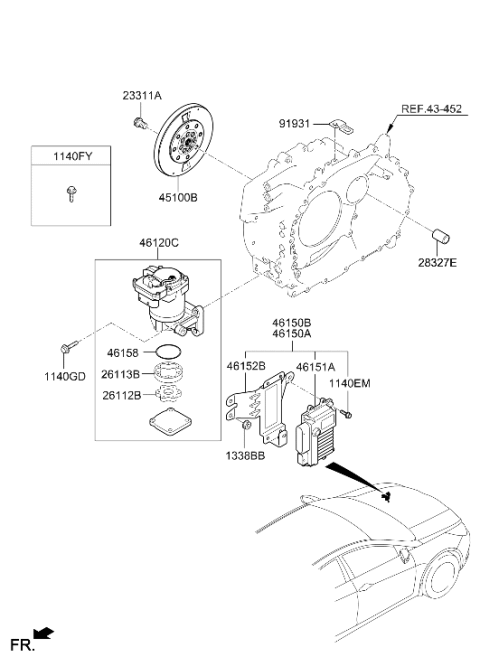

    2015 Hyundai Sonata Hybrid Oil Pump & TQ/Conv-Auto Diagram 1

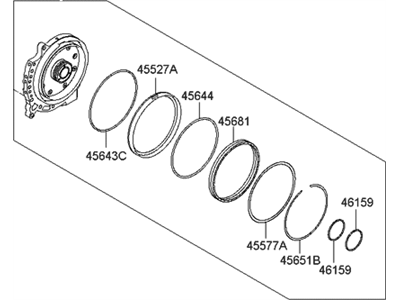

  • 2.OIL PUMP & TQ/CONV-AUTO (02/02)

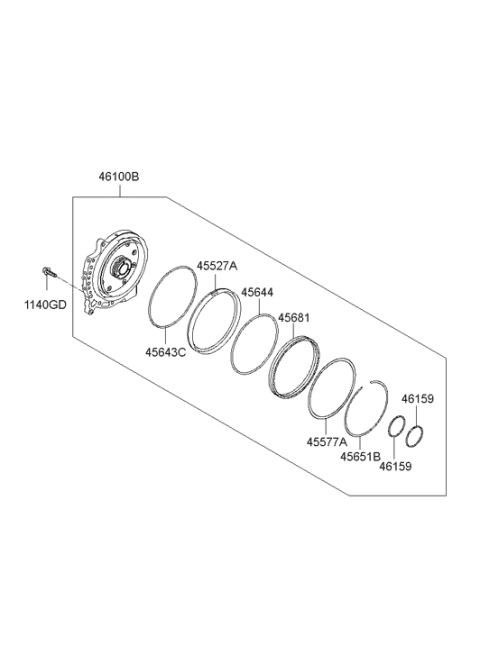

    2015 Hyundai Sonata Hybrid Oil Pump & TQ/Conv-Auto Diagram 2
Sort by:
Part Description
Part Code
Part No. & Part Description
Price & Qty.
Part No. &
Part Description

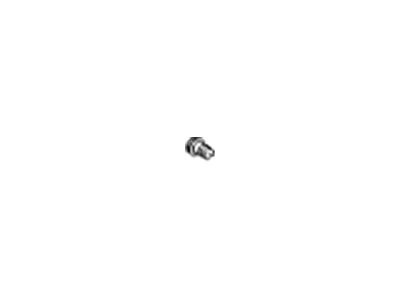

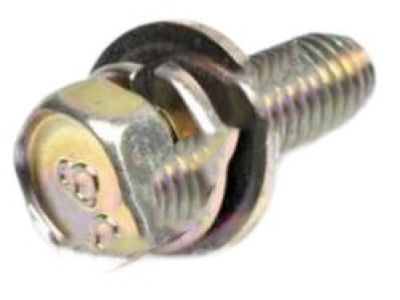

  • 1140EM Hyundai 11403-06186-K
    11403-06186-K
    Bolt
    • Fit Note: MODEL YEAR PACKAGE - 13MY
      MODEL YEAR PACKAGE - 13MY, MODEL YEAR PACKAGE - 14MY
      MODEL YEAR PACKAGE - 14MY
    • Require Quantity: 4
    • Package Quantity: 1
    $1.37 $1.04
    1
    Add To Cart
  • 1140FY Hyundai 11403-06146-K
    11403-06146-K
    Bolt
    • Fit Note: MODEL YEAR PACKAGE - 13MY
      MODEL YEAR PACKAGE - 14MY
    • Require Quantity: 18
    • Package Quantity: 1
    $0.69 $0.52
    1
    Add To Cart
  • 1140GD Hyundai 11403-08281
    11403-08281
    Bolt
    • Fit Note: MODEL YEAR PACKAGE - 13MY
      MODEL YEAR PACKAGE - 14MY
    • Require Quantity: 8
    • Package Quantity: 1
    $1.08 $0.82
    1
    Add To Cart
  • Bolt-Flywheel
    23311A
    23231-25200
    Bolt-Flywheel
    • Fit Note: MODEL YEAR PACKAGE - 13MY
      MODEL YEAR PACKAGE - 14MY
    • Production Date: 05/2012-01/2015
    • Require Quantity: 7
    • Package Quantity: 1
    $3.66 $2.79
    1
    Add To Cart
  • 23311A
    23231-2C010
    Bolt-Flywheel
    • Fit Note: MODEL YEAR PACKAGE - 13MY
    • Production Date: 11/2010-05/2012
    • Require Quantity: 7
    • Package Quantity: 1
    $7.15 $5.45
    1
    Add To Cart

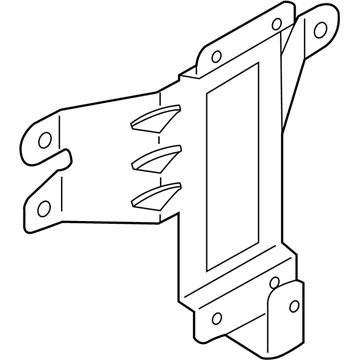

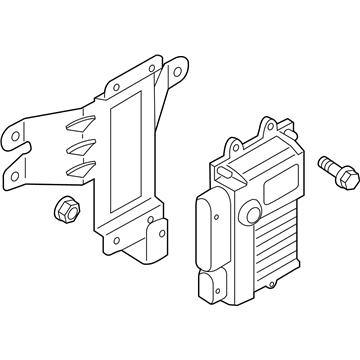

  • Bracket-Oil Pump Control Unit
    46152B Hyundai 46152-3D000
    46152-3D000
    Bracket-Oil Pump Control Unit
    • Fit Note: MODEL YEAR PACKAGE - 13MY
      MODEL YEAR PACKAGE - 13MY, MODEL YEAR PACKAGE - 14MY
      MODEL YEAR PACKAGE - 14MY
    • Production Date: 11/2010-01/2015
    $78.48 $56.35
    1
    Add To Cart
  • 46152B Hyundai 46152-3D500
    46152-3D500
    Bracket-Oil Pump Control Unit
    • Fit Note: MODEL YEAR PACKAGE - 13MY
      MODEL YEAR PACKAGE - 14MY
    • Production Date: 12/2013-01/2015
    $103.19 $75.18
    1
    Add To Cart
  • 45643C Hyundai 45665-3B600
    45665-3B600
    D-Ring
    • Fit Note: MODEL YEAR PACKAGE - 13MY
      MODEL YEAR PACKAGE - 14MY
    $13.50 $10.30
    1
    Add To Cart
  • 45644 Hyundai 45667-3B600
    45667-3B600
    D-Ring
    • Fit Note: MODEL YEAR PACKAGE - 13MY
      MODEL YEAR PACKAGE - 14MY
    $13.50 $10.30
    1
    Add To Cart

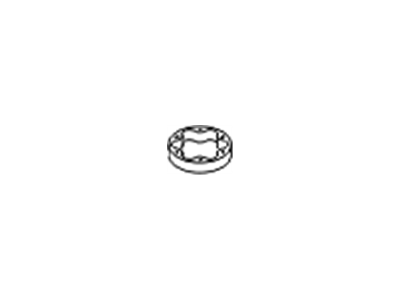

  • Gear-Oil Pump Drive
    26112B
    46161-3D000
    Gear-Oil Pump Drive
    • Fit Note: MODEL YEAR PACKAGE - 13MY
      MODEL YEAR PACKAGE - 14MY
    • Production Date: 11/2010-03/2014
    $29.69 $22.64
    1
    Add To Cart

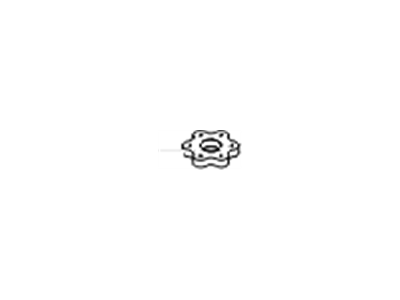

  • 26112B
    Hyundai 46161-3D001
    46161-3D001
    Gear-Oil Pump Drive
    • Fit Note: MODEL YEAR PACKAGE - 13MY
      MODEL YEAR PACKAGE - 14MY
    • Production Date: 03/2014-01/2015
  • 1338BB Hyundai 13386-08007-B
    13386-08007-B
    Nut
    • Fit Note: MODEL YEAR PACKAGE - 13MY
      MODEL YEAR PACKAGE - 13MY, MODEL YEAR PACKAGE - 14MY
      MODEL YEAR PACKAGE - 14MY
    • Require Quantity: 3
    • Package Quantity: 1
    $0.69 $0.52
    1
    Add To Cart
  • 45527A Hyundai 45662-3B600
    45662-3B600
    Piston-Brake
    • Fit Note: MODEL YEAR PACKAGE - 13MY
      MODEL YEAR PACKAGE - 14MY
    $37.02 $27.49
    1
    Add To Cart

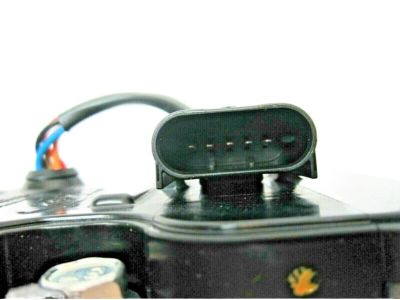

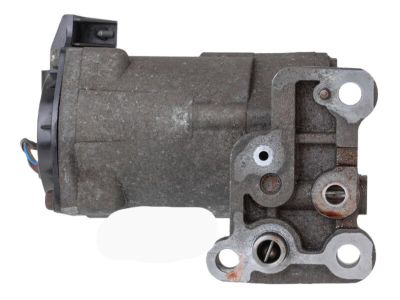

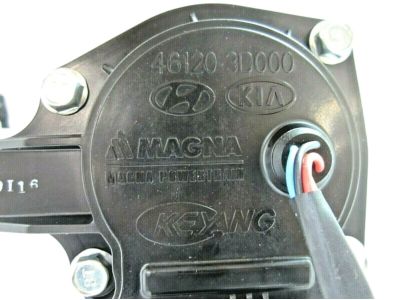

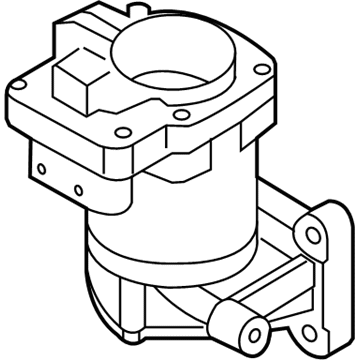

  • Pump Assy-Electric Oil
    46120C
    46120-3D000
    Pump Assy-Electric Oil
    • Fit Note: MODEL YEAR PACKAGE - 13MY
      MODEL YEAR PACKAGE - 14MY
    • Production Date: 11/2010-03/2014
    • Replaced By: 46120-3D001
    $876.34 $629.18
    1
    Add To Cart

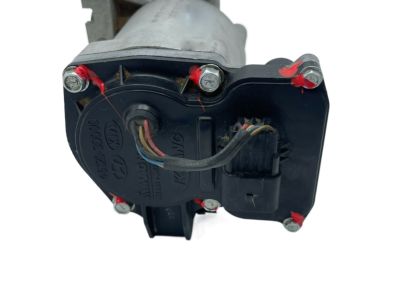

  • 46120C
    46120-3D001
    Pump Assy-Electric Oil
    • Fit Note: MODEL YEAR PACKAGE - 13MY
      MODEL YEAR PACKAGE - 14MY
    • Production Date: 03/2014-01/2015
    $876.34 $618.31
    1
    Add To Cart

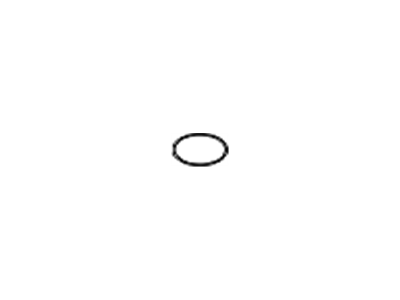

  • 46159 Hyundai 46194-3B600
    46194-3B600
    Ring-Seal
    • Fit Note: MODEL YEAR PACKAGE - 13MY
      MODEL YEAR PACKAGE - 14MY
    • Require Quantity: 2
    • Package Quantity: 1
    $15.73 $11.99
    1
    Add To Cart
  • 45651B Hyundai 45653-3B601
    45653-3B601
    Ring-Snap
    • Fit Note: MODEL YEAR PACKAGE - 13MY
      MODEL YEAR PACKAGE - 14MY
    $3.05 $2.32
    1
    Add To Cart
  • Set-Oil Pump Assy
    46100B Hyundai 46100-3D000
    46100-3D000
    Set-Oil Pump Assy
    • Fit Note: MODEL YEAR PACKAGE - 13MY
    • Production Date: 11/2010-05/2012
    $571.16 $410.07
    1
    Add To Cart
  • 46100B Hyundai 46100-3D100
    46100-3D100
    Set-Oil Pump Assy
    • Fit Note: MODEL YEAR PACKAGE - 13MY
      MODEL YEAR PACKAGE - 14MY
    • Production Date: 05/2012-01/2015
    $571.16 $410.07
    1
    Add To Cart
Genuine Hyundai Parts, the Right Choice
HyundaiPartsDeal.com offers the wholesale prices for genuine 2015 Hyundai Sonata Hybrid parts. Parts like Oil Pump & TQ/Conv-Auto are shipped directly from authorized Hyundai dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: DOHC - MPI. Body: Sedan - 4Door 5P.
