Drive Shaft (Front) fit your 2014 Hyundai Elantra Korean made
Currently shopping for
2014 Hyundai Elantra Korean made
Change VehicleVehicle Options
Gasoline - UnleadedVehicle Options
Gasoline - UnleadedCategories Close X
Currently selected
Transmission
- Auto Transmission Case
- Clutch & Release Fork
- Clutch Master Cylinder
- Drive Shaft (Front)
- Gear Shift Control-Manual
- Oil Pump & TQ/Conv-Auto
- Shift Lever Control (ATM)
- Shift Lever Control (MTM)
- Speedometer Driven Gear
- Transaxle Assy-Auto
- Transaxle Assy-Manual
- Transaxle Brake-Auto
- Transaxle Case-Manual
- Transaxle Clutch - Auto
- Transaxle Gear - Auto
- Transaxle Gear-Manual
- Transmission Valve Body
Other Categories
Body
Chassis
Electrical
Engine
Trim
Accessories
Parts Questions

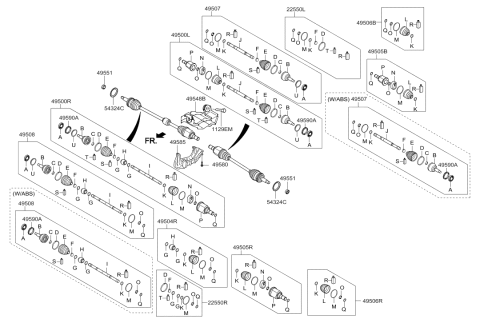

Diagram (1 of 1): DRIVE SHAFT (FRONT)
Enlarge Diagram
Sort by:
Part Description
Part Code
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- Band & Clip Set, LH22550L
49596-3X1A5
Band & Clip Set, LH- Location: Driver Side
- Fit Note: O.B.D(ON-BOARD DIAGNOSTICS) - B.O.B.D 2, ABS (ANTI LOCK BRK SYS)
- Fitting Vehicle Options: 1.8L NU.. 6AT 2WD, 2.0L NU.. 6AT 2WD
$53.69 $39.881 - 22550L49596-3X2A5
Band & Clip Set, LH- Location: Driver Side
- Fit Note: O.B.D(ON-BOARD DIAGNOSTICS) - B.O.B.D 2, ABS (ANTI LOCK BRK SYS)
- Fitting Vehicle Options: 1.8L NU.. 6MT 2WD
$52.74 $39.171 - 22550L49596-3X4A5
Band & Clip Set, LH- Location: Driver Side
- Fit Note: O.B.D(ON-BOARD DIAGNOSTICS) - B.O.B.D 2, ABS (ANTI LOCK BRK SYS)
- Fitting Vehicle Options: 2.0L NU.. 6MT 2WD
$53.97 $38.751
- Band & Clip Set, RH22550R
49596-3X1A0
Band & Clip Set, RH- Location: Passenger Side
- Fit Note: O.B.D(ON-BOARD DIAGNOSTICS) - B.O.B.D 2, ABS (ANTI LOCK BRK SYS)
- Fitting Vehicle Options: 1.8L NU.. 6AT 2WD, 2.0L NU.. 6AT 2WD
$52.74 $39.171 - 22550R49596-3X2A0
Band & Clip Set, RH- Location: Passenger Side
- Fit Note: O.B.D(ON-BOARD DIAGNOSTICS) - B.O.B.D 2, ABS (ANTI LOCK BRK SYS)
- Fitting Vehicle Options: 1.8L NU.. 6MT 2WD
$52.74 $39.171 - 22550R49596-3X4A0
Band & Clip Set, RH- Location: Passenger Side
- Fit Note: O.B.D(ON-BOARD DIAGNOSTICS) - B.O.B.D 2, ABS (ANTI LOCK BRK SYS)
- Fitting Vehicle Options: 2.0L NU.. 6MT 2WD
$58.63 $42.091
- 1129EM
11293-08306-K
Bolt- Fit Note: EMISSION REGULATION - CAL. 14, BRAZIL L6
EMISSION REGULATION - CAL. 15, BRAZIL L6
EMISSION REGULATION - CAL. 16, BRAZIL L6
EMISSION REGULATION - FED. 14, BRAZIL L6
EMISSION REGULATION - FED. 15, BRAZIL L6
EMISSION REGULATION - FED. 16, BRAZIL L6 - Require Quantity: 2
- Package Quantity: 1
$2.24 $1.691
- Bolt-Washer Assy49580
$2.50 $1.911 - 4958049591-1R000
Bolt-Washer Assy- Fitting Vehicle Options: 1.8L NU, 2.0L NU
- Require Quantity: 4
- Package Quantity: 1
$2.29 $1.751
- Boot Kit-Front Axle Diff Side, RH49506R
49595-3X1A0
Boot Kit-Front Axle Diff Side, RH- Location: Passenger Side
- Fit Note: O.B.D(ON-BOARD DIAGNOSTICS) - B.O.B.D 2, ABS (ANTI LOCK BRK SYS)
- Fitting Vehicle Options: 1.8L NU.. 6AT 2WD, 2.0L NU.. 6AT 2WD
$52.76 $37.881 - 49506R49595-3X2A0
Boot Kit-Front Axle Diff Side, RH- Location: Passenger Side
- Fit Note: O.B.D(ON-BOARD DIAGNOSTICS) - B.O.B.D 2, ABS (ANTI LOCK BRK SYS)
- Fitting Vehicle Options: 1.8L NU.. 6MT 2WD
$75.97 $54.541 - 49506R
49595-3X4A0
Boot Kit-Front Axle Diff Side, RH- Location: Passenger Side
- Fit Note: O.B.D(ON-BOARD DIAGNOSTICS) - B.O.B.D 2, ABS (ANTI LOCK BRK SYS)
- Fitting Vehicle Options: 2.0L NU.. 6MT 2WD
$79.52 $57.091
- Boot Kit-Front Axle Differential Side, LH49506B
49595-3X1A5
Boot Kit-Front Axle Differential Side, LH- Location: Driver Side
- Fit Note: O.B.D(ON-BOARD DIAGNOSTICS) - B.O.B.D 2, ABS (ANTI LOCK BRK SYS)
- Fitting Vehicle Options: 1.8L NU.. 6AT 2WD, 2.0L NU.. 6AT 2WD
$57.13 $41.021 - 49506B49595-3X2A5
Boot Kit-Front Axle Differential Side, LH- Location: Driver Side
- Fit Note: O.B.D(ON-BOARD DIAGNOSTICS) - B.O.B.D 2, ABS (ANTI LOCK BRK SYS)
- Fitting Vehicle Options: 1.8L NU.. 6MT 2WD
$77.77 $55.841 - 49506B
49595-3X4A5
Boot Kit-Front Axle Differential Side, LH- Location: Driver Side
- Fit Note: O.B.D(ON-BOARD DIAGNOSTICS) - B.O.B.D 2, ABS (ANTI LOCK BRK SYS)
- Fitting Vehicle Options: 2.0L NU.. 6MT 2WD
$77.77 $55.841
- 49585
$33.76 $24.241
- Damper Kit-FR Axle Dynamic, RH49504R
49597-3X1A0
Damper Kit-FR Axle Dynamic, RH- Location: Passenger Side
- Fit Note: O.B.D(ON-BOARD DIAGNOSTICS) - B.O.B.D 2, ABS (ANTI LOCK BRK SYS)
- Fitting Vehicle Options: 1.8L NU.. 6AT 2WD, 2.0L NU.. 6AT 2WD
$94.26 $67.091 - 49504R49597-3X2A0
Damper Kit-FR Axle Dynamic, RH- Location: Passenger Side
- Fit Note: O.B.D(ON-BOARD DIAGNOSTICS) - B.O.B.D 2, ABS (ANTI LOCK BRK SYS)
- Fitting Vehicle Options: 1.8L NU.. 6MT 2WD
$77.27 $55.481 - 49504R49597-3X4A0
Damper Kit-FR Axle Dynamic, RH- Location: Passenger Side
- Fit Note: O.B.D(ON-BOARD DIAGNOSTICS) - B.O.B.D 2, ABS (ANTI LOCK BRK SYS)
- Fitting Vehicle Options: 2.0L NU.. 6MT 2WD
$77.27 $55.481
- Heat Protector49548B
49548-3X100
Heat Protector- Fit Note: EMISSION REGULATION - FED. 14, BRAZIL L6
EMISSION REGULATION - FED. 15, BRAZIL L6
EMISSION REGULATION - FED. 16, BRAZIL L6 - Fitting Vehicle Options: 2.0L NU.. DOHC - GDI
$52.02 $37.351 - 49548B
49548-3X200
Heat Protector- Fit Note: EMISSION REGULATION - CAL. 14, BRAZIL L6
EMISSION REGULATION - CAL. 15, BRAZIL L6
EMISSION REGULATION - CAL. 16, BRAZIL L6
EMISSION REGULATION - FED. 14, BRAZIL L6
EMISSION REGULATION - FED. 15, BRAZIL L6
EMISSION REGULATION - FED. 16, BRAZIL L6 - Fitting Vehicle Options: 1.8L NU.. DOHC - MPI, 2.0L NU.. DOHC - GDI
$52.02 $37.351
- Joint & Shaft Kit-Front Axle Wheel Side, RH49508
49591-3X1B0
Joint & Shaft Kit-Front Axle Wheel Side, RH- Location: Passenger Side
- Fit Note: O.B.D(ON-BOARD DIAGNOSTICS) - B.O.B.D 2, ABS (ANTI LOCK BRK SYS)
- Fitting Vehicle Options: 1.8L NU.. 6AT 2WD, 2.0L NU.. 6AT 2WD
$354.39 $252.241 - 49508
49591-3X2B0
Joint & Shaft Kit-Front Axle Wheel Side, RH- Location: Passenger Side
- Fit Note: O.B.D(ON-BOARD DIAGNOSTICS) - B.O.B.D 2, ABS (ANTI LOCK BRK SYS)
- Fitting Vehicle Options: 1.8L NU.. 6MT 2WD
- Replaced By: 49591-3X2A0
$430.45 $311.721 - 4950849591-3X4B0
Joint & Shaft Kit-Front Axle Wheel Side, RH- Location: Passenger Side
- Fit Note: O.B.D(ON-BOARD DIAGNOSTICS) - B.O.B.D 2, ABS (ANTI LOCK BRK SYS)
- Fitting Vehicle Options: 2.0L NU.. 6MT 2WD
- Replaced By: 49591-3X4A0
$516.87 $371.091
- Joint & Shaft Kit-Front Axle Wheel, LH49507
49591-3X1B5
Joint & Shaft Kit-Front Axle Wheel, LH- Location: Driver Side
- Fit Note: O.B.D(ON-BOARD DIAGNOSTICS) - B.O.B.D 2, ABS (ANTI LOCK BRK SYS)
- Fitting Vehicle Options: 1.8L NU.. 6AT 2WD, 2.0L NU.. 6AT 2WD
$354.39 $252.241 - 4950749591-3X2B5
Joint & Shaft Kit-Front Axle Wheel, LH- Location: Driver Side
- Fit Note: O.B.D(ON-BOARD DIAGNOSTICS) - B.O.B.D 2, ABS (ANTI LOCK BRK SYS)
- Fitting Vehicle Options: 1.8L NU.. 6MT 2WD
- Replaced By: 49591-3X2A5
$434.68 $314.781 - 4950749591-3X4B5
Joint & Shaft Kit-Front Axle Wheel, LH- Location: Driver Side
- Fit Note: O.B.D(ON-BOARD DIAGNOSTICS) - B.O.B.D 2, ABS (ANTI LOCK BRK SYS)
- Fitting Vehicle Options: 2.0L NU.. 6MT 2WD
- Replaced By: 49591-3X4A5
$499.40 $360.721
- Joint Kit-Front Axle Differential Side, LH49505B
49592-3X1A5
Joint Kit-Front Axle Differential Side, LH- Location: Driver Side
- Fit Note: O.B.D(ON-BOARD DIAGNOSTICS) - B.O.B.D 2, ABS (ANTI LOCK BRK SYS)
- Fitting Vehicle Options: 1.8L NU.. 6AT 2WD, 2.0L NU.. 6AT 2WD
$387.45 $275.771 - 49505B49592-3X2A5
Joint Kit-Front Axle Differential Side, LH- Location: Driver Side
- Fit Note: O.B.D(ON-BOARD DIAGNOSTICS) - B.O.B.D 2, ABS (ANTI LOCK BRK SYS)
- Fitting Vehicle Options: 1.8L NU.. 6MT 2WD
$387.45 $275.771 - 49505B49592-3X4A5
Joint Kit-Front Axle Differential Side, LH- Location: Driver Side
- Fit Note: O.B.D(ON-BOARD DIAGNOSTICS) - B.O.B.D 2, ABS (ANTI LOCK BRK SYS)
- Fitting Vehicle Options: 2.0L NU.. 6MT 2WD
$387.45 $275.771
- Joint Kit-Front Axle Differential Side, RH49505R
49592-3X2A0
Joint Kit-Front Axle Differential Side, RH- Location: Passenger Side
- Fit Note: O.B.D(ON-BOARD DIAGNOSTICS) - B.O.B.D 2, ABS (ANTI LOCK BRK SYS)
- Fitting Vehicle Options: 1.8L NU.. 6MT 2WD
$372.63 $265.221 - 49505R49592-3X1A0
Joint Kit-Front Axle Differential Side, RH- Location: Passenger Side
- Fit Note: O.B.D(ON-BOARD DIAGNOSTICS) - B.O.B.D 2, ABS (ANTI LOCK BRK SYS)
- Fitting Vehicle Options: 1.8L NU.. 6AT 2WD, 2.0L NU.. 6AT 2WD
$372.63 $265.221 - 49505R49592-3X4A0
Joint Kit-Front Axle Differential Side, RH- Location: Passenger Side
- Fit Note: O.B.D(ON-BOARD DIAGNOSTICS) - B.O.B.D 2, ABS (ANTI LOCK BRK SYS)
- Fitting Vehicle Options: 2.0L NU.. 6MT 2WD
$366.03 $260.531
- Nut-Castle49551
49551-3X000
Nut-Castle- Fit Note: O.B.D(ON-BOARD DIAGNOSTICS) - B.O.B.D 2, ABS (ANTI LOCK BRK SYS)
- Require Quantity: 2
- Package Quantity: 1
$13.23 $9.841 - 49551
49551-3S000
Nut-Castle- SAM-JIN
- Fit Note: O.B.D(ON-BOARD DIAGNOSTICS) - B.O.B.D 2, ABS (ANTI LOCK BRK SYS)
- Require Quantity: 2
- Package Quantity: 1
$13.23 $10.091
- Shaft Assy-Drive, LH49500L
49500-3X100
Shaft Assy-Drive, LH- Location: Driver Side
- Fit Note: O.B.D(ON-BOARD DIAGNOSTICS) - B.O.B.D 2, ABS (ANTI LOCK BRK SYS)
- Fitting Vehicle Options: 1.8L NU.. 6AT 2WD, 2.0L NU.. 6AT 2WD
$522.60 $368.721 - 49500L
49500-3X200
Shaft Assy-Drive, LH- Location: Driver Side
- Fit Note: O.B.D(ON-BOARD DIAGNOSTICS) - B.O.B.D 2, ABS (ANTI LOCK BRK SYS)
- Fitting Vehicle Options: 1.8L NU.. 6MT 2WD
$550.06 $388.101 - 49500L
49500-3X400
Shaft Assy-Drive, LH- Location: Driver Side
- Fit Note: O.B.D(ON-BOARD DIAGNOSTICS) - B.O.B.D 2, ABS (ANTI LOCK BRK SYS)
- Fitting Vehicle Options: 2.0L NU.. 6MT 2WD
$522.56 $368.701
- Shaft Assy-Drive, RH49500R
49501-3X100
Shaft Assy-Drive, RH- Location: Passenger Side
- Fit Note: O.B.D(ON-BOARD DIAGNOSTICS) - B.O.B.D 2, ABS (ANTI LOCK BRK SYS)
- Fitting Vehicle Options: 1.8L NU.. 6AT 2WD, 2.0L NU.. 6AT 2WD
$550.06 $388.101 - 49500R
49501-3X200
Shaft Assy-Drive, RH- Location: Passenger Side
- Fit Note: O.B.D(ON-BOARD DIAGNOSTICS) - B.O.B.D 2, ABS (ANTI LOCK BRK SYS)
- Fitting Vehicle Options: 1.8L NU.. 6MT 2WD
$550.06 $388.101 - 49500R
49501-3X400
Shaft Assy-Drive, RH- Location: Passenger Side
- Fit Note: O.B.D(ON-BOARD DIAGNOSTICS) - B.O.B.D 2, ABS (ANTI LOCK BRK SYS)
- Fitting Vehicle Options: 2.0L NU.. 6MT 2WD
$483.40 $344.071
- 49590A
49590-2H000
Tone Wheel- Fit Note: O.B.D(ON-BOARD DIAGNOSTICS) - B.O.B.D 2, ABS (ANTI LOCK BRK SYS)
- Require Quantity: 2
- Package Quantity: 1
$35.27 $26.201
- 54324C
49536-A5000
Washer-INR- Location: Inner
- Fit Note: O.B.D(ON-BOARD DIAGNOSTICS) - B.O.B.D 2, ABS (ANTI LOCK BRK SYS)
- Require Quantity: 2
- Package Quantity: 1
$10.34 $7.811
Genuine Hyundai Parts, the Right Choice
HyundaiPartsDeal.com offers the wholesale prices for genuine 2014 Hyundai Elantra Korean made parts. Parts like Drive Shaft (Front) are shipped directly from authorized Hyundai dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: DOHC - GDI, DOHC - MPI. Body: Coupe - 2Door 5P, Sedan - 4Door 5P.
