Diagram (1 of 1): CONTROL WIRING

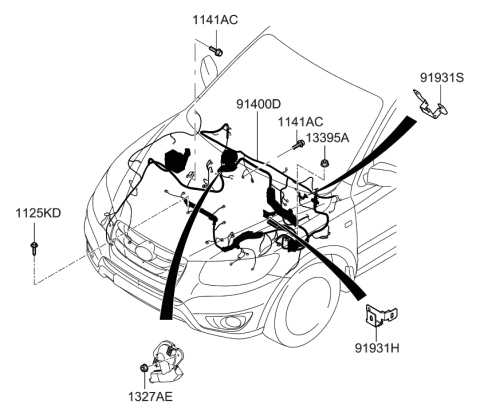

2009 Hyundai Santa Fe Control Wiring Diagram
Enlarge Diagram
Sort by:
Part Description
Part Code
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1125KD
    Hyundai 11254-06256-B
    Hyundai 11254-06256-B
    11254-06256-B
    Bolt
    • Fit Note: MODEL YEAR PACKAGE - 12MY
    • Replaced By: 11254-06256-K
    $0.68 $0.52
    10
    Add To Cart
  • Bolt
    1141AC
    Hyundai 11413-06207-C
    Hyundai 11413-06207-C
    11413-06207-C
    Bolt
    • Fit Note: MODEL YEAR PACKAGE - 12MY
    • Production Date: 10/2009-11/2010
    • Require Quantity: 6
    • Package Quantity: 1
    $1.95 $1.47
    1
    Add To Cart
  • 1141AC Hyundai 11415-06167-B
    11415-06167-B
    Bolt
    • Fit Note: MODEL YEAR PACKAGE - 12MY
    • Production Date: 10/2009-11/2010
    • Require Quantity: 6
    • Package Quantity: 1
    $1.06 $0.80
    1
    Add To Cart
  • 1141AC
    Hyundai 11415-06163
    Hyundai 11415-06163
    11415-06163
    Bolt
    • Fit Note: MODEL YEAR PACKAGE - 12MY
    • Fitting Vehicle Options: 2.4L Theta 2
    $0.79 $0.60
    1
    Add To Cart
  • 13395A Hyundai 13396-06007-B
    13396-06007-B
    Nut-Flange
    • Fit Note: MODEL YEAR PACKAGE - 12MY
    • Require Quantity: 2
    • Package Quantity: 1
    $0.85 $0.65
    1
    Add To Cart
  • 1327AE Hyundai 13271-06007-B
    13271-06007-B
    Nut-Washer Assy
    • Fit Note: MODEL YEAR PACKAGE - 12MY
    • Require Quantity: 3
    • Package Quantity: 10
    • Replaced By: 65189-3M000
    $1.08 $0.82
    10
    Add To Cart
  • Wiring Assy-Control
    91400D Hyundai 91405-0W030
    91405-0W030
    Wiring Assy-Control
    • Fit Note: NORTH AMERICA TYPE - FULL SYSTEM, W/ WIPER DEICER, AUTO CRUISE CONTROL - CONVENTIONAL
      NORTH AMERICA TYPE - FULL SYSTEM, W/ WIPER DEICER, AUTO CRUISE CONTROL - CONVENTIONAL, MODEL YEAR PACKAGE - 12MY
    • Production Date: 10/2009-08/2010
    • Fitting Vehicle Options: 3.5L Lambda 2.. 6AT 4WD
    $4603.87 $3219.76
    1
    Add To Cart
  • 91400D Hyundai 91405-0W040
    91405-0W040
    Wiring Assy-Control
    • Fit Note: NORTH AMERICA TYPE - FULL SYSTEM, W/ WIPER DEICER, AUTO CRUISE CONTROL - CONVENTIONAL
      NORTH AMERICA TYPE - FULL SYSTEM, W/ WIPER DEICER, AUTO CRUISE CONTROL - CONVENTIONAL, MODEL YEAR PACKAGE - 12MY
    • Production Date: 10/2009-07/2010
    • Fitting Vehicle Options: 3.5L Lambda 2.. 6AT 2WD
    $4816.29 $3368.32
    1
    Add To Cart
  • 91400D
    91405-0W070
    Wiring Assy-Control
    • Fit Note: NORTH AMERICA TYPE - WIRING ONLY, AUTO CRUISE CONTROL - CONVENTIONAL, W/ WIPER DEICER
    • Production Date: 10/2009-07/2010
    • Fitting Vehicle Options: 3.5L Lambda 2.. 6AT 4WD
    $4603.87 $3296.83
    1
    Add To Cart
  • 91400D
    91405-0W080
    Wiring Assy-Control
    • Fit Note: NORTH AMERICA TYPE - WIRING ONLY, AUTO CRUISE CONTROL - CONVENTIONAL, W/ WIPER DEICER
    • Production Date: 10/2009-07/2010
    • Fitting Vehicle Options: 3.5L Lambda 2.. 6AT 2WD
    $4084.73 $2925.07
    1
    Add To Cart
  • 91400D
    91415-0W020
    Wiring Assy-Control
    • Fit Note: NORTH AMERICA TYPE - WIRING ONLY, ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER
      NORTH AMERICA TYPE - WIRING ONLY, ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, MODEL YEAR PACKAGE - 12MY
    • Production Date: 10/2009-07/2010
    • Fitting Vehicle Options: 2.4L Theta 2.. 6AT 2WD
    $5058.60 $3622.46
    1
    Add To Cart
  • 91400D Hyundai 91415-0W040
    91415-0W040
    Wiring Assy-Control
    • Fit Note: NORTH AMERICA TYPE - WIRING ONLY, ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER
    • Fitting Vehicle Options: 2.4L Theta 2.. 6MT 2WD
    $4290.23 $3000.41
    1
    Add To Cart
  • 91400D Hyundai 91415-0W050
    91415-0W050
    Wiring Assy-Control
    • Fit Note: NORTH AMERICA TYPE - WIRING ONLY, ESC (ELECTRONIC STABILITY CONTROL), MODEL YEAR PACKAGE - 12MY, W/ WIPER DEICER
      NORTH AMERICA TYPE - WIRING ONLY, ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER
    • Production Date: 10/2009-07/2010
    • Fitting Vehicle Options: 2.4L Theta 2.. 6AT 2WD
    $5058.60 $3537.78
    1
    Add To Cart
  • 91400D Hyundai 91415-0W060
    91415-0W060
    Wiring Assy-Control
    • Fit Note: NORTH AMERICA TYPE - WIRING ONLY, ESC (ELECTRONIC STABILITY CONTROL), MODEL YEAR PACKAGE - 12MY, W/ WIPER DEICER
      NORTH AMERICA TYPE - WIRING ONLY, ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER
    • Production Date: 10/2009-11/2010
    • Fitting Vehicle Options: 2.4L Theta 2.. 6AT 4WD
    $5058.60 $3537.78
    1
    Add To Cart
  • 91400D
    91415-0W120
    Wiring Assy-Control
    • Fit Note: ESC (ELECTRONIC STABILITY CONTROL), NORTH AMERICA TYPE - FULL SYSTEM, NORTH AMERICA TYPE - WIRING ONLY, W/ WIPER DEICER
    • Production Date: 10/2009-07/2010
    • Fitting Vehicle Options: 2.4L Theta 2.. 6AT 4WD
    $4290.23 $3072.23
    1
    Add To Cart
