Engine Wiring fit your 2008 Hyundai Entourage
Currently shopping for
2008 Hyundai Entourage
Change VehicleVehicle Options
Wagon Long - 7P; 3.8L Lambda; DOHC - MPI; Gasoline - Unleaded; 5AT 2WDVehicle Options
Wagon Long - 7P; 3.8L Lambda; DOHC - MPI; Gasoline - Unleaded; 5AT 2WDCategories Close X
Currently selected
Electrical
- Aircon System-Cooler Line, Front
- Aircon System-Cooler Line, Rear
- Antenna
- Audio
- Control Wiring
- Engine Wiring
- Floor Wiring
- Head Lamp
- Heater System-Duct & Hose
- Heater System-Heater & Evaporator
- Heater System-Heater Control
- Horn
- Information System
- Instrument Cluster
- License Plate & Interior Lamp
- Main Wiring
- Miscellaneous Wiring
- Multifunction Switch
- Rear Combination Lamp
- Relay & Module
- Room Lamp
- Speaker
- Switch
- Windshield Washer
- Windshield Wiper
- Windshield Wiper-Rear
Other Categories
Body
Chassis
Engine
Transmission
Trim
Parts Questions
2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

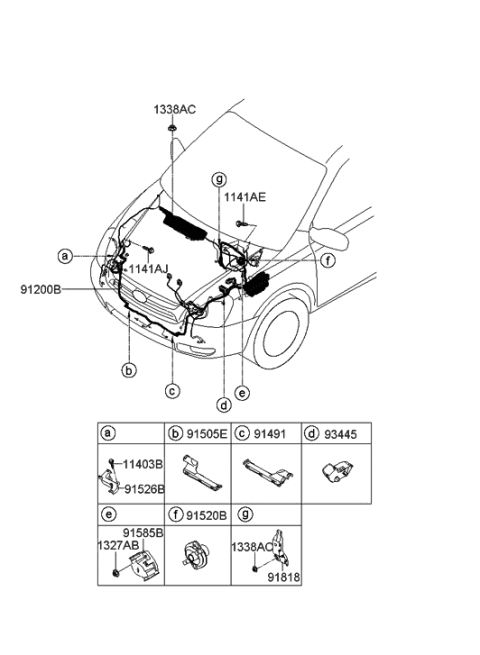

- 1.ENGINE WIRING (01/02)
- 2.ENGINE WIRING (02/02)
Sort by:
Part Description
Part Code
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 1141AE
11415-06143
Bolt- Fit Note: ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S), ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, CONVENTIONAL - PROJECTION, TIRE PRESSURE MONITORG SYS - HIGH LINE, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON
ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, CONVENTIONAL - PROJECTION, TIRE PRESSURE MONITORG SYS - HIGH LINE, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON, ADJUSTABLE PEDAL-ACCEL & BRAKE, ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S)
ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, TIRE PRESSURE MONITORG SYS - HIGH LINE, ADJUSTABLE PEDAL-ACCEL & BRAKE, ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S), CONVENTIONAL - PROJECTION, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON - Require Quantity: 2
- Package Quantity: 1
$1.06 $0.801
- 1141AJ
11415-06147-B
Bolt- Fit Note: ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S), ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, CONVENTIONAL - PROJECTION, TIRE PRESSURE MONITORG SYS - HIGH LINE, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON
ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, CONVENTIONAL - PROJECTION, TIRE PRESSURE MONITORG SYS - HIGH LINE, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON, ADJUSTABLE PEDAL-ACCEL & BRAKE, ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S)
ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, TIRE PRESSURE MONITORG SYS - HIGH LINE, ADJUSTABLE PEDAL-ACCEL & BRAKE, ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S), CONVENTIONAL - PROJECTION, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON - Require Quantity: 7
- Package Quantity: 1
$1.06 $0.801
- 11403B
11403-06126-B
Bolt-Flange- Fit Note: ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S), ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, CONVENTIONAL - PROJECTION, TIRE PRESSURE MONITORG SYS - HIGH LINE, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON
ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, CONVENTIONAL - PROJECTION, TIRE PRESSURE MONITORG SYS - HIGH LINE, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON, ADJUSTABLE PEDAL-ACCEL & BRAKE, ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S)
ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, TIRE PRESSURE MONITORG SYS - HIGH LINE, ADJUSTABLE PEDAL-ACCEL & BRAKE, ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S), CONVENTIONAL - PROJECTION, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON - Require Quantity: 4
- Package Quantity: 1
$3.65 $2.751
- 99705A$1.10 $0.831
- 18980J
$1.18 $0.891
- 18980C
$1.23 $0.931
- 18980D
$1.15 $0.861
- 18980F
$1.23 $0.931
- 18980A
$2.85 $2.161
- 91826
$7.44 $5.611
- 99105
$7.55 $5.701
- 99106
$5.63 $4.251
- 91520B91995-4D210
Grommet-Main Wiring- Fit Note: ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S), ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, CONVENTIONAL - PROJECTION, TIRE PRESSURE MONITORG SYS - HIGH LINE, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON
ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, CONVENTIONAL - PROJECTION, TIRE PRESSURE MONITORG SYS - HIGH LINE, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON, ADJUSTABLE PEDAL-ACCEL & BRAKE, ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S)
ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, TIRE PRESSURE MONITORG SYS - HIGH LINE, ADJUSTABLE PEDAL-ACCEL & BRAKE, ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S), CONVENTIONAL - PROJECTION, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON
$10.48 $8.001

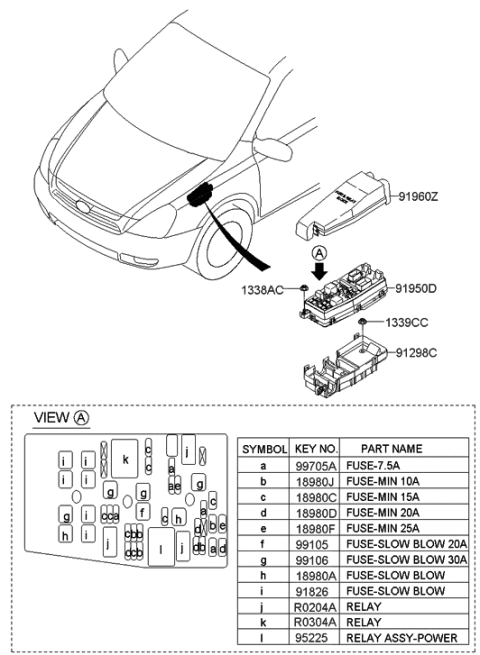

- Junction Box Assy-Engine Room91950D
91950-4D040
Junction Box Assy-Engine Room- Fit Note: CONVENTIONAL - PROJECTION
- Production Date: 10/2006-06/2008
- Replaced By: 91950-4D172--DS
$980.95 $702.461 - 91950D
91950-4D110
Junction Box Assy-Engine Room- Fit Note: CONVENTIONAL - PROJECTION
- Production Date: 10/2006-06/2008
$1027.08 $718.301
- 91298C
$23.55 $17.781
- 1327AB
13271-06006-B
Nut(W/Washer)- Fit Note: ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S), ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, CONVENTIONAL - PROJECTION, TIRE PRESSURE MONITORG SYS - HIGH LINE, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON
ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, CONVENTIONAL - PROJECTION, TIRE PRESSURE MONITORG SYS - HIGH LINE, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON, ADJUSTABLE PEDAL-ACCEL & BRAKE, ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S)
ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, TIRE PRESSURE MONITORG SYS - HIGH LINE, ADJUSTABLE PEDAL-ACCEL & BRAKE, ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S), CONVENTIONAL - PROJECTION, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON - Require Quantity: 2
- Package Quantity: 1
- Replaced By: 65189-3M000
$1.08 $0.821
- 1338AC
$0.63 $0.481
- 1339CC
$0.71 $0.541
- 9149191994-4D220
Protector-Wiring- Fit Note: ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S), ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, CONVENTIONAL - PROJECTION, TIRE PRESSURE MONITORG SYS - HIGH LINE, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON
ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, CONVENTIONAL - PROJECTION, TIRE PRESSURE MONITORG SYS - HIGH LINE, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON, ADJUSTABLE PEDAL-ACCEL & BRAKE, ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S)
ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, TIRE PRESSURE MONITORG SYS - HIGH LINE, ADJUSTABLE PEDAL-ACCEL & BRAKE, ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S), CONVENTIONAL - PROJECTION, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON
$2.71 $2.071
- 91505E91994-4D230
Protector-Wiring- Fit Note: ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S), ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, CONVENTIONAL - PROJECTION, TIRE PRESSURE MONITORG SYS - HIGH LINE, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON
ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, CONVENTIONAL - PROJECTION, TIRE PRESSURE MONITORG SYS - HIGH LINE, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON, ADJUSTABLE PEDAL-ACCEL & BRAKE, ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S)
ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, TIRE PRESSURE MONITORG SYS - HIGH LINE, ADJUSTABLE PEDAL-ACCEL & BRAKE, ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S), CONVENTIONAL - PROJECTION, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON
$2.71 $2.071
- 91526B91994-4D240
Protector-Wiring- Fit Note: ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S), ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, CONVENTIONAL - PROJECTION, TIRE PRESSURE MONITORG SYS - HIGH LINE, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON
ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, CONVENTIONAL - PROJECTION, TIRE PRESSURE MONITORG SYS - HIGH LINE, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON, ADJUSTABLE PEDAL-ACCEL & BRAKE, ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S)
ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, TIRE PRESSURE MONITORG SYS - HIGH LINE, ADJUSTABLE PEDAL-ACCEL & BRAKE, ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S), CONVENTIONAL - PROJECTION, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON
$1.77 $1.351
- 91585B91994-4D250
Protector-Wiring- Fit Note: ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S), ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, CONVENTIONAL - PROJECTION, TIRE PRESSURE MONITORG SYS - HIGH LINE, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON
ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, CONVENTIONAL - PROJECTION, TIRE PRESSURE MONITORG SYS - HIGH LINE, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON, ADJUSTABLE PEDAL-ACCEL & BRAKE, ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S)
ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, TIRE PRESSURE MONITORG SYS - HIGH LINE, ADJUSTABLE PEDAL-ACCEL & BRAKE, ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S), CONVENTIONAL - PROJECTION, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON
$2.45 $1.871
- 9181891994-4D210
Protector-Wiring- Fit Note: ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S), ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, CONVENTIONAL - PROJECTION, TIRE PRESSURE MONITORG SYS - HIGH LINE, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON
ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, CONVENTIONAL - PROJECTION, TIRE PRESSURE MONITORG SYS - HIGH LINE, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON, ADJUSTABLE PEDAL-ACCEL & BRAKE, ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S)
ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, TIRE PRESSURE MONITORG SYS - HIGH LINE, ADJUSTABLE PEDAL-ACCEL & BRAKE, ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S), CONVENTIONAL - PROJECTION, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON
$3.53 $2.691
- 9344591994-4D260
Protector-Wiring- Fit Note: ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S), ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, CONVENTIONAL - PROJECTION, TIRE PRESSURE MONITORG SYS - HIGH LINE, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON
ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, CONVENTIONAL - PROJECTION, TIRE PRESSURE MONITORG SYS - HIGH LINE, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON, ADJUSTABLE PEDAL-ACCEL & BRAKE, ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S)
ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, TIRE PRESSURE MONITORG SYS - HIGH LINE, ADJUSTABLE PEDAL-ACCEL & BRAKE, ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S), CONVENTIONAL - PROJECTION, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON
$2.31 $1.761
- R0204A
$28.06 $21.401
- R0304A
$28.03 $21.381
- 95225
$47.74 $34.281
- 91960Z
$34.05 $24.451
- Wiring Assy-Front91200B91200-4J043
Wiring Assy-Front- Fit Note: ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, CONVENTIONAL - PROJECTION, TIRE PRESSURE MONITORG SYS - HIGH LINE, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON, ADJUSTABLE PEDAL-ACCEL & BRAKE, ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S)
- Production Date: 10/2006-06/2007
$2289.60 $1639.581 - 91200B91200-4J045
Wiring Assy-Front- Fit Note: ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, CONVENTIONAL - PROJECTION, TIRE PRESSURE MONITORG SYS - HIGH LINE, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON, ADJUSTABLE PEDAL-ACCEL & BRAKE, ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S)
- Production Date: 06/2007-06/2008
$2940.89 $2105.971 - 91200B91200-4J046
Wiring Assy-Front- Fit Note: ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, CONVENTIONAL - PROJECTION, TIRE PRESSURE MONITORG SYS - HIGH LINE, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON, ADJUSTABLE PEDAL-ACCEL & BRAKE, ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S)
- Production Date: 06/2008
- 91200B91200-4J063
Wiring Assy-Front- Fit Note: ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S), ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, CONVENTIONAL - PROJECTION, TIRE PRESSURE MONITORG SYS - HIGH LINE, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON
- Production Date: 10/2006-05/2007
$2284.87 $1636.201 - 91200B91200-4J064
Wiring Assy-Front- Fit Note: ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S), ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, CONVENTIONAL - PROJECTION, TIRE PRESSURE MONITORG SYS - HIGH LINE, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON
- Production Date: 05/2007-06/2007
- 91200B91200-4J066
Wiring Assy-Front- Fit Note: ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S), ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, CONVENTIONAL - PROJECTION, TIRE PRESSURE MONITORG SYS - HIGH LINE, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON
- Production Date: 06/2007-06/2008
$2284.87 $1636.201 - 91200B91200-4J067
Wiring Assy-Front- Fit Note: ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S), ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, CONVENTIONAL - PROJECTION, TIRE PRESSURE MONITORG SYS - HIGH LINE, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON
- Production Date: 06/2008
- 91200B91205-4D033
Wiring Assy-Front- Fit Note: ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, TIRE PRESSURE MONITORG SYS - HIGH LINE, ADJUSTABLE PEDAL-ACCEL & BRAKE, ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S), CONVENTIONAL - PROJECTION, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON
- Production Date: 10/2006-06/2007
$2712.37 $1942.331 - 91200B91205-4D035
Wiring Assy-Front- Fit Note: ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, TIRE PRESSURE MONITORG SYS - HIGH LINE, ADJUSTABLE PEDAL-ACCEL & BRAKE, ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S), CONVENTIONAL - PROJECTION, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON
- Production Date: 06/2007-06/2008
$2719.77 $1947.631 - 91200B91205-4D036
Wiring Assy-Front- Fit Note: ESC (ELECTRONIC STABILITY CONTROL), W/ WIPER DEICER, TIRE PRESSURE MONITORG SYS - HIGH LINE, ADJUSTABLE PEDAL-ACCEL & BRAKE, ADJUSTABLE PEDAL-ACCEL & BRAKE(I.M.S), CONVENTIONAL - PROJECTION, TYPE - SEPARATED TYPE, FR COOLER - DUAL FULL AUTO A/CON
- Production Date: 06/2008
$2154.19 $1542.621
