Diagram (1 of 1): CONTROL WIRING

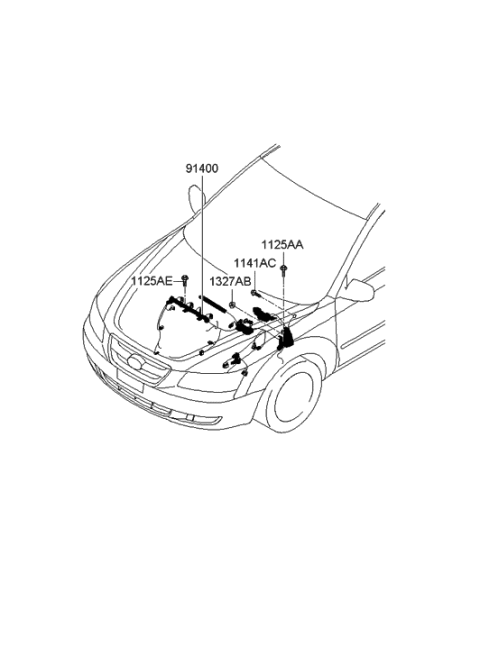

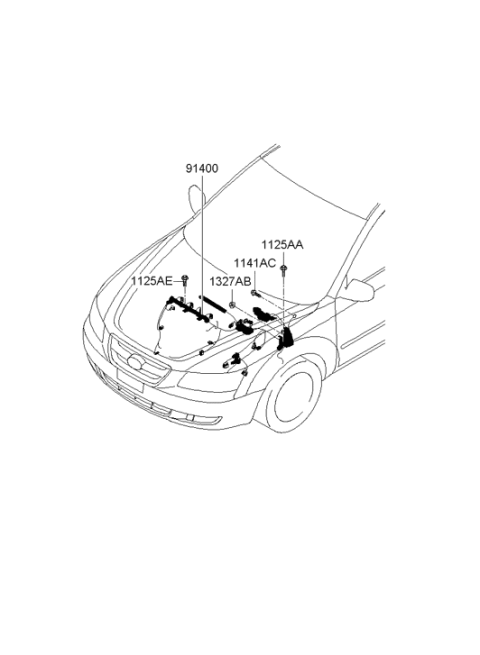

2005 Hyundai Sonata Control Wiring Diagram

Enlarge Diagram

Sort by:

Part Description

Part Code

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1125AA
11254-06256-B
Bolt
- Fit Note: EVAP. GAS CONTROL
- Replaced By: 11254-06256-K
$0.68 $0.52
10
Add To Cart

1125AE
11254-06166-B
Bolt
- Fit Note: EVAP. GAS CONTROL
- Require Quantity: 005
- Package Quantity: 1
$1.08 $0.82
1
Add To Cart

1141AC
11415-06167-B
Bolt
- Fit Note: EVAP. GAS CONTROL
$1.06 $0.80
1
Add To Cart

1327AB
13271-06007-K
Nut(W/Washer)
- Fit Note: EVAP. GAS CONTROL
$1.08 $0.82
10
Add To Cart

Wiring Assy-ECM
91400
91400-3K091
Wiring Assy-ECM
Fit Note: EVAP. GAS CONTROL
Production Date: 03/2005-05/2005
Fitting Vehicle Options: Middle Grade.. 5MT 2WD
$1921.23 $1375.79
1
Add To Cart
91400
91400-3K092
Wiring Assy-ECM
- Fit Note: EVAP. GAS CONTROL
- Production Date: 05/2005-12/2005
- Fitting Vehicle Options: Middle Grade.. 5MT 2WD
$1921.23 $1375.79
1
Add To Cart
91400
91400-3K101
Wiring Assy-ECM
- Fit Note: EVAP. GAS CONTROL
- Fitting Vehicle Options: High Grade, Middle Grade.. 4AT 2WD
$2924.74 $2094.41
1
Add To Cart
