3 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

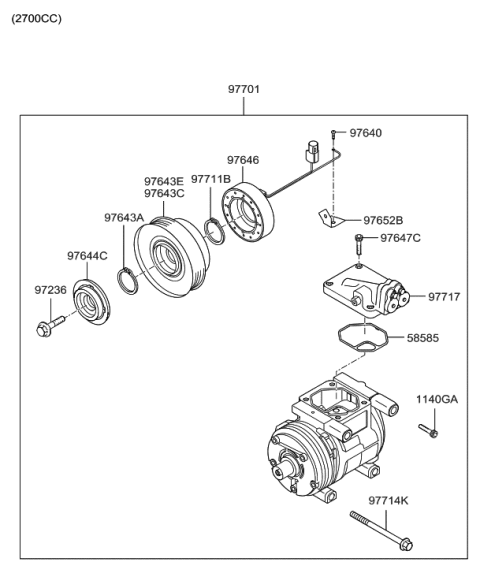

- 1.A/C SYSTEM-COMPRESSOR (01/03)

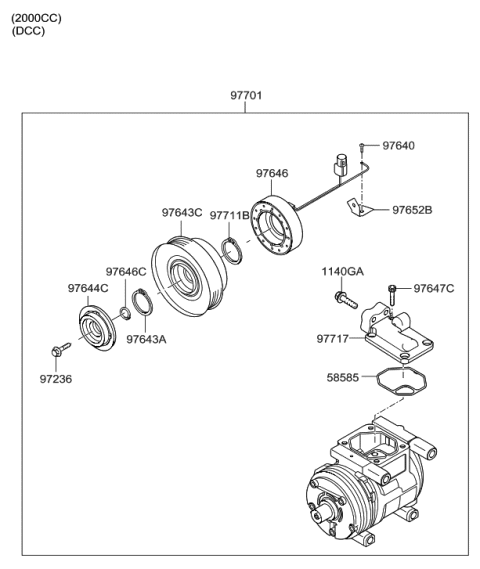

- 2.A/C SYSTEM-COMPRESSOR (02/03)

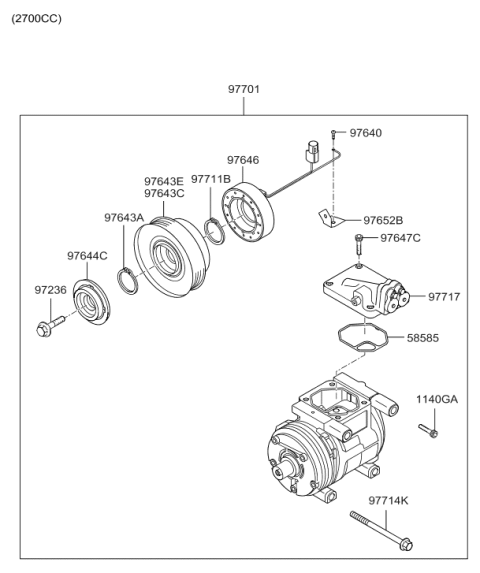

- 3.A/C SYSTEM-COMPRESSOR (03/03)
Sort by:
Part Description
Part Code
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 97236
$6.87 $5.241
- 97640
$0.87 $0.661
- Bolt97743A
$3.73 $2.811 - 97743A$6.87 $5.241
- 97714K
$15.44 $11.771
- Bolt-Flnage1140GA
11403-08323
Bolt-Flnage- Fit Note: AIR CON
AIR CON, AIR CON-MANUAL (DCC) - Production Date: 08/2004-12/2006
- Require Quantity: 002
- Package Quantity: 1
$0.85 $0.651 - Fit Note: AIR CON
- 1140GA11403-08327-K
Bolt-Flnage- Fit Note: AIR CON, AIR CON-MANUAL (HCC)
- Production Date: 04/2005-07/2005
- Require Quantity: 002
- Package Quantity: 1
$1.19 $0.911
- 97647C
$0.74 $0.571
- 97714
97714-22200
Bolt-Manifold MTG- Fit Note: AIR CON, AIR CON-MANUAL (HCC)
- Require Quantity: 004
- Package Quantity: 1
$15.44 $11.661
- Bracket-Connector97652B
97652-2D100
Bracket-Connector- Fit Note: AIR CON, AIR CON-MANUAL (HCC)
- Production Date: 04/2005-07/2005
- Fitting Vehicle Options: High Grade.. 2.0L, Middle Grade
$1.10 $0.831 - 97652B97652-2D500
Bracket-Connector- Fit Note: AIR CON
AIR CON, AIR CON-MANUAL (DCC) - Production Date: 08/2004-12/2006
- Fitting Vehicle Options: High Grade.. 2.0L, Middle Grade
$3.31 $2.521 - Fit Note: AIR CON
- 97652B97652-2E000
Bracket-Connector- Fit Note: AIR CON, AIR CON-MANUAL (HCC)
AIR CON-MANUAL (HCC), AIR CON-FULL AUTO - Fitting Vehicle Options: High Grade.. 2.7L
$3.31 $2.521
- Coil-Field97646
97641-17000
Coil-Field- Fit Note: AIR CON, AIR CON-MANUAL (HCC)
AIR CON-MANUAL (HCC), AIR CON-FULL AUTO - Production Date: 04/2005-12/2006
- Fitting Vehicle Options: High Grade.. 2.7L
$132.77 $94.501 - 97646
97641-1A000
Coil-Field- Fit Note: AIR CON, AIR CON-MANUAL (HCC)
- Production Date: 04/2005-07/2005
- Fitting Vehicle Options: High Grade.. 2.0L, Middle Grade
$149.24 $106.221 - 9764697641-2D500
Coil-Field- Fit Note: AIR CON
AIR CON, AIR CON-MANUAL (DCC) - Production Date: 08/2004-12/2006
- Fitting Vehicle Options: High Grade.. 2.0L, Middle Grade
$188.98 $134.511 - Fit Note: AIR CON
- 9764697641-2E300
Coil-Field- Fit Note: AIR CON
AIR CON-MANUAL (DCC), AIR CON-FULL AUTO - Production Date: 08/2004-12/2006
- Fitting Vehicle Options: High Grade.. 2.7L
$168.08 $119.631
- Compressor Assy97701

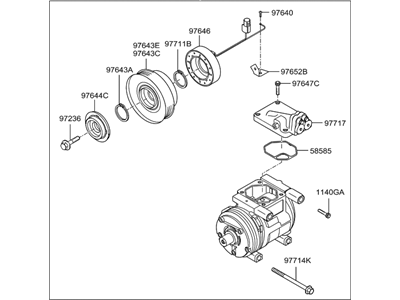

97701-2E300
Compressor Assy- Fit Note: AIR CON
AIR CON, AIR CON-MANUAL (DCC)
AIR CON-FULL AUTO
AIR CON-MANUAL (DCC), AIR CON-FULL AUTO - Production Date: 04/2005-12/2006,08/2004-01/2005
- Fitting Vehicle Options: High Grade.. 2.7L
$995.08 $695.921 - 9770197701-2C100
Compressor Assy- Fit Note: AIR CON
AIR CON, AIR CON-MANUAL (HCC) - Production Date: 04/2005-07/2005
- Fitting Vehicle Options: High Grade.. 2.0L, Middle Grade
- Replaced By: 97701-2E000
$995.08 $712.581 - Fit Note: AIR CON
- 97701
97701-2C100-RM
Compressor Assy- Fit Note: AIR CON
AIR CON, AIR CON-MANUAL (HCC) - Production Date: 04/2005-07/2005
- Fitting Vehicle Options: High Grade.. 2.0L, Middle Grade
$345.72 $229.221 - Fit Note: AIR CON
- 97701
97701-2D700
Compressor Assy- Fit Note: AIR CON
AIR CON, AIR CON-MANUAL (DCC) - Production Date: 08/2004-12/2006
- Fitting Vehicle Options: High Grade.. 2.0L, Middle Grade
$288.56 $205.391 - Fit Note: AIR CON
- 9770197701-2E000
Compressor Assy- Fit Note: AIR CON, AIR CON-MANUAL (HCC)
- Production Date: 07/2005-12/2006
- Fitting Vehicle Options: High Grade.. 2.0L, Middle Grade
$995.08 $695.921 - 97701
97701-2E000-RM
Compressor Assy- Fit Note: AIR CON, AIR CON-MANUAL (HCC)
- Production Date: 07/2005-12/2006
- Fitting Vehicle Options: High Grade.. 2.0L, Middle Grade
$345.72 $229.221 - 9770197701-2E100
Compressor Assy- Fit Note: AIR CON, AIR CON-MANUAL (HCC)
AIR CON-MANUAL (HCC), AIR CON-FULL AUTO - Production Date: 04/2005-12/2006
- Fitting Vehicle Options: High Grade.. 2.7L
$892.05 $629.391 - 9770197701-2E100-RM
Compressor Assy- Fit Note: AIR CON, AIR CON-MANUAL (HCC)
AIR CON-MANUAL (HCC), AIR CON-FULL AUTO - Production Date: 04/2005-12/2006
- Fitting Vehicle Options: High Grade.. 2.7L
$345.72 $229.221 - 9770197701-2E300-RM
Compressor Assy- Fit Note: AIR CON
AIR CON, AIR CON-MANUAL (DCC)
AIR CON-FULL AUTO
AIR CON-MANUAL (DCC), AIR CON-FULL AUTO - Production Date: 08/2004-01/2005
- Fitting Vehicle Options: High Grade.. 2.7L
$327.95 $238.541 - 9770197701-2E301
Compressor Assy- Fit Note: AIR CON
AIR CON-FULL AUTO - Production Date: 01/2005-04/2005
- Fitting Vehicle Options: High Grade.. 2.7L
$967.98 $693.171 - Fit Note: AIR CON
- Disc & Hub Assy-A/C Compressor97644C
97644-39000
Disc & Hub Assy-A/C Compressor- Fit Note: AIR CON, AIR CON-MANUAL (HCC)
- Fitting Vehicle Options: High Grade.. 2.0L, Middle Grade
$84.85 $61.821 - 97644C97644-2E000
Disc & Hub Assy-A/C Compressor- Fit Note: AIR CON, AIR CON-MANUAL (HCC)
AIR CON-MANUAL (HCC), AIR CON-FULL AUTO - Fitting Vehicle Options: High Grade.. 2.7L, Middle Grade
$84.85 $61.821 - 97644C$178.89 $127.321
- 97710C
$2.69 $2.031
- Manifold-Compressor97717
97717-25000
Manifold-Compressor- Fit Note: AIR CON, AIR CON-MANUAL (HCC)
- Production Date: 04/2005-07/2005
- Fitting Vehicle Options: High Grade.. 2.0L, Middle Grade
$126.42 $89.981 - 97717
97717-29700
Manifold-Compressor- Fit Note: AIR CON
AIR CON, AIR CON-MANUAL (DCC) - Production Date: 08/2004-12/2006
- Fitting Vehicle Options: High Grade.. 2.0L, Middle Grade
$203.90 $145.131 - Fit Note: AIR CON
- 9771797717-2E000
Manifold-Compressor- Fit Note: AIR CON, AIR CON-MANUAL (HCC)
AIR CON-MANUAL (HCC), AIR CON-FULL AUTO - Production Date: 04/2005-12/2006
- Fitting Vehicle Options: High Grade.. 2.7L
$200.55 $146.101 - 9771797717-2E100
Manifold-Compressor- Fit Note: AIR CON, AIR CON-MANUAL (HCC)
AIR CON-MANUAL (HCC), AIR CON-FULL AUTO - Production Date: 04/2005-12/2006
- Fitting Vehicle Options: High Grade.. 2.7L
$200.55 $146.101
- 97690A
97690-34310
O-Ring- 5/16 INCH
- Fit Note: AIR CON, AIR CON-MANUAL (HCC)
- Require Quantity: 002
- Package Quantity: 5
$1.79 $1.355
- Pulley Assy-A/Con Compressor97643E
97643-2D000
Pulley Assy-A/Con Compressor- Fit Note: AIR CON, AIR CON-MANUAL (HCC)
- Fitting Vehicle Options: High Grade.. 2.0L, Middle Grade
$232.19 $165.271 - 97643E
97643-38020
Pulley Assy-A/Con Compressor- Fit Note: AIR CON, AIR CON-MANUAL (HCC)
AIR CON-MANUAL (HCC), AIR CON-FULL AUTO - Fitting Vehicle Options: High Grade.. 2.7L
$232.19 $165.271
- 97643A
$4.68 $3.531
- Ring-Snap97711B
97645-33300
Ring-Snap- Fit Note: AIR CON, AIR CON-MANUAL (HCC)
- Fitting Vehicle Options: High Grade.. 2.0L, Middle Grade
$9.50 $7.171 - 97711B
97749-29700
Ring-Snap- Fit Note: AIR CON
AIR CON, AIR CON-MANUAL (DCC)
AIR CON-FULL AUTO
AIR CON-MANUAL (DCC), AIR CON-FULL AUTO - Fitting Vehicle Options: High Grade.. 2.0L, High Grade.. 2.7L, Middle Grade
$13.81 $10.431
- 97716B
$6.29 $4.751
- Rotor97643C
$234.52 $166.921 - 97643C

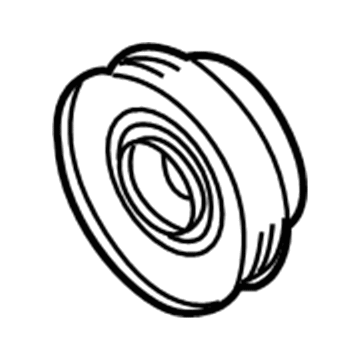

97643-2E300
Rotor- Fit Note: AIR CON, AIR CON-FULL AUTO
AIR CON, AIR CON-MANUAL (DCC)
AIR CON-MANUAL (DCC), AIR CON-FULL AUTO - Fitting Vehicle Options: High Grade.. 2.7L
$232.19 $165.271
- 97680C
$0.85 $0.651
- 58585$3.81 $2.901
- 97709C
$10.90 $8.231
- 97707C
$26.65 $20.121
- 97646C
$3.73 $2.811
