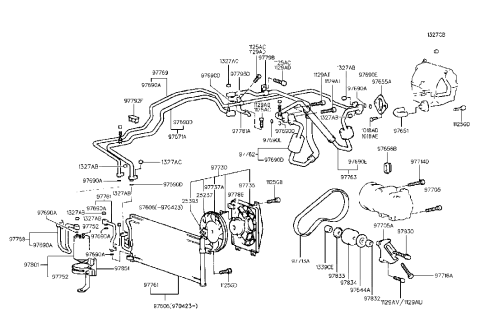

Diagram (1 of 1): A/C SYSTEM-COOLER LINE(HCC)
Enlarge Diagram
Sort by:
Part Description
Part Code
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 97713A
$37.27 $26.761
- Blower Assy-Conderser97730
97730-29000
Blower Assy-Conderser- Fit Note: AIR CONDITIONER
- Production Date: 11/1995-07/1997
- Replaced By: 97730-29060
$486.81 $351.621 - 9773097730-29050
Blower Assy-Conderser- Fit Note: AIR CONDITIONER
- Production Date: 07/1997-04/1998
- Replaced By: 97730-29060
$486.81 $351.621 - 97730$486.81 $343.471
- Bolt1125AC
11250-06161
Bolt- Fit Note: AIR CONDITIONER
- Production Date: 09/1996-06/1999
- Require Quantity: 004
- Package Quantity: 1
$0.68 $0.511 - 1125AC
11250-06163
Bolt- Fit Note: AIR CONDITIONER
- Production Date: 06/1999-08/2000
- Require Quantity: 004
- Package Quantity: 1
$0.68 $0.511
- Bolt1125GD
11253-06253
Bolt- Fit Note: AIR CONDITIONER
- Production Date: 11/1995-08/2000
- Require Quantity: 002
- Package Quantity: 1
- Replaced By: 86593-38000
$1.11 $0.851 - 1125GD
$1.11 $0.851 - 1125GD11253-06251
Bolt- Fit Note: AIR CONDITIONER
- Production Date: 08/1997-08/2000
- Require Quantity: 002
- Package Quantity: 1
- Replaced By: 86593-38000
$1.11 $0.851
- 1129AT
$1.19 $0.911
- 1129AU
- 1129AV$1.16 $0.891
- 1125GB
11253-06203
Bolt(W/Washer)- Fit Note: AIR CONDITIONER
- Require Quantity: 005
- Package Quantity: 1
- Replaced By: 88010-36000
$0.76 $0.581
- 1129AD
$0.58 $0.441
- 97716A
$12.23 $9.231
- 97705
$15.44 $11.661
- 97714D
$15.44 $11.661
- 97781A$6.39 $4.821
- 97851$25.73 $19.431
- 97705A
$111.73 $79.521
- 97798$6.76 $5.151
- 97792F
$3.39 $2.581
- 97793D$3.39 $2.581
- Condenser Assy-Cooler9760697606-29000
Condenser Assy-Cooler- Fit Note: AIR CONDITIONER
- Production Date: 11/1995-04/1997
- Replaced By: 97606-29100
$705.28 $465.531 - 97606$705.28 $457.491
- 97644A
$11.10 $8.381
- 97833
$11.10 $8.381
- 97801$235.50 $167.621
- 97737A
$48.45 $34.791
- 97656B
$1.18 $0.901
- Hose-Discharge97762
$205.08 $145.971 - 97762$205.08 $145.971
- Hose-Drain97651
97651-22001
Hose-Drain- Fit Note: AIR CONDITIONER
- Production Date: 11/1995-04/1996
- Replaced By: 97651-29000
$15.37 $11.721 - 97651$15.37 $11.721
- 97651$15.37 $11.721
- Hose-Suction97763$276.89 $197.081
- 9776397763-29101
Hose-Suction- Fit Note: AIR CONDITIONER
- Production Date: till 10/1995
- 97763$267.53 $190.421
- 97786
$362.74 $258.191
- 1327AB
$1.11 $0.841
- Nut(W/Washer)1327CB
$0.92 $0.691 - 1327CB$0.92 $0.691
- 1339CE
$0.76 $0.571
- 1327AC
$2.60 $1.961
- O-Ring97690A
97690-34310
O-Ring- 5/16 INCH
- Fit Note: AIR CONDITIONER
- Production Date: 03/1996-08/2000
- Require Quantity: 003
- Package Quantity: 5
$1.79 $1.355 - 97690A
97690-37010
O-Ring- 5/16 INCH
- Fit Note: AIR CONDITIONER
- Production Date: 11/1995-03/1996
- Require Quantity: 003
- Package Quantity: 1
$1.68 $1.281
- O-Ring97690D
97690-34350
O-Ring- 1/2 INCH
- Fit Note: AIR CONDITIONER
- Production Date: 03/1996-08/2000
- Require Quantity: 002
- Package Quantity: 1
$1.79 $1.351 - 97690D97690-22100
O-Ring- 1/2 INCH
- Fit Note: AIR CONDITIONER
- Production Date: 11/1995-03/1996
- Require Quantity: 002
- Package Quantity: 1
$1.68 $1.281
- O-Ring97690E
97690-34340
O-Ring- 5/8 INCH
- Fit Note: AIR CONDITIONER
- Production Date: 03/1996-08/2000
- Require Quantity: 002
- Package Quantity: 1
$1.90 $1.441 - 97690E
97690-22000
O-Ring- 5/8 INCH
- Fit Note: AIR CONDITIONER
- Production Date: 11/1995-03/1996
- Require Quantity: 002
- Package Quantity: 1
$1.61 $1.231
- Pipe-Discharge97671A$153.66 $109.371
- 97671A$159.05 $113.201
- Plate & Grommet-A/C Cooler Lin97655A97650-22000
Plate & Grommet-A/C Cooler Lin- Fit Note: AIR CONDITIONER
- Production Date: till 05/1995
- Replaced By: 97650-29000
$14.08 $10.741 - 97655A97650-22001
Plate & Grommet-A/C Cooler Lin- Fit Note: AIR CONDITIONER
- Production Date: 05/1995-09/1996
- Replaced By: 97650-29000
$14.08 $10.741 - 97655A97650-22002
Plate & Grommet-A/C Cooler Lin- Fit Note: AIR CONDITIONER
- Production Date: 09/1996-12/1997
- Replaced By: 97650-29000
$14.08 $10.741 - 97655A$15.13 $11.541
- 97655A$14.08 $10.741
- 97834
$54.77 $40.681
- 25393
$1.00 $0.761
- 1018AD
$0.50 $0.381
- 1018AE
$0.73 $0.551
- 97830
$16.10 $12.161
- Shroud97735
$105.58 $76.921 - 97735$105.58 $75.151
- 97832
$3.92 $2.961
- Switch Assy-Dual97752
$149.23 $106.211 - 9775297752-29000
Switch Assy-Dual- Fit Note: AIR CONDITIONER
- Production Date: 11/1995-08/1996
- Replaced By: 97752-29001
$149.23 $108.711
- 97761$90.60 $64.481
- 97768
$81.73 $58.171
- Tube-Liquid97769$84.58 $60.201
- 9776997769-29000
Tube-Liquid- Fit Note: AIR CONDITIONER
- Production Date: till 10/1995
- 97769$83.19 $59.211
- 25237
$5.31 $4.051
