How to remove and install the master cylinder and release cylinder on Hyundai Sonata?

To service the master cylinder you must remove the clutch fluid through the bleeder screw and make sure it is caught on a container or a rag to prevent any spilling on painted parts. Under the instrument panel, unscrew the cotter pin, washer and clutch clevis pin to release the clutch pushrod from the pedal also remove the clutch tubing from the master cylinder. Loosen and take out the bolts that are fixed on the master cylinder and then detach the master cylinder, while retventing with the wrench the hose nut in case you will be unplugging the flare nut on the tube using the flare nut wrench if need be. For removal just turn everything in oppose direction, open the brake and bleed the system. For cars of a earlier 2005 model, support the vehicle on jackstands, connect the clutch fluid hose to the release cylinder and empty the apparatus into a container. Take out the cotter pin at the end of the shaft on the clevis and slide off the clevis pin, then take off all four mounting bolts and the release cylinder. For removal, reverse it by removing the copper washers from the hose banjo fitting and installing new ones and finally, the process of bleeding system. It should be noted that for the 2006 and later models of the automobiles, the release bearing assembly features a concentric slave cylinder, which means that motorists are likely to have to remove the transaxle to gain access to and tend to the cylinder.

Genuine Hyundai Sonata Clutch Slave Cylinder

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

11 Clutch Slave Cylinders found

View related parts

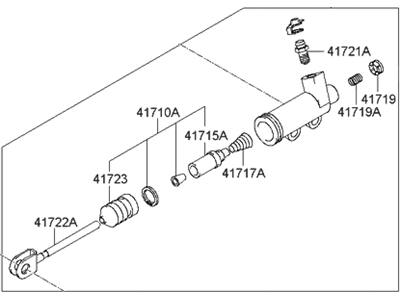

Hyundai Sonata Cylinder Assembly-Clutch Release
Part Number: 41710-39001
$97.24 MSRP: $133.48
You Save: $36.24 (28%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 41710-39100
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1998-2005 Hyundai Sonata | High Grade, Middle Grade | 4 Door, 4 Door Sedan
View related parts
Hyundai Sonata Cylinder Kit-Clutch Release
Part Number: 41710-33A20
$3.59 MSRP: $4.76
You Save: $1.17 (25%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Slave Cylinder Repair Kit
- Manufacturer Note: DAECHUL
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1988-1998 Hyundai Sonata | High Grade, Middle Grade | 4 Door
View related parts
Hyundai Sonata Cylinder Assembly-Concentric Slave
Part Number: 41421-24300
$241.46 MSRP: $339.24
You Save: $97.78 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 41421-24360
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2005-2014 Hyundai Sonata | High Grade, Middle Grade | DOHC - GDI, DOHC - MPI | 4 Door Sedan, Sedan - 4Door 5P
View related parts
Hyundai Sonata Cylinder Kit-Clutch Release
Part Number: 41710-38A00
$31.67 MSRP: $44.11
You Save: $12.44 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Slave Cylinder, Slave Cylinder Repair Kit
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1998-2005 Hyundai Sonata | High Grade, Middle Grade | 4 Door, 4 Door Sedan
View related parts
Hyundai Sonata Cylinder Assembly-Clutch Release
Part Number: 41710-39020
$79.82 MSRP: $109.56
You Save: $29.74 (28%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2001-2005 Hyundai Sonata | High Grade, Middle Grade | 4 Door Sedan
View related parts
Hyundai Sonata Cylinder Assembly-Clutch Release
Part Number: 41710-33040
$88.27 MSRP: $124.02
You Save: $35.75 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Slave Cylinder
- Manufacturer Note: DAECHUL
- Replaces: 41710-33070, 41710-33050
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1988-1998 Hyundai Sonata | High Grade, Middle Grade | 4 Door
View related parts
Hyundai Sonata Cylinder Assembly-Clutch Release
Part Number: 41710-33050
$90.35 MSRP: $124.02
You Save: $33.67 (28%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Manufacturer Note: PYEONGWHA
- Replaced by: 41710-33040
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1988-1993 Hyundai Sonata | High Grade, Middle Grade | 4 Door
View related parts
Hyundai Sonata Cylinder Kit-Clutch Release
Part Number: 41710-33A00
$36.08 MSRP: $48.58
You Save: $12.50 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Manufacturer Note: PYEONGWHA
- Replaced by: 41710-33A10
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1988-1993 Hyundai Sonata | High Grade, Middle Grade | 4 Door
View related parts
Hyundai Sonata Cylinder Assembly-Clutch Release
Part Number: 41710-33070
$90.35 MSRP: $124.02
You Save: $33.67 (28%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Manufacturer Note: PYEONGWHA
- Replaced by: 41710-33040
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1988-1993 Hyundai Sonata | High Grade, Middle Grade | 4 Door
View related parts
Hyundai Sonata Cylinder Kit-Clutch Release
Part Number: 41710-39A00
$29.70 MSRP: $39.98
You Save: $10.28 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2001-2005 Hyundai Sonata | High Grade, Middle Grade | 4 Door Sedan
View related parts
Hyundai Sonata Cylinder Kit-Clutch Release
Part Number: 41710-33A10
$34.88 MSRP: $48.58
You Save: $13.70 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Slave Cylinder Repair Kit
- Manufacturer Note: PYEONGWHA
- Replaces: 41710-33A00
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1988-1993 Hyundai Sonata | High Grade, Middle Grade | 4 Door

Hyundai Sonata Clutch Slave Cylinder

If you are looking for affordable high-quality OEM Hyundai Sonata Clutch Slave Cylinder, then you have come to the prime place. Our website provides a large amount of genuine Hyundai Sonata Clutch Slave Cylinder at unbeatable prices. All our parts come backed with the manufacturer's warranty.

Hyundai Sonata Clutch Slave Cylinder Parts Questions & Experts Answers

Cylinder Assembly-Clutch Release
41710-39001
Q: How to remove and install the master cylinder and release cylinder on Hyundai Sonata?
A: To service the master cylinder you must remove the clutch fluid through the bleeder screw and make sure it is caught on a container or a rag to prevent any spilling on painted parts. Under the instrument panel, unscrew the cotter pin, washer and clutch clevis pin to release the clutch pushrod from the pedal also remove the clutch tubing from the master cylinder. Loosen and take out the bolts that are fixed on the master cylinder and then detach the master cylinder, while retventing with the wrench the hose nut in case you will be unplugging the flare nut on the tube using the flare nut wrench if need be. For removal just turn everything in oppose direction, open the brake and bleed the system. For cars of a earlier 2005 model, support the vehicle on jackstands, connect the clutch fluid hose to the release cylinder and empty the apparatus into a container. Take out the cotter pin at the end of the shaft on the clevis and slide off the clevis pin, then take off all four mounting bolts and the release cylinder. For removal, reverse it by removing the copper washers from the hose banjo fitting and installing new ones and finally, the process of bleeding system. It should be noted that for the 2006 and later models of the automobiles, the Release Bearing assembly features a concentric slave cylinder, which means that motorists are likely to have to remove the transaxle to gain access to and tend to the cylinder.
