How to remove and install the steering gear on Hyundai Elantra?

For 2006 and earlier models, begin by removing the air intake hose from the throttle body and air filter housing in the engine compartment. Place a drain pan under the rack and pinion, disconnect the fluid pressure and return fittings, and cap the ends to prevent fluid loss and contamination. Inside the vehicle, mark the position of the lower universal joint relative to the rack and pinion input shaft and remove the lower shaft pinch bolt. With the wheels straight, loosen the front wheel lug nuts, raise the vehicle securely on jack stands, apply the parking brake, and remove the wheels along with the engine splash shields. Disconnect the tie-rod ends from the steering knuckles, remove the right side stabilizer bar bracket, and take out the rack and pinion clamp mounting bolts and hydraulic line clamp. Separate the intermediate shaft from the rack and pinion input shaft and remove the rack and pinion assembly through the right side fenderwell. Ensure the rack and pinion is centered before installation, guide it into position, connect the U-joint aligning the marks, install and tighten the mounting brackets and bolts, connect the stabilizer bar, and tie-rod ends to the steering knuckle arms. Install the U-joint pinch bolt, connect the power steering pressure and return lines, and fill the power steering pump reservoir with the recommended fluid. The remainder of the installation follows the reverse order of removal, ensuring all suspension and steering fasteners are tightened. Finally, install the wheels and lug nuts, lower the vehicle, tighten the lug nuts, and bleed the steering system. For 2007 and later models, start by loosening the front wheel lug nuts, raising the vehicle securely on jack stands, and removing the front wheels. Inside the vehicle, remove the pinch bolt from the steering shaft and separate it from the rack and pinion input shaft. Detach the stabilizer bar links from the front struts, disconnect the ball joints from the lower control arms, and remove the rubber exhaust hanger to allow the exhaust system to hang. Detach the wiring harness from the subframe, remove the through-bolts from the front and rear engine mount roll-stoppers, and mark the subframe's position with paint before removing the mounting bolts and taking it out with the rack and pinion still attached. Remove the rear roll-stopper from above the rack and pinion and then take the rack and pinion from the subframe. Ensure the rack and pinion input shaft is centered before installation, which follows the reverse order of removal, with all fasteners tightened.

Genuine Hyundai Elantra Rack And Pinion

Steering Rack And Pinion

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

52 Rack And Pinions found

View related parts

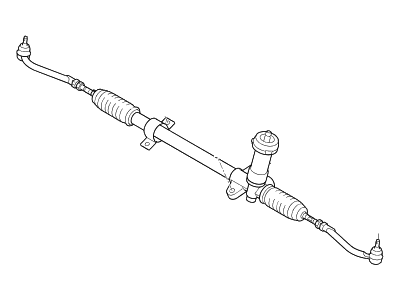

Hyundai Elantra Gear Assembly-Steering
Part Number: 56500-3X200
$852.46 MSRP: $1218.92
You Save: $366.46 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gear Assembly, Steering Gear
- Replaces: 56500-A5000
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2014-2015 Hyundai Elantra | DOHC - GDI, DOHC - MPI | Sedan - 4Door 5P
View related parts

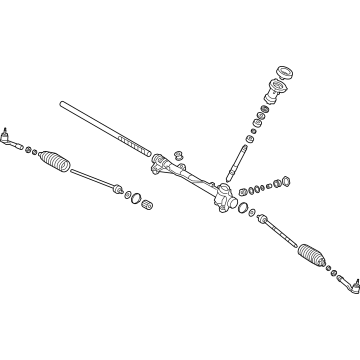

Hyundai Elantra Gear Assembly-Steering
Part Number: 56500-3X003
$508.49 MSRP: $708.24
You Save: $199.75 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2011-2013 Hyundai Elantra | DOHC - GDI, DOHC - MPI | Sedan - 4Door 5P
View related parts

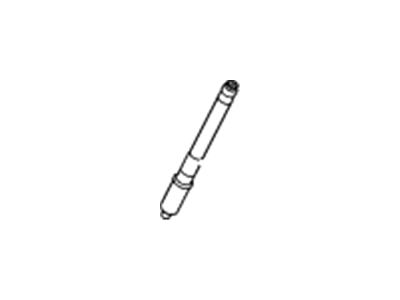

Hyundai Elantra Rack-Steering Gear Box
Part Number: 56531-3X000
$136.12 MSRP: $191.24
You Save: $55.12 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rack, Rack Bushing
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2011-2013 Hyundai Elantra | DOHC - GDI, DOHC - MPI | Sedan - 4Door 5P
View related parts
Hyundai Elantra Gear & Linkage Assembly-Power Steering
Part Number: 57700-2D000
$1028.28 MSRP: $1470.32
You Save: $442.04 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gear Assembly, Steering Gear Assembly
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2000-2006 Hyundai Elantra | High Grade, Middle Grade | 4 Door Sedan, 5 Door Sedan
View related parts
Hyundai Elantra Gear Assembly-Steering
Part Number: 56500-F2000
$965.31 MSRP: $1348.02
You Save: $382.71 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gear Assembly, Steering Gear
- Replaced by: 56500-F2100
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2016-2020 Hyundai Elantra | DOHC - MPI, DOHC - TCI/GDI | Sedan - 4Door 5P
View related parts
Hyundai Elantra Gear Assembly-Steering
Part Number: 56500-F2500
$1054.12 MSRP: $1472.03
You Save: $417.91 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gear Assembly, Steering Gear
- Replaced by: 56500-G3000
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2016-2018 Hyundai Elantra | DOHC - MPI, DOHC - TCI/GDI | Sedan - 4Door 5P
View related parts
Hyundai Elantra Gear Assembly-Steering
Part Number: 56500-3X001
$872.87 MSRP: $1218.92
You Save: $346.05 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 56500-3X002
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2011-2013 Hyundai Elantra | DOHC - GDI, DOHC - MPI | Coupe - 2Door 5P, Sedan - 4Door 5P
View related parts
Hyundai Elantra Gear Assembly-Steering
Part Number: 56500-3X100
$852.46 MSRP: $1218.92
You Save: $366.46 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 56500-A5500
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2011-2015 Hyundai Elantra | DOHC - GDI, DOHC - MPI | Coupe - 2Door 5P
View related parts
Hyundai Elantra Pinion Assembly-Steering Gear Box
Part Number: 56512-G3000
$127.84 MSRP: $179.61
You Save: $51.77 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pinion, Pinion Assembly, Pinion Valve
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2016-2018 Hyundai Elantra | DOHC - MPI, DOHC - TCI/GDI | Sedan - 4Door 5P
View related parts
Hyundai Elantra Gear Assembly-Steering
Part Number: 56500-F2300
$950.83 MSRP: $1327.79
You Save: $376.96 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 56500-J7000
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2019-2020 Hyundai Elantra | DOHC - MPI, DOHC - TCI/GDI | Sedan - 4Door 5P
View related parts
Hyundai Elantra Gear Assembly-Steering
Part Number: 56500-3X002
$872.87 MSRP: $1218.92
You Save: $346.05 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaces: 56500-3X001
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2011-2013 Hyundai Elantra | DOHC - GDI, DOHC - MPI | Coupe - 2Door 5P, Sedan - 4Door 5P
View related parts
Hyundai Elantra Gear & Linkage Assembly-Power Steering
Part Number: 57700-2D100
$843.83 MSRP: $1206.58
You Save: $362.75 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gear Assembly
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2000-2006 Hyundai Elantra | High Grade, Middle Grade | 4 Door Sedan, 5 Door Sedan
View related parts
Hyundai Elantra Gear Assembly-Steering
Part Number: 56500-AA000
$942.75 MSRP: $1348.02
You Save: $405.27 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gear Assembly, Steering Gear
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2021-2023 Hyundai Elantra | DOHC - GDI, DOHC - MPI | Sedan - 4Door 5P
View related parts
Hyundai Elantra Gear Assembly-Steering
Part Number: 56500-2H100
$458.67 MSRP: $638.86
You Save: $180.19 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2006-2010 Hyundai Elantra | DOHC - MPI | Sedan - 4Door 5P
View related parts
Hyundai Elantra Rack-Steering Gear Box
Part Number: 56531-G3000
$188.42 MSRP: $264.73
You Save: $76.31 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rack
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2016-2018 Hyundai Elantra | DOHC - MPI, DOHC - TCI/GDI | Sedan - 4Door 5P
View related parts
Hyundai Elantra Gear Assembly-Steering
Part Number: 56500-2H200
$484.82 MSRP: $675.27
You Save: $190.45 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2006-2010 Hyundai Elantra | DOHC - MPI | Sedan - 4Door 5P
View related parts
Hyundai Elantra Gear Assembly-Steering
Part Number: 56500-2H000
$916.49 MSRP: $1279.84
You Save: $363.35 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 56500-2L300
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2006-2010 Hyundai Elantra | High Grade, Middle Grade | DOHC - MPI | 4 Door Sedan, Sedan - 4Door 5P
View related parts
Hyundai Elantra Pinion Assembly-Steering Gear Box
Part Number: 56512-3X100
$109.57 MSRP: $153.94
You Save: $44.37 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2011-2015 Hyundai Elantra | DOHC - GDI, DOHC - MPI | Coupe - 2Door 5P
View related parts
Hyundai Elantra Pinion Assembly-Steering Gear Box
Part Number: 56512-F2000
$127.84 MSRP: $179.61
You Save: $51.77 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pinion Assembly, Pinion Shaft, Pinion Valve
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2016-2018 Hyundai Elantra | DOHC - MPI, DOHC - TCI/GDI | Sedan - 4Door 5P
View related parts
Hyundai Elantra Pinion Assembly-Steering Gear Box
Part Number: 56512-3X001
$148.26 MSRP: $208.31
You Save: $60.05 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2011-2015 Hyundai Elantra | DOHC - GDI, DOHC - MPI | Sedan - 4Door 5P

| Page 1 of 3 |Next >

1-20 of 52 Results

Hyundai Elantra Rack And Pinion

If you are looking for affordable high-quality OEM Hyundai Elantra Rack And Pinion, then you have come to the prime place. Our website provides a large amount of genuine Hyundai Elantra Rack And Pinion at unbeatable prices. All our parts come backed with the manufacturer's warranty.

Hyundai Elantra Rack And Pinion Parts Questions & Experts Answers

Rack-Steering Gear Box
56531-3X000
Q: How to remove and install the steering gear on Hyundai Elantra?
A: For 2006 and earlier models, begin by removing the air intake hose from the throttle body and air filter housing in the engine compartment. Place a drain pan under the rack and pinion, disconnect the fluid pressure and return fittings, and cap the ends to prevent fluid loss and contamination. Inside the vehicle, mark the position of the lower universal joint relative to the rack and pinion input shaft and remove the lower shaft pinch bolt. With the wheels straight, loosen the front wheel lug nuts, raise the vehicle securely on jack stands, apply the parking brake, and remove the wheels along with the engine splash shields. Disconnect the tie-rod ends from the Steering Knuckles, remove the right side stabilizer bar bracket, and take out the rack and pinion clamp mounting bolts and hydraulic line clamp. Separate the intermediate shaft from the rack and pinion input shaft and remove the rack and pinion assembly through the right side fenderwell. Ensure the rack and pinion is centered before installation, guide it into position, connect the U-joint aligning the marks, install and tighten the mounting brackets and bolts, connect the stabilizer bar, and tie-rod ends to the steering knuckle arms. Install the U-joint pinch bolt, connect the power steering pressure and return lines, and fill the power steering pump reservoir with the recommended fluid. The remainder of the installation follows the reverse order of removal, ensuring all suspension and steering fasteners are tightened. Finally, install the wheels and lug nuts, lower the vehicle, tighten the lug nuts, and bleed the steering system. For 2007 and later models, start by loosening the front wheel lug nuts, raising the vehicle securely on jack stands, and removing the front wheels. Inside the vehicle, remove the pinch bolt from the steering shaft and separate it from the rack and pinion input shaft. Detach the stabilizer bar links from the front struts, disconnect the Ball Joints from the lower Control Arms, and remove the rubber exhaust hanger to allow the exhaust system to hang. Detach the wiring harness from the subframe, remove the through-bolts from the front and rear engine mount roll-stoppers, and mark the subframe's position with paint before removing the mounting bolts and taking it out with the rack and pinion still attached. Remove the rear roll-stopper from above the rack and pinion and then take the rack and pinion from the subframe. Ensure the rack and pinion input shaft is centered before installation, which follows the reverse order of removal, with all fasteners tightened.
