How Do You Remove and Install the Clutch Release Cylinder on Hyundai Elantra?

Some models are equipped with an anti-theft radio. Before performing a procedure that requires disconnecting the battery, ensure you have the activation code. Begin by disconnecting the negative cable from the battery. For 2000 and earlier models, open the hood, remove the clip and retaining pin, then detach the release cylinder push rod from the clutch release lever. Disconnect the hydraulic line at the release cylinder using a flare-nut wrench, having a small can and rags handy to catch any spilled fluid, and plug the line to prevent excessive fluid loss and contamination. Unscrew the bolts and remove the clutch release cylinder. For 2001 and later models, except 1.6L models, raise the vehicle and support it securely on jackstands, then disconnect the hydraulic line at the release cylinder, again using a flare-nut wrench and being prepared for fluid spillage. Remove the two release cylinder mounting bolts and the release cylinder. For 1.6L models, note that the release bearing is integral to the concentric release cylinder and cannot be replaced separately. Locate the fluid hose connection at the concentric release cylinder on the left side of the transaxle, disconnect it, remove the clevis pin, and separate the hose. Remove the transaxle, then the concentric release cylinder mounting bolts and the release cylinder assembly. For installation on all models except 1.6L, lubricate the pocket in the release fork with multi-purpose grease for 2001 and later models. Install the release cylinder on the clutch housing and install the bolts, leaving them a little loose until the hydraulic line filling threads have been started. For 2000 and earlier models, connect the pushrod to the release lever and install the retaining pin, washer, and clip. For 2001 and later models, ensure the pushrod is seated in the release fork pocket. Connect the hydraulic line fitting to the release cylinder using fingers only at this time, then tighten the mounting bolts to the specified torque and secure the hydraulic fitting with a flare-nut wrench. For 1.6L models, install the concentric release cylinder over the input shaft on the transaxle, then install the bolts hand tight, ensuring even pressure while tightening to the specified torque. Reinstall the transaxle, connect the fluid hose to the concentric release cylinder, and insert the clevis pin. The installation is the reverse of removal for all models. Check the fluid level in the brake fluid reservoir, adding brake fluid conforming to DOT 3 specifications until the level is correct, then bleed the system and recheck the brake fluid level before reconnecting the negative battery cable.

Genuine Hyundai Elantra Clutch Slave Cylinder

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

14 Clutch Slave Cylinders found

View related parts

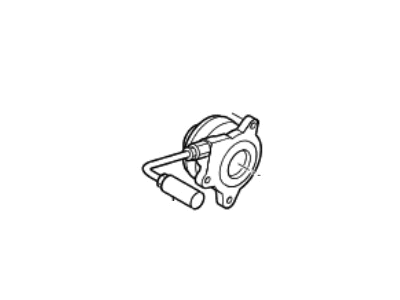

Hyundai Elantra Cylinder Assembly-Concentric Slave
Part Number: 41421-32300
$254.02 MSRP: $356.89
You Save: $102.87 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Slave Cylinder
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2016-2023 Hyundai Elantra | DOHC - TCI/GDI | Sedan - 4Door 5P
View related parts

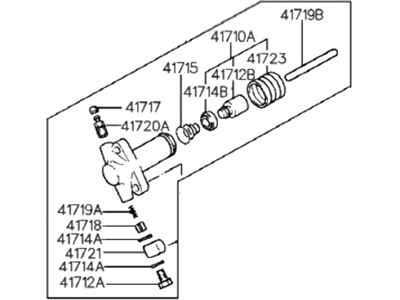

Hyundai Elantra Cylinder Assembly-Clutch Release
Part Number: 41710-39001
$97.24 MSRP: $133.48
You Save: $36.24 (28%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 41710-39100
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2000-2006 Hyundai Elantra | High Grade, Middle Grade | 4 Door Sedan, 5 Door Sedan
View related parts
Hyundai Elantra Cylinder Kit-Clutch Release
Part Number: 41710-24A10
$23.67 MSRP: $31.34
You Save: $7.67 (25%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Slave Cylinder Repair Kit
- Replaces: 41710-24A00
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1995-2000 Hyundai Elantra | High Grade, Middle Grade | 4 Door, 5 Door Wagon 5
View related parts
Hyundai Elantra Cylinder Assembly-Clutch Release
Part Number: 41710-28000
$118.06 MSRP: $165.87
You Save: $47.81 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Slave Cylinder
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1995-2000 Hyundai Elantra | High Grade, Middle Grade | 4 Door, 5 Door Wagon 5
View related parts
Hyundai Elantra Cylinder Assembly-Clutch Release
Part Number: 41710-23000
$102.84 MSRP: $141.16
You Save: $38.32 (28%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Slave Cylinder
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2006-2015 Hyundai Elantra | DOHC - GDI, DOHC - MPI | Coupe - 2Door 5P, Sedan - 4Door 5P
View related parts
Hyundai Elantra Cylinder Assembly-Clutch Release
Part Number: 41710-23020
$103.03 MSRP: $144.76
You Save: $41.73 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Slave Cylinder
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2016-2018 Hyundai Elantra | DOHC - MPI | Sedan - 4Door 5P
View related parts
Hyundai Elantra Cylinder Kit-Clutch Release
Part Number: 41710-38A00
$31.67 MSRP: $44.11
You Save: $12.44 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Slave Cylinder, Slave Cylinder Repair Kit
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2000-2006 Hyundai Elantra | High Grade, Middle Grade | 4 Door Sedan, 5 Door Sedan
View related parts

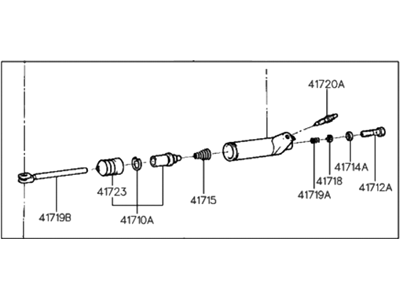

Hyundai Elantra Cylinder Assembly-Clutch Release
Part Number: 41710-33050
$90.35 MSRP: $124.02
You Save: $33.67 (28%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Manufacturer Note: PYEONGWHA
- Replaced by: 41710-33040
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1991-1995 Hyundai Elantra | High Grade, Middle Grade | 4 Door
View related parts
Hyundai Elantra Cylinder Kit-Clutch Release
Part Number: 41710-33A00
$36.08 MSRP: $48.58
You Save: $12.50 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Manufacturer Note: PYEONGWHA
- Replaced by: 41710-33A10
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1991-1995 Hyundai Elantra | High Grade, Middle Grade | 4 Door
View related parts
Hyundai Elantra Cylinder Assembly-Concentric Slave
Part Number: 41421-32AA1
$195.69 MSRP: $274.94
You Save: $79.25 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Slave Cylinder
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2019-2020 Hyundai Elantra | DOHC - MPI | Sedan - 4Door 5P
View related parts

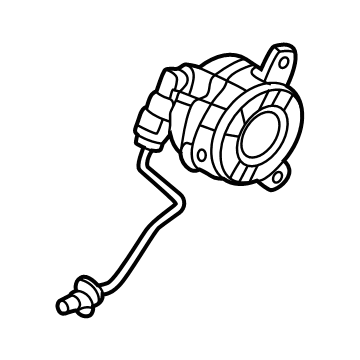

Hyundai Elantra CONCENTRIC Slave Cylinder-ENGI
Part Number: 41073-2B200
$187.26 MSRP: $263.10
You Save: $75.84 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Clutch
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2021-2023 Hyundai Elantra | DOHC - GDI | Sedan - 4Door 5P
View related parts
Hyundai Elantra Cylinder Assembly-Clutch Release
Part Number: 41710-33070
$90.35 MSRP: $124.02
You Save: $33.67 (28%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Manufacturer Note: PYEONGWHA
- Replaced by: 41710-33040
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1991-1995 Hyundai Elantra | High Grade, Middle Grade | 4 Door
View related parts
Hyundai Elantra Cylinder Assembly-Clutch Release
Part Number: 41710-23010
$106.17 MSRP: $149.16
You Save: $42.99 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Slave Cylinder
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2006-2010 Hyundai Elantra | High Grade, Middle Grade | DOHC - MPI | 4 Door Sedan, Sedan - 4Door 5P
View related parts
Hyundai Elantra Cylinder Kit-Clutch Release
Part Number: 41710-33A10
$34.88 MSRP: $48.58
You Save: $13.70 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Slave Cylinder Repair Kit
- Manufacturer Note: PYEONGWHA
- Replaces: 41710-33A00
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1991-1995 Hyundai Elantra | High Grade, Middle Grade | 4 Door

Hyundai Elantra Clutch Slave Cylinder

If you are looking for affordable high-quality OEM Hyundai Elantra Clutch Slave Cylinder, then you have come to the prime place. Our website provides a large amount of genuine Hyundai Elantra Clutch Slave Cylinder at unbeatable prices. All our parts come backed with the manufacturer's warranty.

Hyundai Elantra Clutch Slave Cylinder Parts Questions & Experts Answers

Cylinder Assembly-Clutch Release
41710-39001
Q: How Do You Remove and Install the Clutch Release Cylinder on Hyundai Elantra?
A: Some models are equipped with an anti-theft radio. Before performing a procedure that requires disconnecting the battery, ensure you have the activation code. Begin by disconnecting the negative cable from the battery. For 2000 and earlier models, open the hood, remove the clip and retaining pin, then detach the release cylinder push rod from the clutch release lever. Disconnect the hydraulic line at the release cylinder using a flare-nut wrench, having a small can and rags handy to catch any spilled fluid, and plug the line to prevent excessive fluid loss and contamination. Unscrew the bolts and remove the clutch release cylinder. For 2001 and later models, except 1.6L models, raise the vehicle and support it securely on jackstands, then disconnect the hydraulic line at the release cylinder, again using a flare-nut wrench and being prepared for fluid spillage. Remove the two release cylinder mounting bolts and the release cylinder. For 1.6L models, note that the Release Bearing is integral to the concentric release cylinder and cannot be replaced separately. Locate the fluid hose connection at the concentric release cylinder on the left side of the transaxle, disconnect it, remove the clevis pin, and separate the hose. Remove the transaxle, then the concentric release cylinder mounting bolts and the release cylinder assembly. For installation on all models except 1.6L, lubricate the pocket in the release fork with multi-purpose grease for 2001 and later models. Install the release cylinder on the clutch housing and install the bolts, leaving them a little loose until the hydraulic line filling threads have been started. For 2000 and earlier models, connect the pushrod to the release lever and install the retaining pin, washer, and clip. For 2001 and later models, ensure the pushrod is seated in the release fork pocket. Connect the hydraulic line fitting to the release cylinder using fingers only at this time, then tighten the mounting bolts to the specified torque and secure the hydraulic fitting with a flare-nut wrench. For 1.6L models, install the concentric release cylinder over the input shaft on the transaxle, then install the bolts hand tight, ensuring even pressure while tightening to the specified torque. Reinstall the transaxle, connect the fluid hose to the concentric release cylinder, and insert the clevis pin. The installation is the reverse of removal for all models. Check the fluid level in the brake fluid reservoir, adding brake fluid conforming to DOT 3 specifications until the level is correct, then bleed the system and recheck the brake fluid level before reconnecting the negative battery cable.
