How do you check the wiper motor circuit on Hyundai Sonata?

To check the wiper motor circuit, probe a grounded 12-volt test light to each terminal at a connector until it lights to verify voltage at the terminal. If the wipers operate slowly, ensure the battery is in good condition and has a strong charge; if so, remove the wiper motor and operate the wiper arms by hand, checking for binding linkage and pivots, lubricating or repairing as necessary before reinstalling the motor. If the wipers still operate slowly, inspect for loose or corroded connections, particularly the ground connection, and replace the motor if all connections appear fine. If the wipers do not operate when activated, check the fuse in the driver's side interior fuse panel; if the fuse is intact, connect a jumper wire between the wiper motor's ground terminal and ground, then retest. If the motor works, repair the ground connection; if not, check for voltage at the motor with the wiper switch in the HI position, noting that the cowl cover must be removed to access the wiper motor electrical connector. If voltage is present at the connector, remove the motor and test it off the vehicle with fused jumper wires from the battery; if it works, check for binding linkage, and if it doesn't, replace it. If there is no voltage to the motor, check for voltage at the wiper control relays, and if voltage is present at the relays but not at the motor, test the switch; if the switch is functional, the wiper control relay may be faulty. For an inoperative interval function, check the continuity of all wiring between the switch and wiper control module. If the wipers fail to park when the switch is turned off, check for voltage at the park feed wire of the wiper motor connector with the switch OFF and ignition ON; if no voltage is present, look for an open circuit between the wiper motor and the fuse panel. For replacement, remove the wiper arm mounting nuts, mark the position of each wiper arm to its shaft, and remove the arms, using a battery terminal remover if necessary. Then, remove the plastic cowl cover, disconnect the electrical connector from the wiper motor, and take out the wiper motor and link assembly mounting bolts to remove the assembly from the cowl area. Use a screwdriver to pry the linkage rod from the crank arm pivot of the wiper motor, remove the crank arm nut while marking the relationship of the crank arm to the motor shaft, and detach the crank arm from the shaft. Finally, remove the wiper motor mounting bolts and detach the motor, with installation being the reverse of removal.

Genuine Hyundai Sonata Wiper Motor

Windshield Wiper Motor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

15 Wiper Motors found

View related parts
Hyundai Sonata Windshield Wiper Motor Assembly
Part Number: 98110-C2000
$148.32 MSRP: $208.39
You Save: $60.07 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly-Windshield Wiper; Wiper Motor
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2015-2017 Hyundai Sonata | DOHC - GDI, DOHC - TCI/GDI | Sedan - 4Door 5P
View related parts

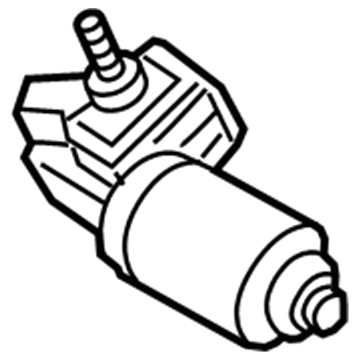

Hyundai Sonata Windshield Wiper Motor Assembly
Part Number: 98110-C2050
$146.73 MSRP: $206.15
You Save: $59.42 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly-Windshield Wiper; Wiper Motor
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2018-2019 Hyundai Sonata | DOHC - GDI, DOHC - TCI/GDI | Sedan - 4Door 5P
View related parts
Hyundai Sonata Windshield Wiper Motor Assembly,Left
Part Number: 98110-3K000
$206.62 MSRP: $290.29
You Save: $83.67 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly-Windshield Wiper,Lh; Wiper Motor
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2005-2010 Hyundai Sonata | High Grade, Middle Grade | DOHC - MPI | 4 Door Sedan, Sedan - 4Door 5P
View related parts
Hyundai Sonata Windshield Wiper Motor Assembly
Part Number: 98100-33001
$221.18 MSRP: $305.44
You Save: $84.26 (28%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly-Windshield Wiper
- Replaced by: 98100-33002
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1988-1993 Hyundai Sonata | High Grade, Middle Grade | 4 Door
View related parts
Hyundai Sonata Windshield Wiper Motor Assembly
Part Number: 98100-33002
$217.40 MSRP: $305.44
You Save: $88.04 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly-Windshield Wiper; Front Motor, Motor, Wiper Motor
- Replaces: 98100-33001, 98100-33200
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1988-1993 Hyundai Sonata | High Grade, Middle Grade | 4 Door
View related parts
Hyundai Sonata Windshield Wiper Motor Assembly
Part Number: 98100-33200
$221.18 MSRP: $305.44
You Save: $84.26 (28%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly-Windshield Wiper
- Replaced by: 98100-33002
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1988-1993 Hyundai Sonata | High Grade, Middle Grade | 4 Door
View related parts
Hyundai Sonata Windshield Wiper Motor Assembly
Part Number: 98100-33201
$221.18 MSRP: $305.44
You Save: $84.26 (28%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly-Windshield Wiper
- Replaced by: 98100-33002
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1988-1993 Hyundai Sonata | High Grade, Middle Grade | 4 Door
View related parts
Hyundai Sonata Windshield Wiper Motor Assembly
Part Number: 98100-34150
$221.18 MSRP: $305.44
You Save: $84.26 (28%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly-Windshield Wiper
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1993-1998 Hyundai Sonata | High Grade, Middle Grade | 4 Door
View related parts
Hyundai Sonata Windshield Wiper Motor Assembly
Part Number: 98100-34210
$217.40 MSRP: $305.44
You Save: $88.04 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly-Windshield Wiper; Wiper Motor, Wiper Motor Assembly
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1993-1998 Hyundai Sonata | High Grade, Middle Grade | 4 Door
View related parts
Hyundai Sonata Windshield Wiper Motor Assembly
Part Number: 98110-38501
$312.91 MSRP: $439.63
You Save: $126.72 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly-Windshield Wiper; Wiper Motor, Wiper Motor Assembly
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2001-2005 Hyundai Sonata | High Grade, Middle Grade | 4 Door Sedan
View related parts
Hyundai Sonata Windshield Wiper Motor Assembly
Part Number: 98110-38500
$357.61 MSRP: $506.84
You Save: $149.23 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly-Windshield Wiper; Wiper Motor, Wiper Motor Assembly
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2001-2005 Hyundai Sonata | High Grade, Middle Grade | 4 Door Sedan
View related parts
Hyundai Sonata Windshield Wiper Motor Assembly
Part Number: 98110-38100
$380.99 MSRP: $530.66
You Save: $149.67 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly-Windshield Wiper
- Replaced by: 98110-38200
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1998-2001 Hyundai Sonata | High Grade, Middle Grade | 4 Door
View related parts
Hyundai Sonata Windshield Wiper Motor Assembly
Part Number: 98110-38200
$374.41 MSRP: $530.66
You Save: $156.25 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly-Windshield Wiper; Wiper Motor, Wiper Motor Assembly
- Replaces: 98110-38100
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1998-2005 Hyundai Sonata | High Grade, Middle Grade | 4 Door, 4 Door Sedan
View related parts
Hyundai Sonata Windshield Wiper Motor Assembly
Part Number: 98110-C1950
$116.25 MSRP: $163.32
You Save: $47.07 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly-Windshield Wiper; Front Motor, Wiper Motor
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2020-2023 Hyundai Sonata | DOHC - GDI, DOHC - TCI/GDI | Sedan - 4Door 5P
View related parts
Hyundai Sonata Windshield Wiper Motor Assembly
Part Number: 98110-1U000
$185.44 MSRP: $260.53
You Save: $75.09 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly-Windshield Wiper; Wiper Motor
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2009-2014 Hyundai Sonata | DOHC - GDI, DOHC - TCI/GDI | Sedan - 4Door 5P

Hyundai Sonata Wiper Motor

If you are looking for affordable high-quality OEM Hyundai Sonata Wiper Motor, then you have come to the prime place. Our website provides a large amount of genuine Hyundai Sonata Wiper Motor at unbeatable prices. All our parts come backed with the manufacturer's warranty.

Hyundai Sonata Wiper Motor Parts Questions & Experts Answers

Windshield Wiper Motor Assembly
98110-38500
Q: How do you check the wiper motor circuit on Hyundai Sonata?
A: To check the wiper motor circuit, probe a grounded 12-volt test light to each terminal at a connector until it lights to verify voltage at the terminal. If the wipers operate slowly, ensure the battery is in good condition and has a strong charge; if so, remove the wiper motor and operate the wiper arms by hand, checking for binding linkage and pivots, lubricating or repairing as necessary before reinstalling the motor. If the wipers still operate slowly, inspect for loose or corroded connections, particularly the ground connection, and replace the motor if all connections appear fine. If the wipers do not operate when activated, check the Fuse in the driver's side interior fuse panel; if the fuse is intact, connect a jumper wire between the wiper motor's ground terminal and ground, then retest. If the motor works, repair the ground connection; if not, check for voltage at the motor with the wiper switch in the HI position, noting that the cowl cover must be removed to access the wiper motor electrical connector. If voltage is present at the connector, remove the motor and test it off the vehicle with fused jumper wires from the battery; if it works, check for binding linkage, and if it doesn't, replace it. If there is no voltage to the motor, check for voltage at the wiper control relays, and if voltage is present at the relays but not at the motor, test the switch; if the switch is functional, the wiper control relay may be faulty. For an inoperative interval function, check the continuity of all wiring between the switch and wiper control module. If the wipers fail to park when the switch is turned off, check for voltage at the park feed wire of the wiper motor connector with the switch OFF and ignition ON; if no voltage is present, look for an open circuit between the wiper motor and the fuse panel. For replacement, remove the wiper arm mounting nuts, mark the position of each wiper arm to its shaft, and remove the arms, using a battery terminal remover if necessary. Then, remove the plastic cowl cover, disconnect the electrical connector from the wiper motor, and take out the wiper motor and link assembly mounting bolts to remove the assembly from the cowl area. Use a screwdriver to pry the linkage rod from the crank arm pivot of the wiper motor, remove the crank arm nut while marking the relationship of the crank arm to the motor shaft, and detach the crank arm from the shaft. Finally, remove the wiper motor mounting bolts and detach the motor, with installation being the reverse of removal.
