How to remove and insatall a tie-rod end on Hyundai Santa Fe?

Since this operation is on a car, first, loosen the wheel lug nuts and raise the front of the car using a jack, supporting the car with jackstands and block the rear wheels as well as set the parking brake before finally removing the front wheel. After that tighten a tie-rod with the use of locking pliers or a wrench depending on their thickness and size that do not come off and loosen the jam nut just enough to mark the position of the tie-rod end with reference to the threadings, as permit the new tie-rod end threaded on the same number of turns. Disconnect the tie from the steering knuckle arm by loosening the cotter pin then the nut on the tie-rod end stud then use puller to get it off. When this is done, use an open-wrench to unfasten the nut and, in the process, release the tie-rod end from the tie-rod. For the installation, pass the tie-rod end through the marked design and subject the tie-rod stud through the steering knuckle arm then tighten the jam nut firmly. Place the castle nut on the stud and turn it sufficiently tight, then place a new cotter pin. Lastly, fit the wheel and both lugs and nuts tight, lower the vehicle and then tighten the lug nuts to the recommended torque, and then have the alignment checked by either the dealer service department or an alignment store.

Genuine Hyundai Santa Fe Tie Rod End

Steering Rod End

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

10 Tie Rod Ends found

View related parts

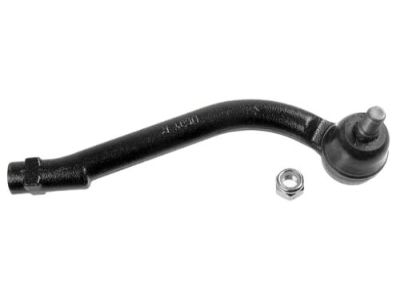

Hyundai Santa Fe End Assembly-Tie Rod,LH
Part Number: 56820-2W000
$124.91 MSRP: $175.50
You Save: $50.59 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Outer Tie Rod
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2013-2018 Hyundai Santa Fe | DOHC - GDI | Wagon - Long 5Door 6P, Wagon - Long 5Door 7P
View related parts

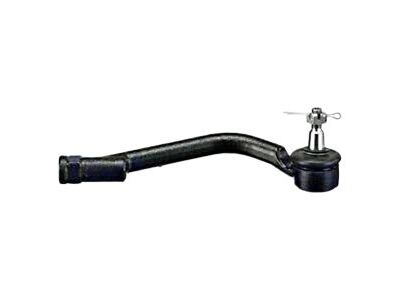

Hyundai Santa Fe End Assembly-Tie Rod,RH
Part Number: 56820-2W050
$124.91 MSRP: $175.50
You Save: $50.59 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Outer Tie Rod
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2013-2015 Hyundai Santa Fe | DOHC - GDI | Wagon - Long 5Door 6P, Wagon - Long 5Door 7P
View related parts
Hyundai Santa Fe End Assembly-Tie Rod,LH
Part Number: 56820-2B000
$154.29 MSRP: $216.77
You Save: $62.48 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Outer Tie Rod
- Manufacturer Note: LH
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2006-2012 Hyundai Santa Fe | High Grade, Middle Grade | DOHC - MPI | 5 Door Wagon, 5 Door Wagon 7, Wagon - 5Door 5P, Wagon - 5Door 7P
View related parts
Hyundai Santa Fe End Assembly-Tie Rod,LH
Part Number: 56820-M5000
$191.25 MSRP: $268.69
You Save: $77.44 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Outer Tie Rod
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2019-2020 Hyundai Santa Fe | DOHC - GDI, DOHC - TCI/GDI | Wagon - 5Door 5P
View related parts
Hyundai Santa Fe End Assembly-Tie Rod,RH
Part Number: 56825-M5000
$191.25 MSRP: $268.69
You Save: $77.44 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Outer Tie Rod
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2019-2020 Hyundai Santa Fe | DOHC - GDI, DOHC - TCI/GDI | Wagon - 5Door 5P
View related parts
Hyundai Santa Fe End Assembly-Tie Rod,RH
Part Number: 56820-2B900
$154.29 MSRP: $216.77
You Save: $62.48 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Outer Tie Rod
- Manufacturer Note: RH
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2006-2012 Hyundai Santa Fe | High Grade, Middle Grade | DOHC - MPI | 5 Door Wagon, 5 Door Wagon 7, Wagon - 5Door 5P, Wagon - 5Door 7P
View related parts
Hyundai Santa Fe End Assembly-Tie Rod
Part Number: 56820-3B000
$88.83 MSRP: $124.81
You Save: $35.98 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Outer Tie Rod
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2000-2006 Hyundai Santa Fe | High Grade, Middle Grade | 5 Door Wagon
View related parts
Hyundai Santa Fe End Assembly-Tie Rod,RH
Part Number: 56825-S2500
$163.34 MSRP: $229.48
You Save: $66.14 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Outer Tie Rod
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2021-2023 Hyundai Santa Fe | DOHC - GDI, DOHC - TCI/GDI | Wagon - 5Door 5P
View related parts
Hyundai Santa Fe End Assembly-Tie Rod,RH
Part Number: 56825-2W050
$124.91 MSRP: $175.50
You Save: $50.59 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Outer Tie Rod
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2016-2018 Hyundai Santa Fe | DOHC - GDI | Wagon - Long 5Door 6P, Wagon - Long 5Door 7P
View related parts
Hyundai Santa Fe End Assembly-Tie Rod,LH
Part Number: 56820-S2500
$163.34 MSRP: $229.48
You Save: $66.14 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Outer Tie Rod
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 2021-2023 Hyundai Santa Fe | DOHC - GDI, DOHC - TCI/GDI | Wagon - 5Door 5P

Hyundai Santa Fe Tie Rod End

If you are looking for affordable high-quality OEM Hyundai Santa Fe Tie Rod End, then you have come to the prime place. Our website provides a large amount of genuine Hyundai Santa Fe Tie Rod End at unbeatable prices. All our parts come backed with the manufacturer's warranty.

Hyundai Santa Fe Tie Rod End Parts Questions & Experts Answers

End Assembly-Tie Rod,LH
56820-2B000
Q: How to remove and insatall a tie-rod end on Hyundai Santa Fe?
A: Since this operation is on a car, first, loosen the wheel lug nuts and raise the front of the car using a jack, supporting the car with jackstands and block the rear wheels as well as set the parking brake before finally removing the front wheel. After that tighten a tie-rod with the use of locking pliers or a wrench depending on their thickness and size that do not come off and loosen the jam nut just enough to mark the position of the tie-rod end with reference to the threadings, as permit the new tie-rod end threaded on the same number of turns. Disconnect the tie from the Steering Knuckle arm by loosening the cotter pin then the nut on the tie-rod end stud then use puller to get it off. When this is done, use an open-wrench to unfasten the nut and, in the process, release the tie-rod end from the tie-rod. For the installation, pass the tie-rod end through the marked design and subject the tie-rod stud through the steering knuckle arm then tighten the jam nut firmly. Place the castle nut on the stud and turn it sufficiently tight, then place a new cotter pin. Lastly, fit the wheel and both lugs and nuts tight, lower the vehicle and then tighten the lug nuts to the recommended torque, and then have the alignment checked by either the dealer service department or an alignment store.

Genuine Hyundai Santa Fe Tie Rod End

10 Tie Rod Ends found

Hyundai Santa Fe Tie Rod End

Hyundai Santa Fe Tie Rod End Parts Questions & Experts Answers
