How to replace a water pump in a Hyundai Excel?

Disconnect the battery's negative terminal and drain the cooling system. Detach the radiator hose from the water pump and remove the left engine mount for 1994 and earlier models. Loosen the water pump pulley bolts, remove the drivebelts and pulley bolts. For 2011 and earlier models, remove the timing belt, tensioner, and alternator bracket. Detach the water pump from the engine, noting bolt locations. Clean bolt threads and engine holes. Compare the new pump to the old one, remove old gasket material, and clean mating surfaces. Install a new O-ring in the coolant pipe, lubricate with coolant, and apply RTV sealant to the new gasket and pump. Attach the pump and gasket to the engine, threading bolts finger tight. Install remaining bolts and tighten in 1/4-turn increments. Reinstall removed parts, refill the cooling system, and check drivebelt tension. Run the engine to check for leaks.

What are the ways to check the operation of the water pump while it's installed on the engine on Hyundai Excel?

A faulty water pump can cause engine damage due to overheating. Three ways to check the pump are: squeezing the upper radiator hose while the engine is running, which should result in a pressure surge; checking the weep hole for coolant leaks, which indicate a seal failure; and listening for a howling sound or feeling for shaft wear in the pulley, both signs of bearing failure. If any of these issues are present, the water pump should be replaced. Don't confuse drivebelt slippage, which causes a squealing sound, with water pump failure.

Genuine Hyundai Excel Water Pump

H2O Pump

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Water Pumps found

View related parts

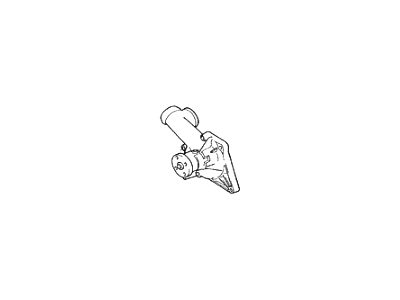

Hyundai Excel Pump Assembly-Coolant
Part Number: 25100-21010
$105.09 MSRP: $144.26
You Save: $39.17 (28%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 25100-22650
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1985-1989 Hyundai Excel
View related parts

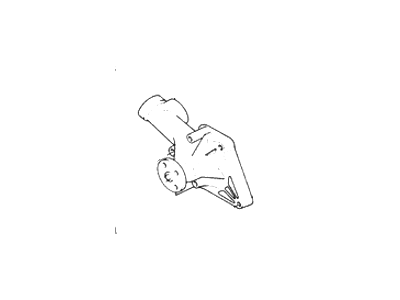

Hyundai Excel Pump Assembly-Coolant
Part Number: 25100-21000
$105.09 MSRP: $144.26
You Save: $39.17 (28%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 25100-22650
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1985-1994 Hyundai Excel | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door, 5 Door
View related parts

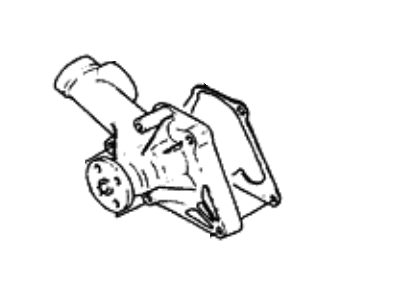

Hyundai Excel Pump Assembly-Coolant
Part Number: 25100-22010
$105.09 MSRP: $144.26
You Save: $39.17 (28%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 25100-22650
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1990-1994 Hyundai Excel | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door, 5 Door
View related parts
Hyundai Excel Pump Assembly-Coolant
Part Number: 25100-24030
$105.09 MSRP: $144.26
You Save: $39.17 (28%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 25100-22650
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1990-1994 Hyundai Excel | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door, 5 Door
View related parts
Hyundai Excel Pump Assembly-Coolant
Part Number: 25100-24040
$105.09 MSRP: $144.26
You Save: $39.17 (28%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 25100-22650
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1990-1994 Hyundai Excel | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door, 5 Door
View related parts
Hyundai Excel Pump Assembly-Coolant
Part Number: 25100-24060
$105.09 MSRP: $144.26
You Save: $39.17 (28%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 25100-22650
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1990-1994 Hyundai Excel | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door, 5 Door

Hyundai Excel Water Pump

The Water Pump is appearing in Hyundai Excel vehicles and it is used to pump coolant from the water outlet which is located in the radiator to the engine, where it absorbs the heat also known as heat produced during the process of combustion. Common types of pumps used in excel models include a belt driven water pump with an impeller that circulates water through the block to the radiator. Although the old models of water pumps comprised principally cast iron, latest models are primarily aluminum casting having a shaft with bearings in order to avoid leakage of coolant. Possible signs that indicate that the water pump is bad: Coolant leakage, loud noises from the water pump bearings, and, overheating of the car engine. Other improvements include high-quality water pumps where impellers and internal passages are improved to increase the flow of coolant and decrease the power robbing losses. Regarding the specifics, some options are electric water pumps for maintaining larger power and precise cooling in cases when there is little space for additional fluid.

If you are looking for affordable high-quality OEM Hyundai Excel Water Pump, then you have come to the prime place. Our website provides a large amount of genuine Hyundai Excel Water Pump at unbeatable prices. All our parts come backed with the manufacturer's warranty.

Hyundai Excel Water Pump Parts Questions & Experts Answers

Pump Assembly-Coolant
25100-22010
Q: How to replace a water pump in a Hyundai Excel?
A: Disconnect the battery's negative terminal and drain the cooling system. Detach the radiator hose from the water pump and remove the left engine mount for 1994 and earlier models. Loosen the water pump pulley bolts, remove the drivebelts and pulley bolts. For 2011 and earlier models, remove the timing belt, tensioner, and alternator bracket. Detach the water pump from the engine, noting bolt locations. Clean bolt threads and engine holes. Compare the new pump to the old one, remove old gasket material, and clean mating surfaces. Install a new O-ring in the coolant pipe, lubricate with coolant, and apply RTV sealant to the new gasket and pump. Attach the pump and gasket to the engine, threading bolts finger tight. Install remaining bolts and tighten in 1/4-turn increments. Reinstall removed parts, refill the cooling system, and check drivebelt tension. Run the engine to check for leaks.
Pump Assembly-Coolant
25100-21000
Q: What are the ways to check the operation of the water pump while it's installed on the engine on Hyundai Excel?
A: A faulty water pump can cause engine damage due to overheating. Three ways to check the pump are: squeezing the upper radiator hose while the engine is running, which should result in a pressure surge; checking the weep hole for coolant leaks, which indicate a seal failure; and listening for a howling sound or feeling for shaft wear in the pulley, both signs of bearing failure. If any of these issues are present, the water pump should be replaced. Don't confuse drivebelt slippage, which causes a squealing sound, with water pump failure.
