How to troubleshoot and replace a faulty blower motor in a Hyundai Excel?

If the blower motor doesn't work, disconnect its electrical connector and use a test light between the harness connector terminals. If the test light glows, the power and ground circuits are fine, and the motor should be replaced. If not, identify the power and ground terminals. Connect the test light to a good chassis ground and probe the power terminal. If the light doesn't illuminate, check the fuse, relay, and wiring. If it does, check the ground circuit's continuity. If the motor works at some speeds, disconnect the blower resistor's electrical connector and check for continuity. If any resistor is open, replace the assembly. If the resistors are fine, remove the control panel and check for continuity in the blower switch and wires. Check for continuity to chassis ground at the blower switch harness connector ground wire. To replace the blower motor resistor, disconnect the electrical connector and remove the screws. To replace the motor, remove the lower dash panel and glovebox, disconnect the connectors, detach the wiring harness, and remove the motor. Installation is the reverse of removal.

Genuine Hyundai Excel Blower Motor

A/C Heater Blower Motor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Blower Motors found

View related parts

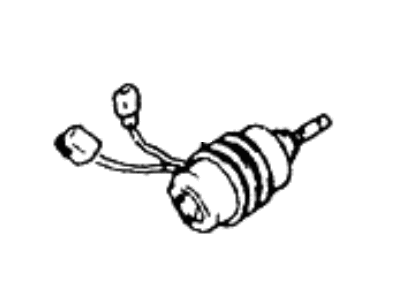

Hyundai Excel Motor-Heater Blower
Part Number: 97116-24051
$258.09 MSRP: $362.61
You Save: $104.52 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Blower Motor, Motor
- Replaces: 97116-24000
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1990-1994 Hyundai Excel | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door, 5 Door
View related parts
Hyundai Excel Motor-Heater Blower
Part Number: 97116-24000
$262.59 MSRP: $362.61
You Save: $100.02 (28%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 97116-24051
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1990-1994 Hyundai Excel | High Grade, Low Grade, Middle Grade | 3 Door, 4 Door, 5 Door
View related parts

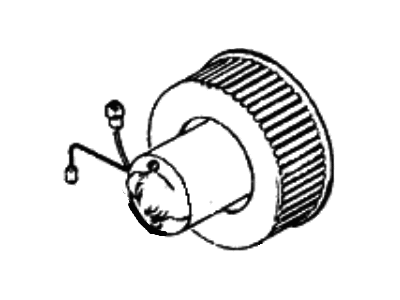

Hyundai Excel Fan & Motor Assembly
Part Number: 97130-21000
$161.23 MSRP: $226.52
You Save: $65.29 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Blower Motor
- Replaces: 97132-21100, 97131-21100
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1985-1989 Hyundai Excel
View related parts
Hyundai Excel Motor
Part Number: 97131-21100
$165.02 MSRP: $226.52
You Save: $61.50 (28%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Net
- Replaced by: 97130-21000
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1985-1989 Hyundai Excel
View related parts

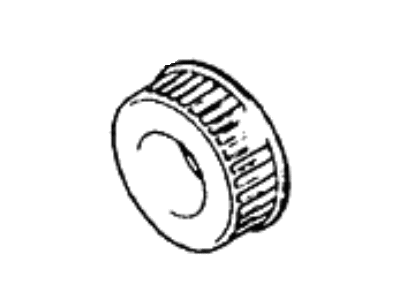

Hyundai Excel Fan
Part Number: 97132-21100
$165.02 MSRP: $226.52
You Save: $61.50 (28%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 97130-21000
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1985-1989 Hyundai Excel
View related parts
Hyundai Excel Blower Motor Assembly
Part Number: 97116-21000
$2.03 MSRP: $2.66
You Save: $0.63 (24%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor & Fan Assembly-Air Conditioner Blower
- Warranty: This genuine part is guaranteed by Hyundai's factory warranty.
Fits the following Vehicles:
- 1985-1989 Hyundai Excel

Hyundai Excel Blower Motor

The Blower Motor in Hyundai Excel is widely used in the car's Heating, Ventilation, and Air Conditioning or HVAC system where it has the function of regulating the amount of air that is blown inside the car. Another feature is the blower motor controls on the dash, to control the quantity of air that is supplied for heating or cooling functions. Normally, it is wired with the help of wires to a control module and usually, the blower motor control is located within an automobile. However mechanical and electrical problems such as failure of an electronic module or a wiring problem that may interfere with the operations of the control, can lead to a compromise of the AC and heating system. Any issues with the blower motor controls should be attended too as a way of ensuring a comfortable driving environment.

If you are looking for affordable high-quality OEM Hyundai Excel Blower Motor, then you have come to the prime place. Our website provides a large amount of genuine Hyundai Excel Blower Motor at unbeatable prices. All our parts come backed with the manufacturer's warranty.

Hyundai Excel Blower Motor Parts Questions & Experts Answers

Motor-Heater Blower
97116-24000
Q: How to troubleshoot and replace a faulty blower motor in a Hyundai Excel?
A: If the blower motor doesn't work, disconnect its electrical connector and use a test light between the harness connector terminals. If the test light glows, the power and ground circuits are fine, and the motor should be replaced. If not, identify the power and ground terminals. Connect the test light to a good chassis ground and probe the power terminal. If the light doesn't illuminate, check the fuse, relay, and wiring. If it does, check the ground circuit's continuity. If the motor works at some speeds, disconnect the blower resistor's electrical connector and check for continuity. If any resistor is open, replace the assembly. If the resistors are fine, remove the control panel and check for continuity in the blower switch and wires. Check for continuity to chassis ground at the blower switch harness connector ground wire. To replace the blower motor resistor, disconnect the electrical connector and remove the screws. To replace the motor, remove the lower dash panel and glovebox, disconnect the connectors, detach the wiring harness, and remove the motor. Installation is the reverse of removal.
