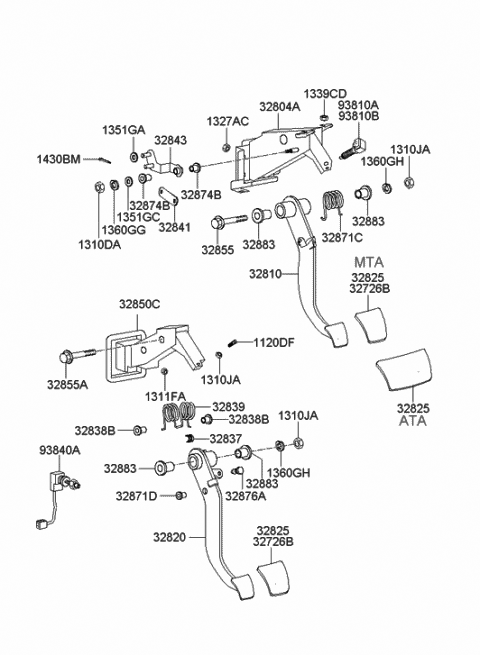

Hyundai 93810-38100 Stop Lamp Switch Assembly

You can Select Your Vehicle to check if 93810-38100 fits your vehicle.

Remove the lower panel from under the driver's side of the dash and disconnect the electrical connector to the brake light switch. For 2010 and earlier 1.BL models and all 2012 and earlier 2.0L models, the brake light switch is located on a bracket at the top of the brake pedal. Loosen the locknut and unscrew the switch from the pedal bracket, with installation being the reverse of removal. Check and, if necessary, adjust brake pedal height, then loosen the switch locknut and adjust the switch so that the pedal has freeplay. Plug the electrical connector into the switch, ensuring the brake lights come on when the pedal is depressed and go off when released; repeat the adjustment procedure if necessary. For 2011 and later 1.BL models and all 2013 and later models, pull the locking plate tab outwards, rotate the switch 1/4-turn (45-degrees), and pull the switch out of the bracket. Hold the brake pedal arm firmly, insert the brake switch into the bracket until seated, rotate the switch 1/4-turn (45-degrees), and push the locking plate into place before connecting the electrical connector to the switch, with installation being the reverse of removal.

The brake light switch is located on a bracket at the top of the brake pedal. For 2010 and earlier models, loosen the locknut and unscrew the switch from its bracket, then disconnect the wiring harness. For 2011 and later models, remove the lower panel from under the driver's side of the dash, disconnect the electrical connector to the brake light switch, pull the locking plate tab outwards, rotate the switch 1/4-turn (45-degrees), and pull the switch out of the bracket. Hold the brake pedal arm firmly, insert the brake switch into the bracket until seated, rotate the switch 1/4-turn (45-degrees), push the locking plate into place, and connect the electrical connector. Installation is the reverse of removal. To adjust, check and, if necessary, adjust brake pedal height. For 2010 and earlier models, loosen the switch locknut, adjust the switch for freeplay, and ensure the brake lights function properly when the pedal is depressed and released. For 2011 and later models, check the gap between the tip of the switch and the bracket using a feeler gauge, and if incorrect, remove and reinstall the switch until the clearance is correct.

Repeat the adjustment procedure until the brake lights function properly.
