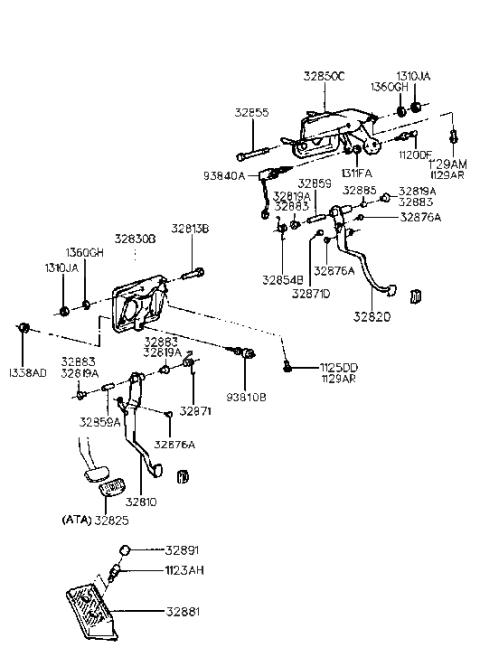

Hyundai 93810-22100 Stop Lamp Switch Assembly

You can Select Your Vehicle to check if 93810-22100 fits your vehicle.

To remove the lower dash panel trim under the steering column, locate the brake light switch mounted at the top of the left side brake pedal support. Unplug the switch wiring from the electrical connector. For 2011 and earlier models, unscrew the locknut and switch from its bracket. For 2012 and later models, pull down the locking tab and rotate the switch counterclockwise to remove it from the bracket. Depress the brake pedal, insert the switch into the pedal bracket, and rotate it clockwise. Slowly allow the pedal to contact the switch, which will automatically adjust to the proper gap. Installation is the reverse of removal.

Loosen the switch locknut, adjust the switch so that the pedal has freeplay, then tighten the locknut.

Disconnect the electrical connector to the brake light switch.
