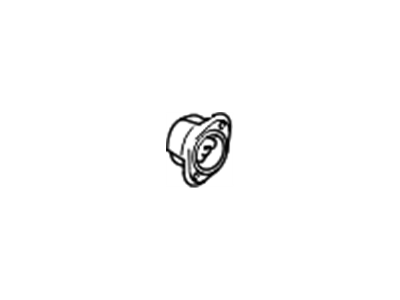

Hyundai 35170-37100 Sensor Assembly-Throttle Position

You can Select Your Vehicle to check if 35170-37100 fits your vehicle.

The TP sensor is located on the throttle body. To replace it, first disconnect the cable from the negative battery terminal. If necessary, remove the engine cover. Next, disconnect the TP sensor electrical connector, which has slotted mounting holes for adjustment. Mark the position of the sensor if you plan to reinstall the same one, then remove the TP sensor mounting screws and take the sensor off the throttle body. Install the new sensor and rotate it until the mounting holes align with those in the throttle body, ensuring that installation is the reverse of removal. For adjustment using a scan tool, connect it to the 16-pin Data Link Connector (DLC) and display the throttle position sensor values. Turn the ignition key to the On position and, with the throttle fully closed, check the value on the scan tool, which should be 300 to 900 millivolts for 2.4L four-cylinder and 3.5L V6 engines, and 250 to 800 millivolts for the 2.7L V6 engine from 2001 to 2006. If the sensor voltage is outside this range, loosen the mounting screws and adjust the sensor until it falls within the specified range, then securely tighten the screws. For adjustment using a voltmeter, connect the negative lead of a high-impedance digital voltmeter to a good ground and the positive lead to the TP sensor signal wire, which may require back probing the connector. The signal wire designations are Terminal 3 of the TP sensor connector for the 2.4L engine (orange wire), Terminal 3 for the 2.7L engine (red/orange wire), and Terminal 4 for the 3.5L engine (yellow wire). Follow the previous steps to check and adjust the TP sensor as necessary.

The TP sensor is located on the throttle body and is serviceable only on models from 1999 to 2005; for 2006 and later models, it is part of the electronic throttle control module. To replace the sensor, first disconnect the cable from the negative battery terminal, then remove the engine cover if necessary. Disconnect the TP sensor electrical connector, mark the position of the sensor if planning to reinstall the same one, and remove the mounting screws to take the sensor off the throttle body. Install the new or reinstalled sensor by aligning the mounting holes and tightening the screws securely. For adjustment, use a high-impedance digital voltmeter to back probe terminals 1 and 3 of the TP sensor electrical connector, ensuring the ignition key is in the on position. With the throttle fully closed, the voltmeter should read between 300 to 900 millivolts, and as the throttle opens, the voltage should increase evenly to about 4.5 volts. If the voltage is outside this range, adjust the sensor by loosening the mounting screws and turning it until the correct voltage is achieved. For V6 engines from 2005 and earlier, unplug the electrical connector, insert a 0.025-inch feeler gauge between the throttle lever and its stop, and connect an ohmmeter between terminals 1 and 2 of the TP sensor. Adjust the sensor until continuity is registered, then reconnect the electrical connector. Finally, check the sensor output voltage with the voltmeter; it should be between 250 to 800 millivolts, and if not, repeat the adjustment procedure or consider that the TP sensor may be faulty.
