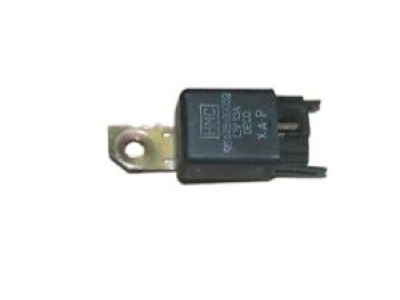

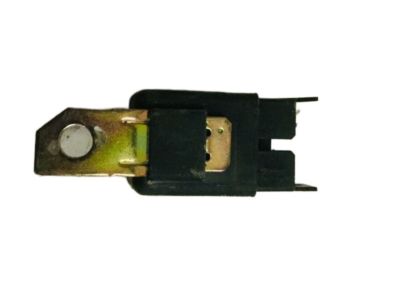

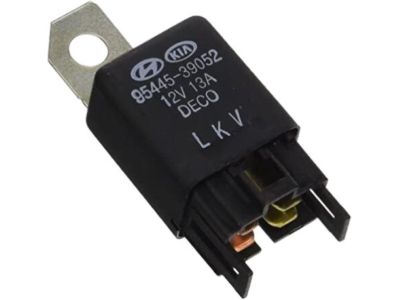

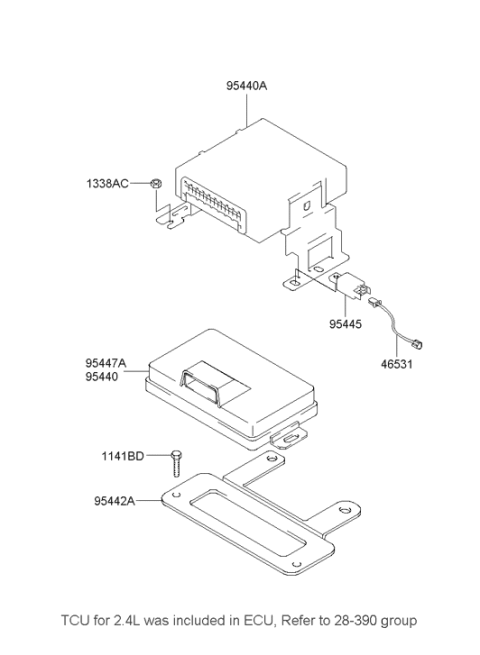

Hyundai 95445-39052 Relay-A/T Control

You can Select Your Vehicle to check if 95445-39052 fits your vehicle.

To test a relay, connect an ohmmeter across the two terminals of the power circuit; continuity should not be indicated. Then, connect a fused jumper wire between one control circuit terminal and the positive battery terminal, and another jumper wire between the other control circuit terminal and ground. The relay should click and continuity should be indicated on the meter.

Connect an ohmmeter across the two terminals of the power circuit; continuity should not be indicated. For a typical four-terminal normally open relay, connect an ohmmeter to the power circuit terminals-continuity should be indicated when the relay is energized and not when it is not. Then, connect a fused jumper wire from one control circuit terminal to the positive battery terminal and another jumper wire from the other control circuit terminal to ground. The relay should click and continuity should be indicated on the meter. If it doesn't click, try swapping the jumper wires.

There are four basic types of relays: some are normally open, some are normally closed, and others include a circuit of each type.
