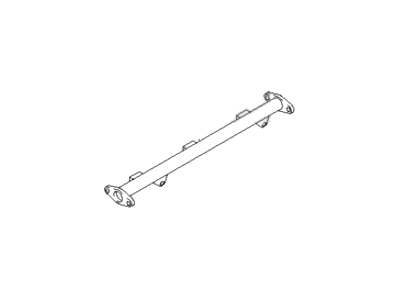

Hyundai 35304-37100 Pipe-Delivery Lower

You can Select Your Vehicle to check if 35304-37100 fits your vehicle.

To replace injector O-rings, first relieve fuel pressure and disconnect the battery. Remove the engine cover, air intake duct, and on V6 models, the upper intake manifold. Disconnect the fuel injectors' electrical connectors and remove the fuel rail. Pull out the injectors from the fuel rail, replace the grommets and O-rings if reusing injectors. Finally, install new O-rings and secure the fuel rail.

Replacing injector O-rings is recommended even if only one is leaking to avoid future issues. For 2010 and earlier models, after relieving fuel pressure and disconnecting the battery cable, removal involves disconnecting injectors' electrical connectors, removing the fuel rail assembly, replacing O-rings and grommets if reusing injectors, then reassembling. For 2011 and later models, the intake manifold is removed, high-pressure fuel pipe disconnected, injectors' electrical connectors and fuel rail pressure sensor disconnected, fuel rail mounting bolts removed, retaining clips for each injector removed, and upper O-rings discarded. Injector installation requires thorough cleaning, lubing new upper O-rings with oil, cleaning injector bores, inserting injectors into fuel rail, tightening new fuel rail mounting bolts, and reassembling. In both cases, Teflon sealing rings can be installed with special tools or by fitting onto a socket and using plastic tubing for shrinkage. Careful attention is needed to avoid damaging components.
