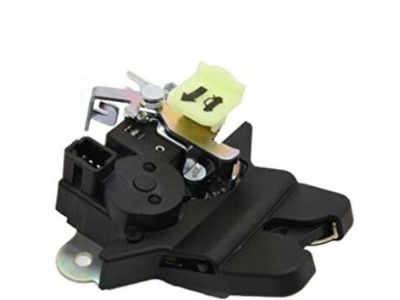

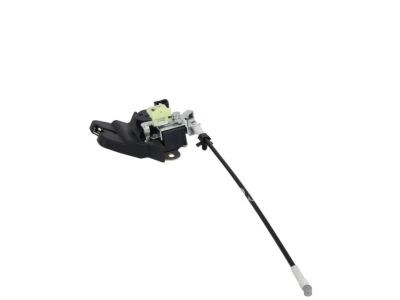

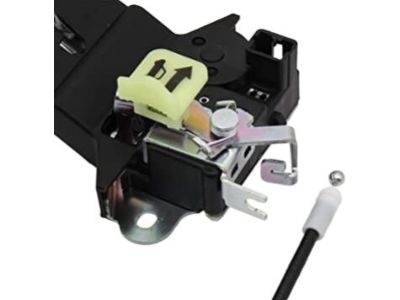

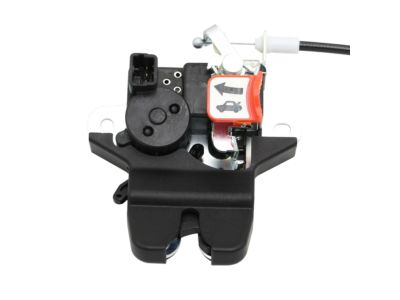

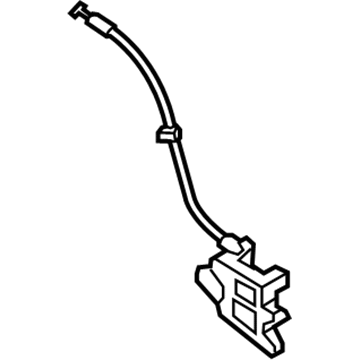

Hyundai 81230-3Q000 Trunk Lid Latch And Handle Assembly

You can Select Your Vehicle to check if 81230-3Q000 fits your vehicle.

If the trunk latch fails to operate with the remote release, first check that the lock mechanism at the latch is set to the Unlock position. To address the trunk lid latch, open the trunk and remove the trunk lid trim panel. Disconnect the electrical connector for the power lock, remove the plastic cover, disconnect the outside trunk release handle-to-latch cable, and disconnect the trunk lock cylinder-to-latch rod. All trunk lid lock rods are attached by plastic clips, which can be removed by unsnapping the portion engaging the connecting rod and pulling the rod out of its locating hole. Remove the fasteners securing the latch to the trunk lid and take out the latch assembly, then installation is the reverse of removal. For the trunk lid lock cylinder, open the trunk and remove the trunk lid trim panel. Through the large access hole, disengage the outside trunk lid lock cylinder-to-latch rod. Again, remove the plastic clips from the lock rods, disconnect the wiring harness, and take out the lock cylinder mounting fasteners to remove the lock cylinder, followed by installation in reverse order.

The door and trunk locks should be lubricated with spray-on graphite lubricant.

The door latch strikers should be lubricated with a thin coat of grease to reduce wear and ensure free movement.
