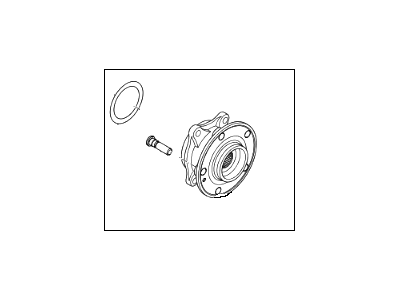

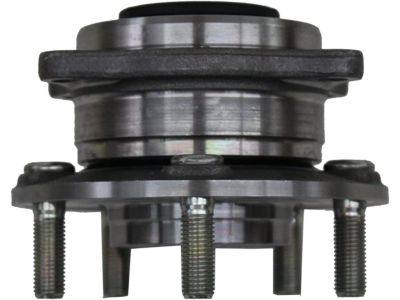

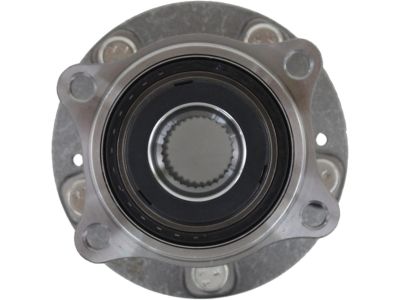

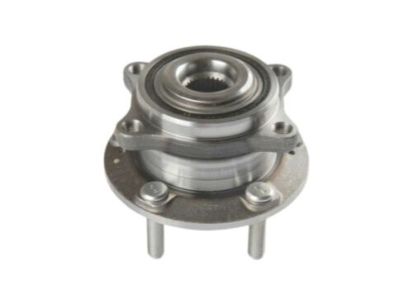

Hyundai 51750-3J000 Wheel Hub Assembly

You can Select Your Vehicle to check if 51750-3J000 fits your vehicle.

In case of models between 2001 and 2006, the pressing of the hub and bearing from the steering knuckle is not possible with the regular tools; therefore, it is preferable to contact a specialized workshop. The steering knuckle and hub can be unbolted and brought to a dealer service department or any other competent repair garage for the old bearing to be replaced with the new one by pressing. C 2007 mode and above start with the removal of the front wheel lug nuts, lift the front of the car, supported it with jackstands. Subsequently, take out the wheel, then the managed shafting. Then, remove the front end brake caliper, the caliper support bracket, and the brake disc next you. Next, it is required to undo the hub mounting bolts that would help in the separation of the hub from the steering knuckle. Scrub the hub mating surface on the knuckle, place the hub and the bearing and then spannut the bolts in the manner of torque setting. Last, engage in the following actions in the reverse order to all the steps of removal.

1. Remove the drive axle/hub nut. 2. Remove the rear brake disc. 3. Remove the wheel speed sensor. 4. Working from the back side of the knuckle, remove the hub-to-knuckle bolts and separate the hub and bearing assembly from the knuckle. If the drive axle sticks in the hub, use a two-jaw puller to push it out. 5. If necessary for clearance, remove the parking brake shoes. Depending on your tool setup, it may be necessary to remove the drive axle for access to the bolts. 6. Clean the hub mating surface on the knuckle, then install the hub and bearing assembly to the knuckle. Install the bolts and tighten them to the torque. 7. The remainder of installation is the reverse of removal.
