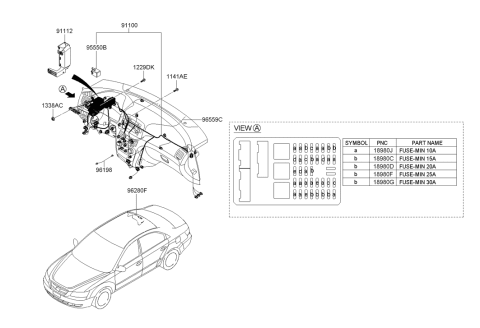

Hyundai 95550-3K200 Flasher Module-Turn Signal

You can Select Your Vehicle to check if 95550-3K200 fits your vehicle.

Remove the hazard relay or flasher unit from the relay box.

To test a relay, connect an ohmmeter across the two terminals of the power circuit. Continuity should not be indicated. For a typical four-terminal normally open relay, connect an ohmmeter to the two terminals of the power circuit; the meter should indicate continuity when the relay is energized and no continuity when it is not. Then, connect a fused jumper wire between one control circuit terminal and the positive battery terminal, and another jumper wire between the other control circuit terminal and ground. The relay should click, and continuity should be indicated on the meter. If it doesn't click, try swapping the jumper wires on the control circuit terminals.
