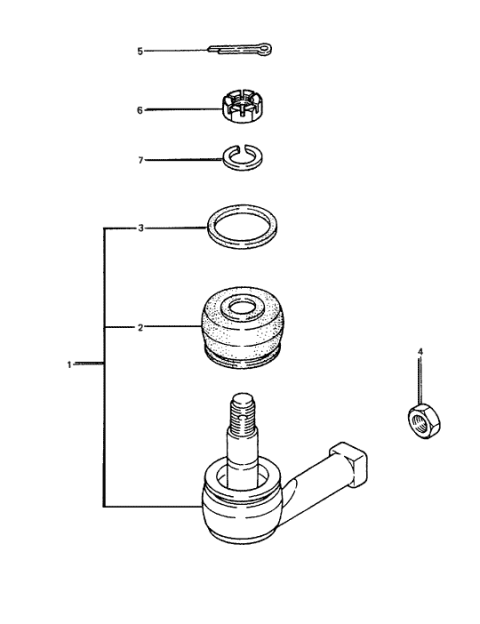

Hyundai 56820-21100 End Assembly-Tie Rod

You can Select Your Vehicle to check if 56820-21100 fits your vehicle.

Loosen the wheel lug nuts. Raise the front of the vehicle, support it securely, block the rear wheels and apply the parking brake. Remove the front wheel(s). Hold the tie-rod with a pair of locking pliers or a wrench and loosen the jam nut enough to mark the position of the lie-rod end in relation to the threads. Loosen the jam nut while holding the tie-rod with a wrench on the flat portion of the rod to prevent It from turning. The relationship of the tie-rod end to the tie-rod can be marked with white paint. Remove the cotter pin and loosen the nut on the tie-rod end stud. Disconnect the tie-rod from the steering knuckle arm with a puller. Use a two-Jaw puller to separate the tie-rod end from the steering knuckle arm. Leave the nut In place to prevent the components from separating violently. Remove the nut and separate the tie-rod. Unscrew the tie-rod end from the tie-rod. Thread the tie-rod end on to the marked position and insert the tie-rod stud into the steering knuckle arm. Tighten the jam nut securely. Install the castellated nut on the stud and tighten it to the torque. Install a new cotter pin. Install the wheel and lug nuts. Lower the vehicle and tighten the lug nuts to the torque. Have the alignment checked by a dealer service department or an alignment shop.
