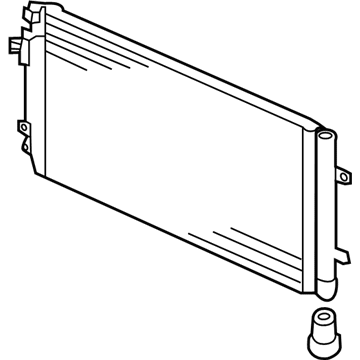

Hyundai 97606-1R000 Condenser Assembly-Cooler

You can Select Your Vehicle to check if 97606-1R000 fits your vehicle.

Have the system discharged and recovered by dealership or other properly equipped repair facility. On 1986 through 1994 models, remove the radiator grille. On 1990 through 1994 models, remove the radiator. On 1995 through 2002 models, remove the two upper radiator mounting bracket bolts and remove the fresh air inlet duct. On 2012 and later models, remove the front bumper cover. Disconnect the refrigerant lines from the condenser. Be sure to use a back-up wrench to avoid twisting the lines. Note: On 1990 through 1994 models, a special spring-lock coupling tool is required to disconnect the refrigerant lines. Immediately cap the open fittings to prevent the entry of dirt and moisture. Drain the engine coolant and remove the radiator and fan assembly. Unbolt the condenser and lift it out of the vehicle. Store it upright to prevent oil loss. Installation: If reusing the condenser, straighten the condenser fins using a fin comb and blow out the debris with compressed air. Caution: Use a face shield and goggles if using compressed air to clean the condenser. Installation is the reverse of removal. If a new condenser was installed, add the proper amount (and type) of refrigerant oil to the system. Have the system evacuated, recharged, and leak tested.
