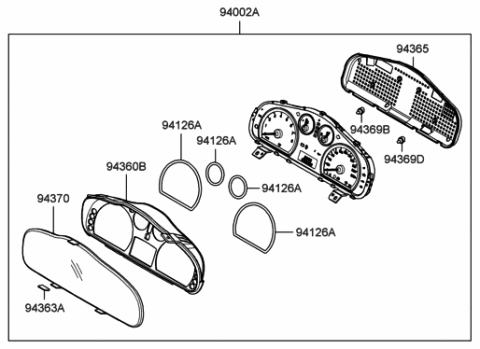

Hyundai 94001-26710 Cluster Assembly-Instrument(Mph)

You can Select Your Vehicle to check if 94001-26710 fits your vehicle.

The steps are as follows: 1. Remove the front seats for easier access. 2. Remove the multi-function switch (see Chapter 12). 3. Remove the dashboard trim panels (see Section 24) and the center floor console (see Section 23). 4. Remove the glove box (see Section 24). 5. Remove the instrument cluster (see Chapter 12). 6. Disconnect the electrical connector from the passenger's side airbag. 7. Remove the audio unit and air conditioning control panel at the center of the dashboard. 8. Remove the driver's knee bolster and reinforcement panel. 9. Unscrew the bolts securing the steering column to the instrument panel and lower it (see Chapter 10). 10. Remove the front pillar trim by prying off the covers from the A pillars using a trim stick or a screwdriver wrapped with electrical tape. 11. Remove the kick panels by prying them off after removing their retaining screws. 12. Disconnect a number of electrical connectors necessary for removing the instrument panel. Most connectors are designed to fit only on their matching connector, but if there is any doubt, mark them with masking tape and a marking pen before disconnecting. 13. Remove all fasteners holding the instrument panel to the body. The instrument panel is secured with bolts at the left end, right end, and center. Once all are removed, lift the panel and pull it away from the windshield to take it out through the door opening. Note that this is a two-person job, and for 2007 and later models, check for additional fasteners located along the lower section below the panel.

Remove the instrument cluster bezel (see Chapter 11).
