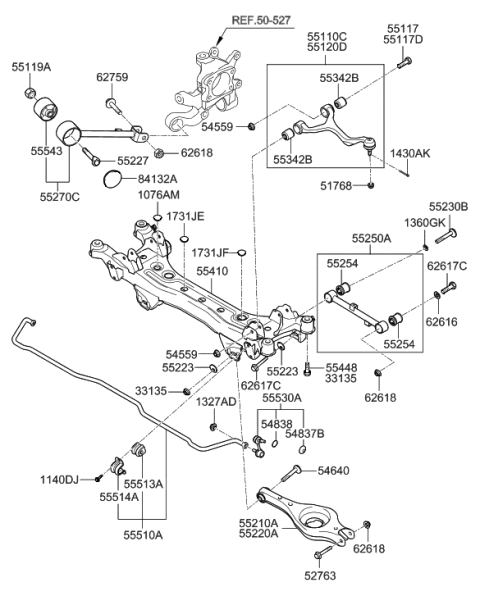

Hyundai 55513-3K000 Bush-Stabilizer Bar

You can Select Your Vehicle to check if 55513-3K000 fits your vehicle.

Loosen the rear wheel lug nuts for one wheel. Raise the rear of the vehicle and support it securely on jackstands. Remove one rear wheel.

6. Remove the universal joint-to-steering gear mounting bolt. 7. Disconnect the tie-rod end from the knuckle. 8. Disconnect the lower arms from the knuckles. 9. Disconnect the exhaust rubber hanger and lower the exhaust. 10. Support the engine from above with an engine support fixture or an engine hoist. Remove the engine front roll stopper mount. 11. Using two floor jacks, support the subframe, positioning one jack on each side of the subframe, midway between the front and rear mounting points. 12. Remove all of the mounting bolts of the subframe and lower it for access to the stabilizer bar mounting bolts. 13. Remove the stabilizer bar mounting bolts, then remove the stabilizer bar from the subframe. 14. Remove the bushings from the stabilizer bar, noting their positions. 15. Remove the stabilizer link nut, then remove the link from the stabilizer bar.
