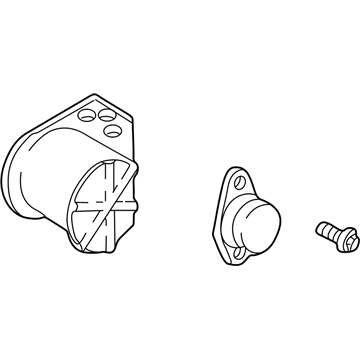

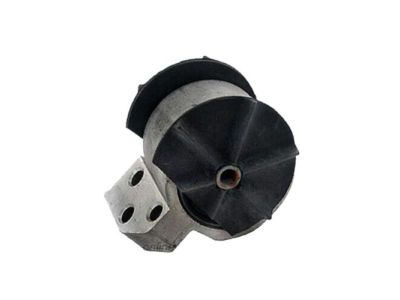

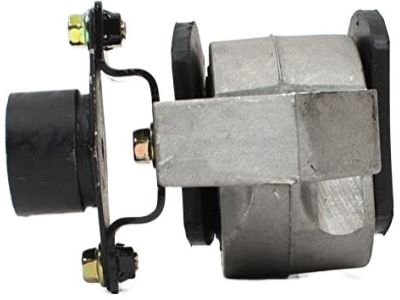

Hyundai 21810-25120 Engine Mounting Bracket Assembly

You can Select Your Vehicle to check if 21810-25120 fits your vehicle.

Start by engaging the parking brake then apply the rear wheel chocks, jointly lift the front side of the truck on supporter jack stands. Check rubber on each mount for cracks and hardness and the condition of the interface between the rubber and metal; replace unsuitable mounts. Make sure all mount fasteners are tight via the help of a torque wrench. Closely check for wear by trying to pull apart on the mount or have an assistant turn the engine/transaxle and look for more than a couple millimeters of free play, in which case worn parts should be installed. For the left-hand mount, remove the negative battery terminal, and with the help of the jack or an engine support bar, suspend the engine. Disconnect the left-hand engine mount by taking off its nuts, screws, and washers, observing the position of spacers and examine all the pieces for signs of wear or damage, after which reinstall the mount bracket assembly and tighten all bolts. Regarding the right-hand mount, then engage the parking brake, elevate the front portion of the lorry, and then deflate the right-hand front wheel as well as the splash guard for access. Jack up the transaxle and remove the mount to inspect the rubber for wear; thereafter, reinstall the mount, and secure every part with appropriate force. For the front mount, lift the car and if necessary unbolt the splash guard, unbolt and or unbolt the roll rod or mount holding it in place depending on your make and model of car check for wear on the afore mentioned pieces and replace them if necessary before reinstalling. For the rear mount: jack up the vehicle and then take out the through bolt as well as the retaining bolts; check for wear and then reinsert the bolt. For the stabilizing rod in the manual transaxle models, locate the lowest point for easy application and then safely remove it, inspect it for any signs of wear and after which safely hinge it back in. Lastly, on completion of the tightening of the parts, lower the car back to the ground.
